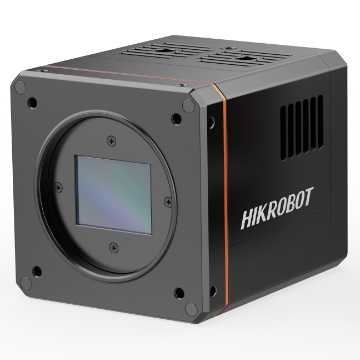

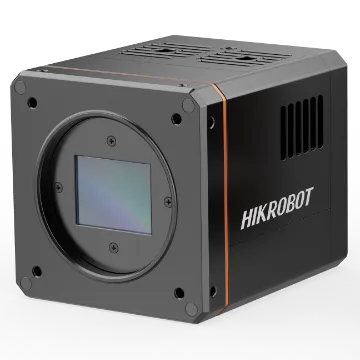

Area Scan Camera, 21MP, GSPRINT4521, XoFLink, 100Gbps, Mono, M58-mount, with fan
Resolution of 5120 × 4096, pixel size of 4.5 μm.
- Resolution of 5120 × 4096 with 4.5 µm pixels.
- A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality.
- Binning and multi-group LSC Sequencer polling.
- Data transmission via two 50 Gbps fibre ports.
- M58 mount; adapts to F-mount lenses via adapter ring.
Camera Solutions
Area Scan Camera, 21MP, GSPRINT4521, XoFLink, 100Gbps, Mono, M58-mount, with fan is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH210-90Q2M-M58S-NF. Key data: resolution 5120 × 4096, sensor type CMOS, global shutter, max frame rate 541 fps @ 5120 × 4096 Mono 8, data interface QSFP+ × 2. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality. Binning and multi-group LSC Sequencer polling. Data transmission via two 50 Gbps fibre ports. M58 mount; adapts to F-mount lenses via adapter ring.
Product Highlights
Resolution of 5120 × 4096 with 4.5 µm pixels. — A global-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality. — Binning and multi-group LSC Sequencer polling. — Data transmission via two 50 Gbps fibre ports. — M58 mount; adapts to F-mount lenses via adapter ring.
Specifications
| Product Model | MV-CH210-90Q2M-M58S-NF |
|---|---|
| Type | Area Scan Camera, 21MP, GSPRINT4521, XoFLink, 100Gbps, Mono, M58-mount, with fan |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Gpixel Gsprint4521 |
| Pixel Size | 4.5 μm × 4.5 μm |
| Sensor Size | 23.04 mm × 18.43 mm |
| Resolution | 5120 × 4096 |
| Max Frame Rate | 541 fps @ 5120 × 4096 Mono 8 |
| Dynamic Range | 65 dB |
| SNR | 43 dB |
| Gain | 1.0 x, 2.0 x, 4.0 x |
| Exposure Time | 1 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8 |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 ×2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 ×2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | QSFP+ × 2 |

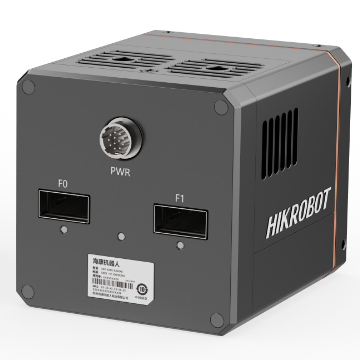

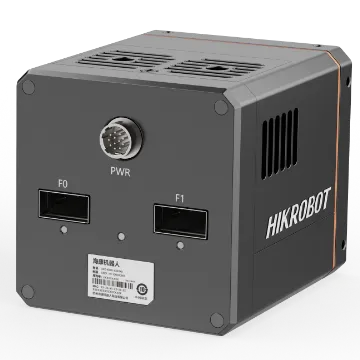

| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1. |
| Power Supply | 24 VDC |
| Lens Mount | M58*0.75 |
| Dimension | 84 mm × 84 mm × 100 mm (3.3" × 3.3" × 3.9") |
| Weight | Approx. 1153 g (2.5 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Compatibility | XoFLink protocol, GenlCam |
| Certification | RoHS, CE, KC |
| Power Consumption 2 | Typ. 33 W @ 24 VDC |
