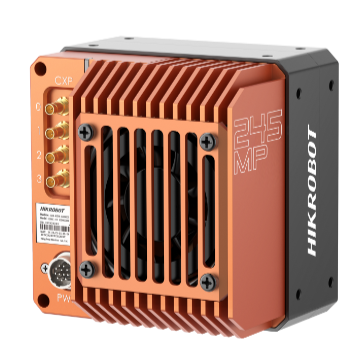

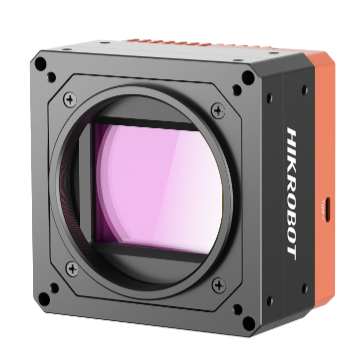

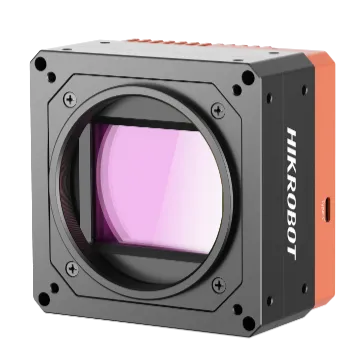

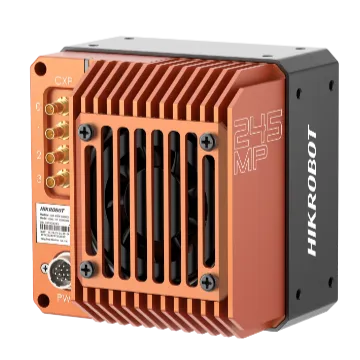

Area Scan Camera, 245MP, CoaXPress, IMX811, color, M72-mount, TEC with fan
Resolution of 19200 × 12800, pixel size of 2.81 µm × 2.81 µm.
- Resolution of 19200 × 12800 with 2.81 µm × 2.81 µm pixels.
- A rolling-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality.
- FFC and TEC mode supported.
- Exposure modes Off, Once, and Continuous; durations up to 60 seconds.
- 16-bit ADC output delivers high-precision sampling and wide dynamic range.
- Transmits data over a CXP-12 interface.
- Works with the CoaXPress protocol and the GenICam standard.
Camera Solutions
Area Scan Camera, 245MP, CoaXPress, IMX811, color, M72-mount, TEC with fan is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH2450-10YC-M72-TF. Key data: resolution 19200 × 12800, sensor type CMOS, rolling shutter, max frame rate 12.4 fps @ 19200 × 12800 Bayer RG 8, data interface CoaXPress with HD-BNC interface. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
A rolling-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality. FFC and TEC mode supported. Exposure modes Off, Once, and Continuous; durations up to 60 seconds. 16-bit ADC output delivers high-precision sampling and wide dynamic range. Transmits data over a CXP-12 interface. Works with the CoaXPress protocol and the GenICam standard.
Product Highlights
Resolution of 19200 × 12800 with 2.81 µm × 2.81 µm pixels. — A rolling-shutter CMOS sensor delivers wide dynamic range, strong SNR, and high image quality. — FFC and TEC mode supported. — Exposure modes Off, Once, and Continuous; durations up to 60 seconds. — 16-bit ADC output delivers high-precision sampling and wide dynamic range. — Transmits data over a CXP-12 interface. — Works with the CoaXPress protocol and the GenICam standard.
Specifications
| Product Model | MV-CH2450-10YC-M72-TF |
|---|---|
| Type | Area Scan Camera, 245MP, CoaXPress, IMX811, color, M72-mount, TEC with fan |
| Sensor Type | CMOS, rolling shutter |
| Sensor Model | Sony® IMX811 |
| Pixel Size | 2.81 μm × 2.81 μm |
| Sensor Size | 64.84 mm |
| Resolution | 19200 × 12800 |
| Max Frame Rate | 12.4 fps @ 19200 × 12800 Bayer RG 8 |
| Dynamic Range | 71.8 dB |
| SNR | 44.2 dB |
| Gain | 0 dB to 24 dB |
| Exposure Time | 98 μs to 60 sec |
| Exposure Mode | Off/Once/Continuous exposure mode, supports Rolling Shutter and Global Reset |
| Pixel Format | Mono 8/10/12/16 Bayer RG 8/10/12/16 RGB 8 |
| Mono Color | Color |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal reverse image output |
| Data Interface | CoaXPress with HD-BNC interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1 |
| Power Supply | 24 VDC |
| Lens Mount | M72*0.75, flange back length 19.55 mm |
| Dimension | 100 mm × 100 mm × 82 mm (3.9" × 3.9" × 3.2") |
| Weight | Approx. 1216.9 g (2.7 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with CoaXPress Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Camera with TEC non-cooling: Typ. 20.6 W @ 24 VDC Camera with TEC cooling: Typ. 33.2 W @ 24 VDC |
