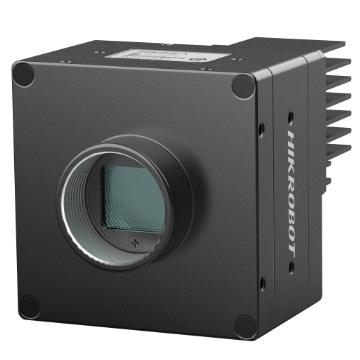

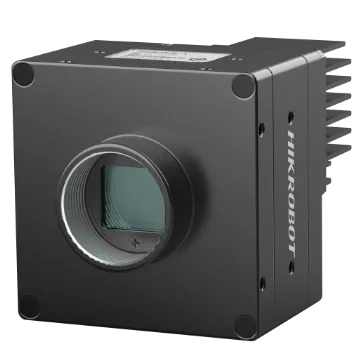

Area Scan Camera, 25MP, CXP-12, GMAX0505, Mono, V2, C-mount
Resolution of 5120 × 5120, pixel size of 2.5 µm × 2.5 µm.
- Resolution of 5120 × 5120 with 2.5 µm × 2.5 µm pixels.
- A global-shutter CMOS sensor delivers wide dynamic range and high image quality.
- Transmits data over a CXP-12 interface.
- Works with the CoaXPress protocol, the GenICam standard, and compatible third-party software.
Camera Solutions
Area Scan Camera, 25MP, CXP-12, GMAX0505, Mono, V2, C-mount is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH250-90YM-C-NN. Key data: resolution 5120 × 5120, sensor type CMOS, global shutter, max frame rate 150 fps @ 5120 × 5120 Mono 8, data interface CoaXPress with micro-BNC interface. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 25MP, GMAX0505, CXP-6, Mono, C-mount, without fan (MV-CH250-90XM-C-NN)
- Area Scan Camera, 25MP, GMAX0505, 2 link CXP-12, Mono (MV-CH250-90Y2M-C-NF)
- Area Scan Camera, 25MP, CXP-12, GMAX0505, Color, V2, C-mount (MV-CH250-90YC-C-NN)
- Area Scan Camera, 25MP, CXP-12, GMAX0505, Color, V2, M58-mount (MV-CH250-90YC-M58S-NN)
- Area Scan Camera, 25MP, CXP-12, GMAX0505, Mono, V2, M58-mount (MV-CH250-90YM-M58S-NN)
- Area Scan Camera, 25MP, CXP-12, GMAX0505, NIR, V2, C-mount (MV-CH250-90YN-C-NN)
- Area Scan Camera, 25MP, 10GigE, Color, C-mount, with fan (MV-CH250-92TC-C-NF V2)
- Area Scan Camera, 25MP, 10GigE, Mono, C-mount, with fan (MV-CH250-92TM-C-NF V2)
Description
A global-shutter CMOS sensor delivers wide dynamic range and high image quality. Transmits data over a CXP-12 interface. Works with the CoaXPress protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Resolution of 5120 × 5120 with 2.5 µm × 2.5 µm pixels. — A global-shutter CMOS sensor delivers wide dynamic range and high image quality. — Transmits data over a CXP-12 interface. — Works with the CoaXPress protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CH250-90YM-C-NN |
|---|---|
| Type | Area Scan Camera, 25MP, CXP-12, GMAX0505, Mono, V2, C-mount |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Gpixel GMAX0505 |
| Pixel Size | 2.5 μm × 2.5 μm |
| Sensor Size | 1.1" |
| Resolution | 5120 × 5120 |
| Max Frame Rate | 150 fps @ 5120 × 5120 Mono 8 |
| Dynamic Range | 63 dB |
| SNR | 36 dB |
| Gain | 2.5 × |
| Exposure Time | UltraShort exposure mode: 3 μs to 8 μs Standard exposure mode: 10 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/12 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |

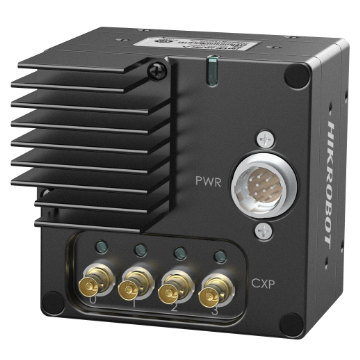

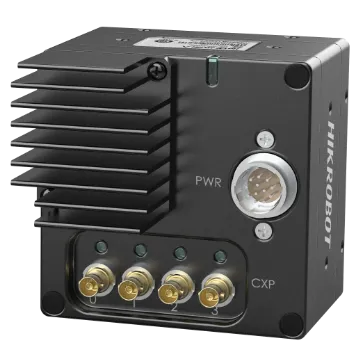

| Data Interface | CoaXPress with micro-BNC interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power Supply | 12 VDC to 24 VDC, CXP-0 and CXP-1 support PoCXP |
| Lens Mount | C-mount |
| Dimension | 60 mm × 60 mm × 59 mm (2.4" × 2.4" × 2.3") (cooling fins are optional) |
| Weight | C-mount without fan, approx. 280 g (0.6 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with CoaXPress Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC, UL |
| Mono | Mono |
| Power Consumption 2 | Typ. 9.9 W @ 12 VDC |
