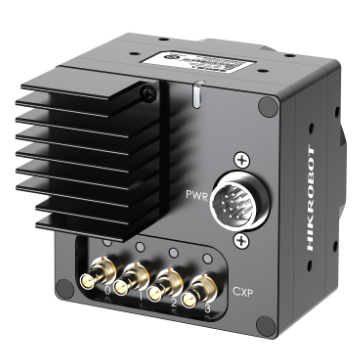

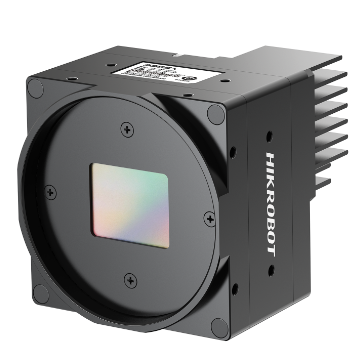

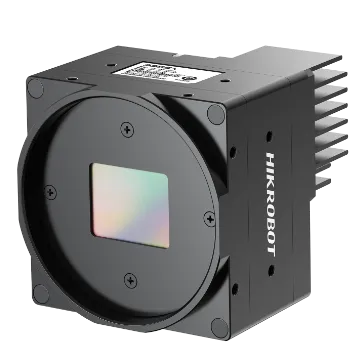

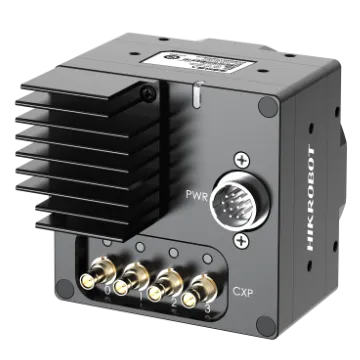

Area Scan Camera, 25MP, CXP-12, GMAX0505, Mono, V2, M58-mount

Name: Area Scan Camera, 25MP, CXP-12, GMAX0505, Mono, V2, M58-mount
Brand: HIKROBOT
SKU: MV-CH250-90YM-M58S-NN

Resolution of 5120 × 5120, pixel size of 2.5 µm × 2.5 µm.

Send inquiry

Download datasheet (PDF)

Highlights

Resolution of 5120 × 5120 with 2.5 µm × 2.5 µm pixels.
A global-shutter CMOS sensor delivers wide dynamic range and high image quality.
Transmits data over a CXP-12 interface.
Works with the CoaXPress protocol, the GenICam standard, and compatible third-party software.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-CH250-90YM-M58S-NN Category: Area & Line Scan Cameras

Area Scan Camera, 25MP, CXP-12, GMAX0505, Mono, V2, M58-mount is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH250-90YM-M58S-NN. Key data: resolution 5120 × 5120, sensor type CMOS, global shutter, max frame rate 150 fps @ 5120 × 5120 Mono 8, data interface CoaXPress with micro-BNC interface. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

A global-shutter CMOS sensor delivers wide dynamic range and high image quality. Transmits data over a CXP-12 interface. Works with the CoaXPress protocol, the GenICam standard, and compatible third-party software.

Area Scan Camera, 25MP, CXP-12, GMAX0505, Mono, V2, M58-mount (MV-CH250-90YM-M58S-NN) at a glance: 5120 × 5120 resolution, Gpixel GMAX0505 sensor, 1.1" sensor format, 2.5 μm × 2.5 μm pixel size, up to 150 fps, CoaXPress with micro-BNC interface interface, M58*0.75, flange back length 11.48 mm lens mount and 60 mm × 60 mm × 59 mm (2.4" × 2.4" × 2.3") (cooling fins housing. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Resolution of 5120 × 5120 with 2.5 µm × 2.5 µm pixels. — A global-shutter CMOS sensor delivers wide dynamic range and high image quality. — Transmits data over a CXP-12 interface. — Works with the CoaXPress protocol, the GenICam standard, and compatible third-party software.

Specifications

Product Model	MV-CH250-90YM-M58S-NN
Type	Area Scan Camera, 25MP, CXP-12, GMAX0505, Mono, V2, M58-mount
Sensor Type	CMOS, global shutter
Sensor Model	Gpixel GMAX0505
Pixel Size	2.5 μm × 2.5 μm
Sensor Size	1.1"
Resolution	5120 × 5120
Max Frame Rate	150 fps @ 5120 × 5120 Mono 8
Dynamic Range	63 dB
SNR	36 dB
Gain	2.5 ×
Exposure Time	UltraShort exposure mode: 3 μs to 8 μs Standard exposure mode: 10 μs to 10 sec
Exposure Mode	Off/Once/Continuous exposure mode
Pixel Format	Mono 8/10/12
Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse Image	Supports horizontal and vertical reverse image output
Data Interface	CoaXPress with micro-BNC interface
Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Power Supply	12 VDC to 24 VDC, CXP-0 and CXP-1 support PoCXP
Lens Mount	M58*0.75, flange back length 11.48 mm
Dimension	60 mm × 60 mm × 59 mm (2.4" × 2.4" × 2.3") (cooling fins are optional)
Weight	M58-mount without fan, approx. 285 g (0.6 lb.)
Ingress Protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Client Software	MVS or third-party software meeting with CoaXPress Protocol
Operating System	32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
Compatibility	CoaXPress, GenlCam
Certification	CE, RoHS, KC, UL
Mono	Mono
Power Consumption 2	Typ. 9.9 W @ 12 VDC
