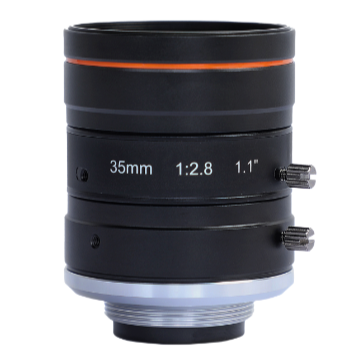

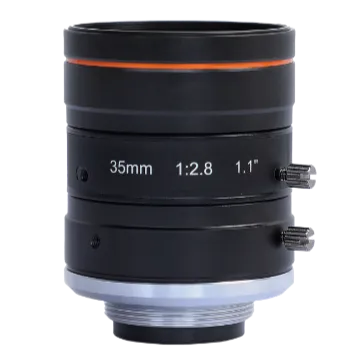

C-Mount Lens, 35mm, F2.8, 1.1″, 12MP
High resolution, high definition of the whole image
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Low distortion and high relative illumination. Maximum image circle of 1.1″. Ultra-short working distance with stable optical properties across object distances.
Product Highlights
High resolution with consistent full-image sharpness. — Low distortion and high relative illumination. — Maximum image circle of 1.1″. — Ultra-short working distance with stable optical properties across object distances.
Specifications
| Product Model | MVL-KF3528M-12MP |
|---|---|
| Type | C-Mount Lens, 35mm, F2.8, 1.1″, 12MP |
| Focal Length | 35 mm |
| F Number | F2.8 to F16 |
| Image Size | Ø17.6 mm |
| Minimum Object Distance | 0.2 m |
| Field Of View | D (17.52mm): 26.7° H (14.14mm): 21.4° V (10.35mm): 15.9° |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M35.5 × 0.5 |
| Mount | C-mount |
| Flange Back Length | 17.526 mm |
| Dimension | Ø38.6 mm × 53.61 mm (Ø1.5" × 2.1") |
| Weight | 119 g (0.3 lb.) |
| Temperature | –10°C to 50°C (14°F to 122°F) |
| Certification | RoHS 2.0 |
| Optical Distortion | –0.21% |
