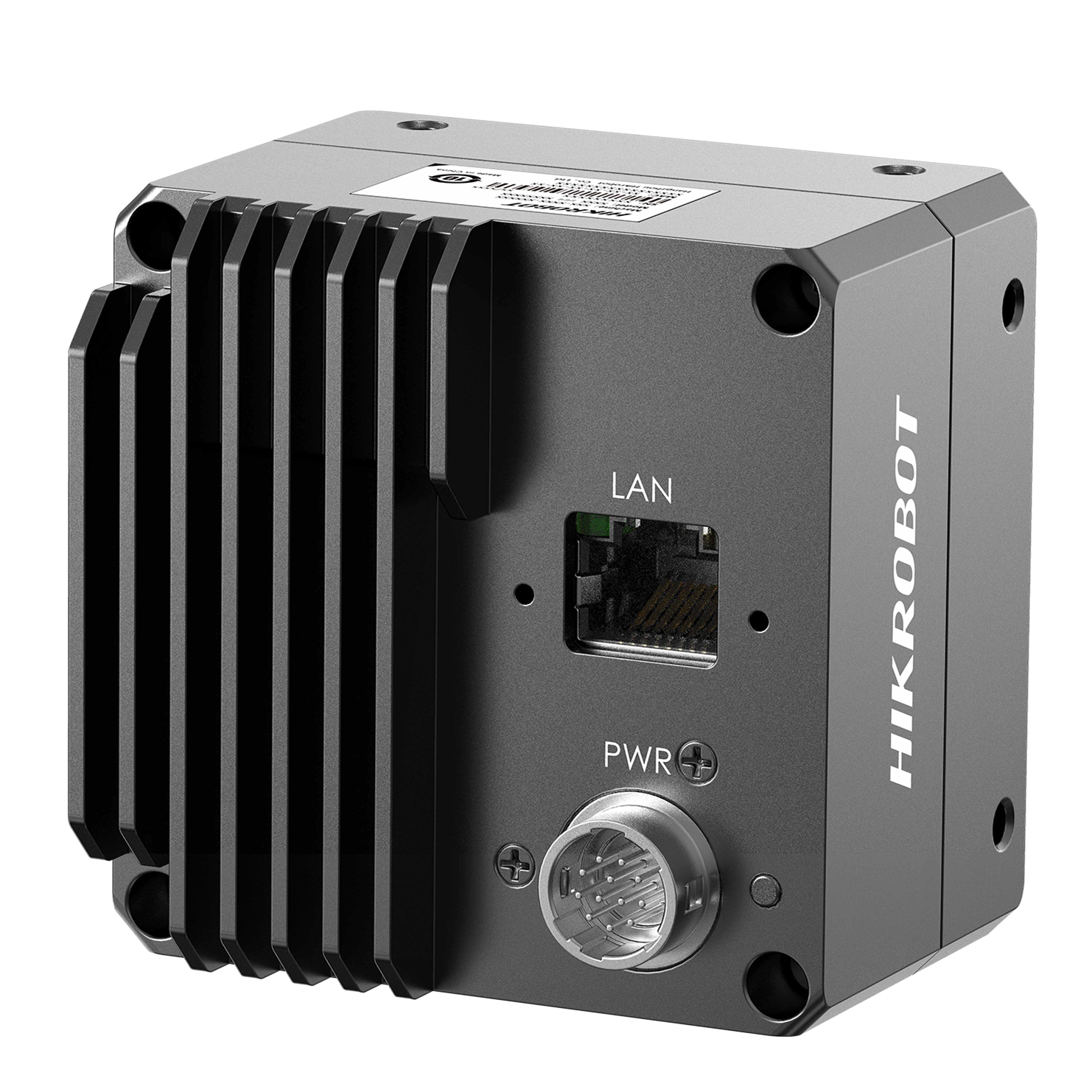

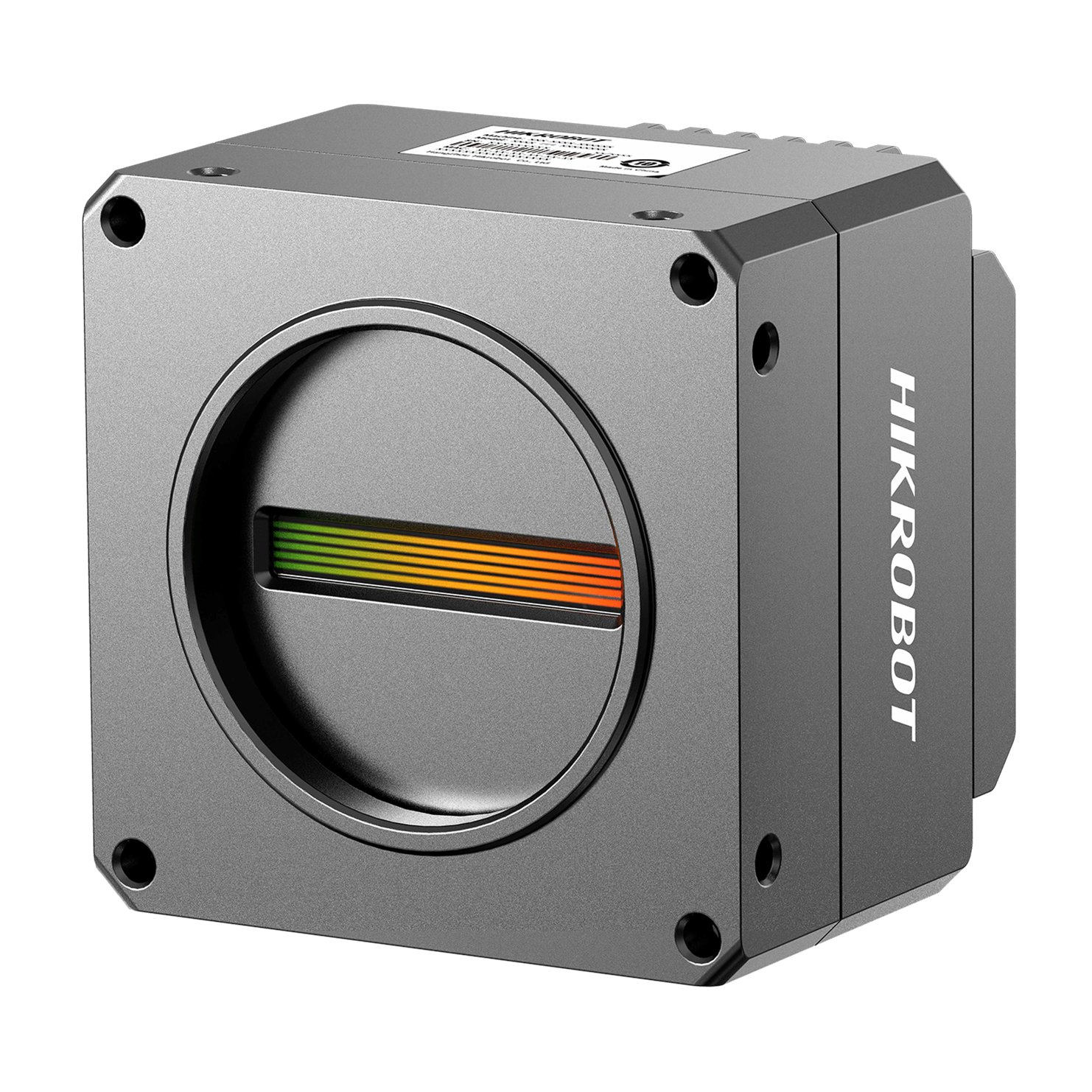

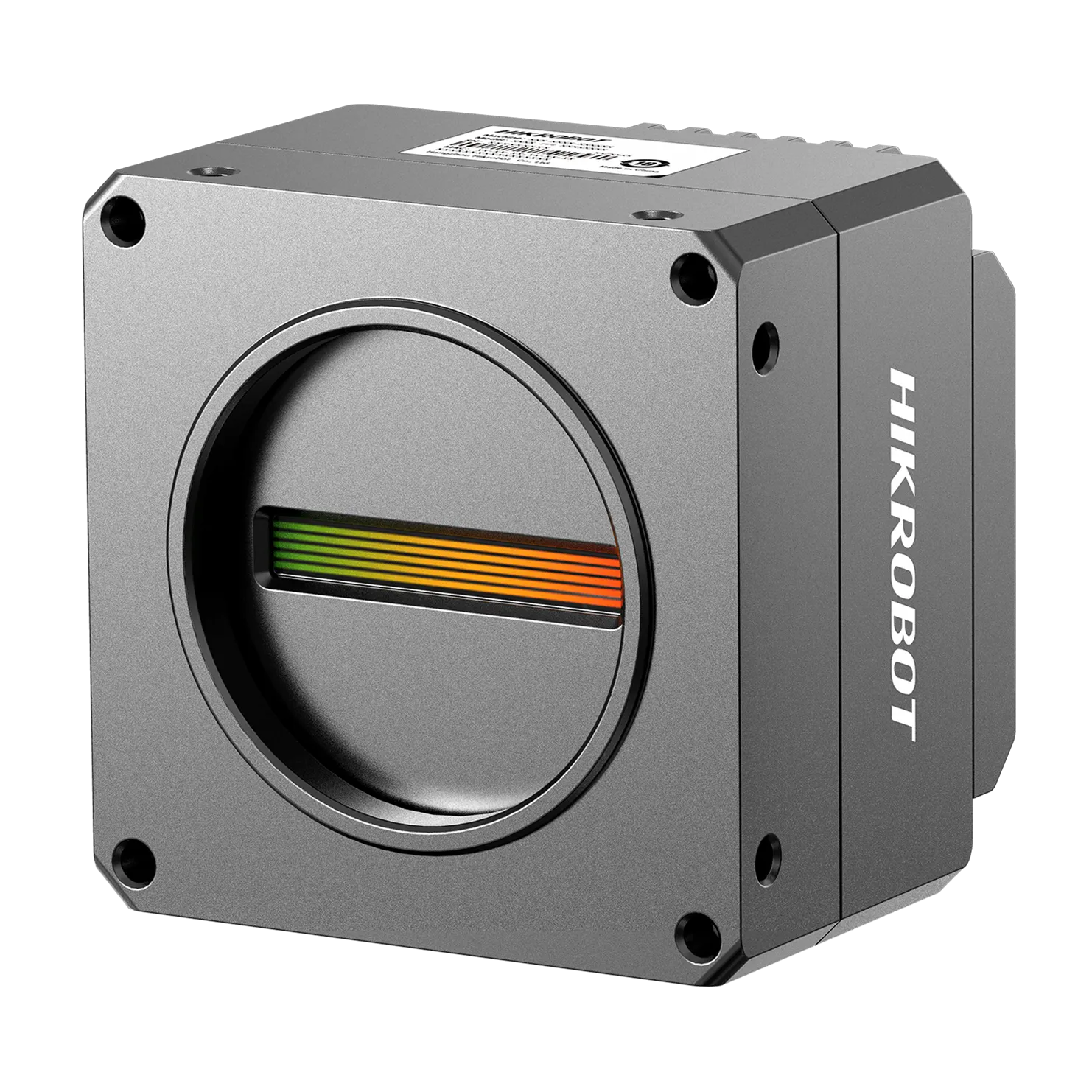

Line Scan Camera, 4k 7μm, 2.5G, color
Adopts 2.5 GigE interface to transmit data, and supports max. line rate of 75.3 kHz and peak value of 100 kHz.
- 2.5 GigE interface with a maximum line rate of 75.3 kHz and peak of 100 kHz.
- RGB true colour image output.
- ISP functions with manual gamma correction, FFC, LUT, and black-level adjustment.
- Bi-directional I/O hardware design.
- Compact design for flexible installation.
- Works with the GigE Vision V2.0 protocol and the GenICam standard.
Camera Solutions
Line Scan Camera, 4k 7μm, 2.5G, color is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CL044-91NC. Key data: resolution 4096 ×3, sensor type CMOS. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
RGB true colour image output. ISP functions with manual gamma correction, FFC, LUT, and black-level adjustment. Bi-directional I/O hardware design. Compact design for flexible installation. Works with the GigE Vision V2.0 protocol and the GenICam standard.
Product Highlights
2.5 GigE interface with a maximum line rate of 75.3 kHz and peak of 100 kHz. — RGB true colour image output. — ISP functions with manual gamma correction, FFC, LUT, and black-level adjustment. — Bi-directional I/O hardware design. — Compact design for flexible installation. — Works with the GigE Vision V2.0 protocol and the GenICam standard.
Specifications
| Product Model | MV-CL044-91NC |
|---|---|
| Type | Line Scan Camera, 4k 7μm, 2.5G, color |
| Sensor Type | CMOS |
| Pixel Size | 7 μm × 7 μm |
| Resolution | 4096 ×3 |
| Dynamic Range | 61.3 dB |
| SNR | 40.3 dB |
| Gain | 1.0 ×, 2.0 ×, 3.0 ×, 4.0 × |
| Exposure Time | 1 μs to 10 ms |
| Exposure Mode | Off/Once/Continuous exposure mode, and supports trigger-width exposure |
| Pixel Format | RGB 8, BGR 8 Bayer RG 8/10 Mono 8 |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Not supported |
| Data Interface | 2.5 Gigabit Ethernet (2500 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) and Fast Ethernet (100 Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O: bi-directional configurable I/O × 4 (Line 0/1/3/4) and support single-ended/differential I/O signal |
| Power Supply | 12 VDC to 24 VDC, supports PoE |
| Lens Mount | M42*1.0, flange back length 12 mm Connecting to F-mount, C-mount, and other lenses via adapter ring |
| Dimension | 62 mm × 62 mm × 46.1 mm (2.4" × 2.4" × 1.8") |
| Weight | Approx. 260 g (0.6 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 55 °C (–4 °F to 131 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client Software | MVS or the third-party software meeting with GigE Vision protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11 and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Mono | Color |
| Power Consumption 2 | Typ. 7.2 W @ 12 VDC |
| Max Line Rate | Full resolution: 75.3 kHz @ Mono 8/Bayer RG 8, 25.1 kHz @ RGB 8/BGR 8, 37.7 kHz @ Bayer RG 10 Line rate after ROI: Max. 100 kHz (3080 P and below) |
| Trigger Mode | External trigger, internal trigger |
| External Trigger Mode | Line trigger, frame trigger, line + frame trigger |
| Image Mode | Supports 1-Line |
