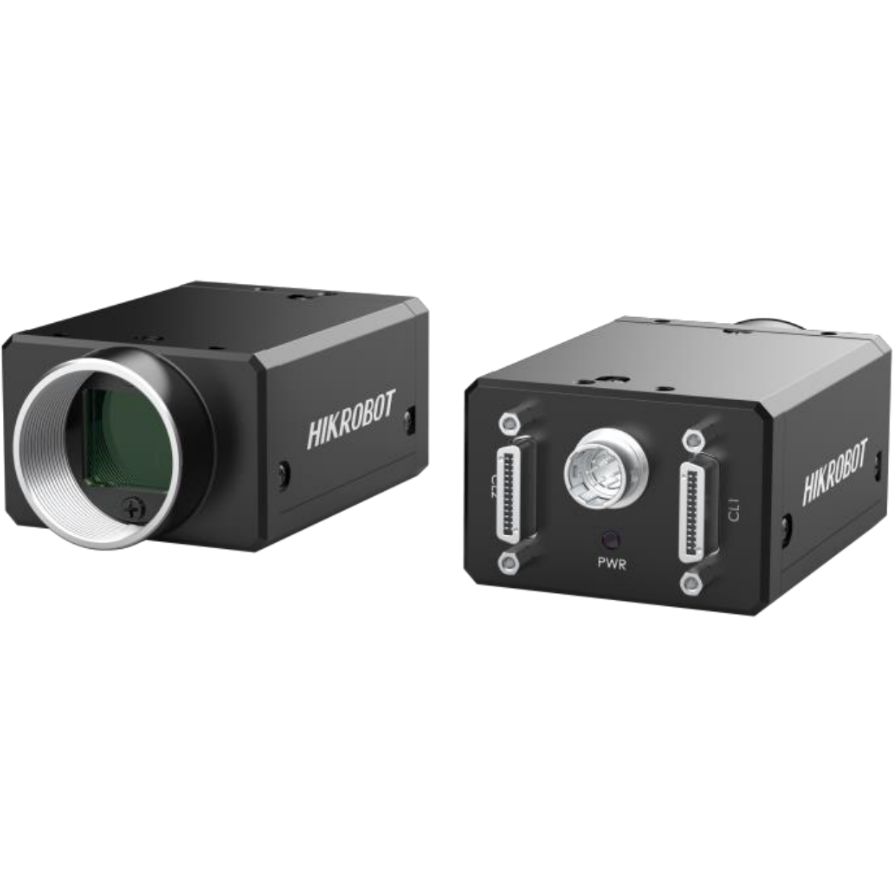

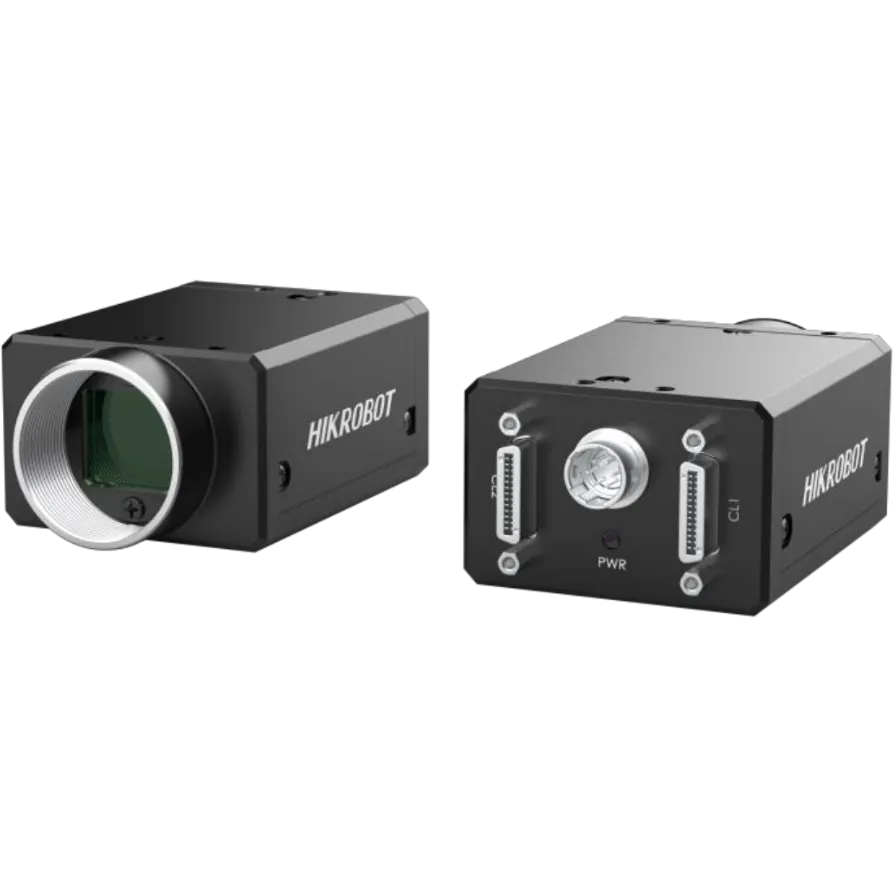

Area Scan Camera, 4MP, Camera Link
Supports auto or manual adjustment of gain, exposure time, Gamma correction, LUT, etc.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Supports custom ROI and horizontal/vertical image flipping. Supports hardware trigger, software trigger, free-run, and Camera Link frame-grabber triggering. Camera Link Base, Medium, Full, and 80-bit configuration modes. Works with the Camera Link V2.0 protocol and the GenICam standard.
Product Highlights
Offers auto or manual gain, exposure, gamma correction, and LUT. — Supports custom ROI and horizontal/vertical image flipping. — Supports hardware trigger, software trigger, free-run, and Camera Link frame-grabber triggering. — Camera Link Base, Medium, Full, and 80-bit configuration modes. — Works with the Camera Link V2.0 protocol and the GenICam standard.
Specifications
| Product Model | MV-CH040-A0CM |
|---|---|
| Type | Area Scan Camera, 4MP, Camera Link |
| Sensor Type | CMOS, global shutter |
| Pixel Size | 5.5 μm × 5.5 μm |
| Sensor Size | 1" |
| Resolution | 2048 × 2048 |
| Max Frame Rate | 180 fps @2040 × 2048 Mono 8 |
| Dynamic Range | 59.7 dB |
| SNR | 39.6 dB |
| Gain | 0 dB to 12 dB |
| Exposure Time | 28 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/12 |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 1 × 2, 2 × 1, 2 × 2 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Camera Link with SDR Connector |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), and bi-directional non-isolated I/O × 1 (Line 2). Camera Link interface provides I/O (CC1/CC2/CC3/CC4) |
| Power Supply | 9 VDC to 24 VDC, supports PoCL |
| Lens Mount | C-mount |
| Dimension | 44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: -10 °C to 50 °C (14 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 95% RH, non-condensing |
| Client Software | MVS or frame grabber software meeting with GenlCam Protocol |
| Operating System | 32/64-bit Windows XP/7/10, 64-bit Windows 11 |
| Compatibility | Camera Link V2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 3.6 W@12 VDC |
| Configuration Mode | Base, Medium, Full, 80-bit |
| Tap Geometry | 1X2_1Y, 1X4_1Y, 1X8_1Y, 1X10_1Y |
| Tap Number | 2 Taps, 4 Taps, 8 Taps, 10 Taps |
| Pixel Clock | 40 MHz, 66 MHz, 80 MHz, 85 MHz |
