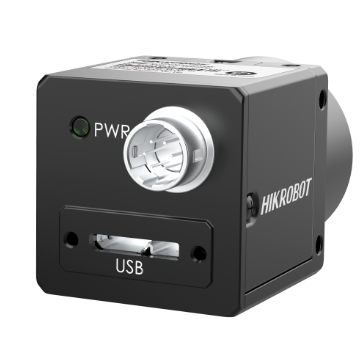

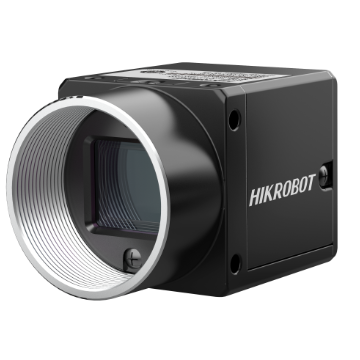

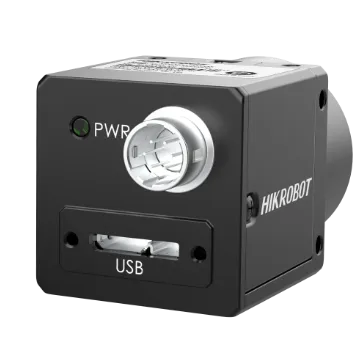

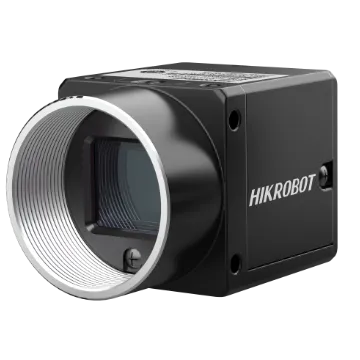

Area Scan Camera, 4MP, USB3.0, 2nd Gen, Color.
Adopts global shutter CMOS sensor providing high signal-to-noise ratio, wide dynamic range and high quality images.
- A global-shutter CMOS sensor delivers high SNR, wide dynamic range, and high image quality.
- Resolution of 2048 × 2048 with 5.5 µm × 5.5 µm pixels.
- Supports hardware trigger, software trigger, and free-run modes.
- Compact body with panel mounting holes on four sides for flexible setup.
- Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Camera Solutions
Area Scan Camera, 4MP, USB3.0, 2nd Gen, Color. is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CS040-A0UC. Key data: resolution 2048 × 2048, sensor type CMOS, global shutter, max frame rate 90.1 fps @ 2048 × 2048 Bayer GB 8, data interface USB 3.0, compatible with USB 2.0. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Resolution of 2048 × 2048 with 5.5 µm × 5.5 µm pixels. Supports hardware trigger, software trigger, and free-run modes. Compact body with panel mounting holes on four sides for flexible setup. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
A global-shutter CMOS sensor delivers high SNR, wide dynamic range, and high image quality. — Resolution of 2048 × 2048 with 5.5 µm × 5.5 µm pixels. — Supports hardware trigger, software trigger, and free-run modes. — Compact body with panel mounting holes on four sides for flexible setup. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CS040-A0UC |
|---|---|
| Type | Area Scan Camera, 4MP, USB3.0, 2nd Gen, Color. |
| Sensor Type | CMOS, global shutter |
| Pixel Size | 5.5 μm × 5.5 μm |
| Sensor Size | 1" |
| Resolution | 2048 × 2048 |
| Max Frame Rate | 90.1 fps @ 2048 × 2048 Bayer GB 8 |
| Dynamic Range | 59.7 dB |
| SNR | 39.6 dB |
| Gain | 0 dB to 12 dB |
| Exposure Time | 30 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/12, Bayer GB 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
| Mono Color | Color |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB 3.0, compatible with USB 2.0 |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports USB 3.0 power supply |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 88 g (0.2 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with USB3 Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 2.4 W @ 5 VDC (USB 3.0 provides power supply) |
