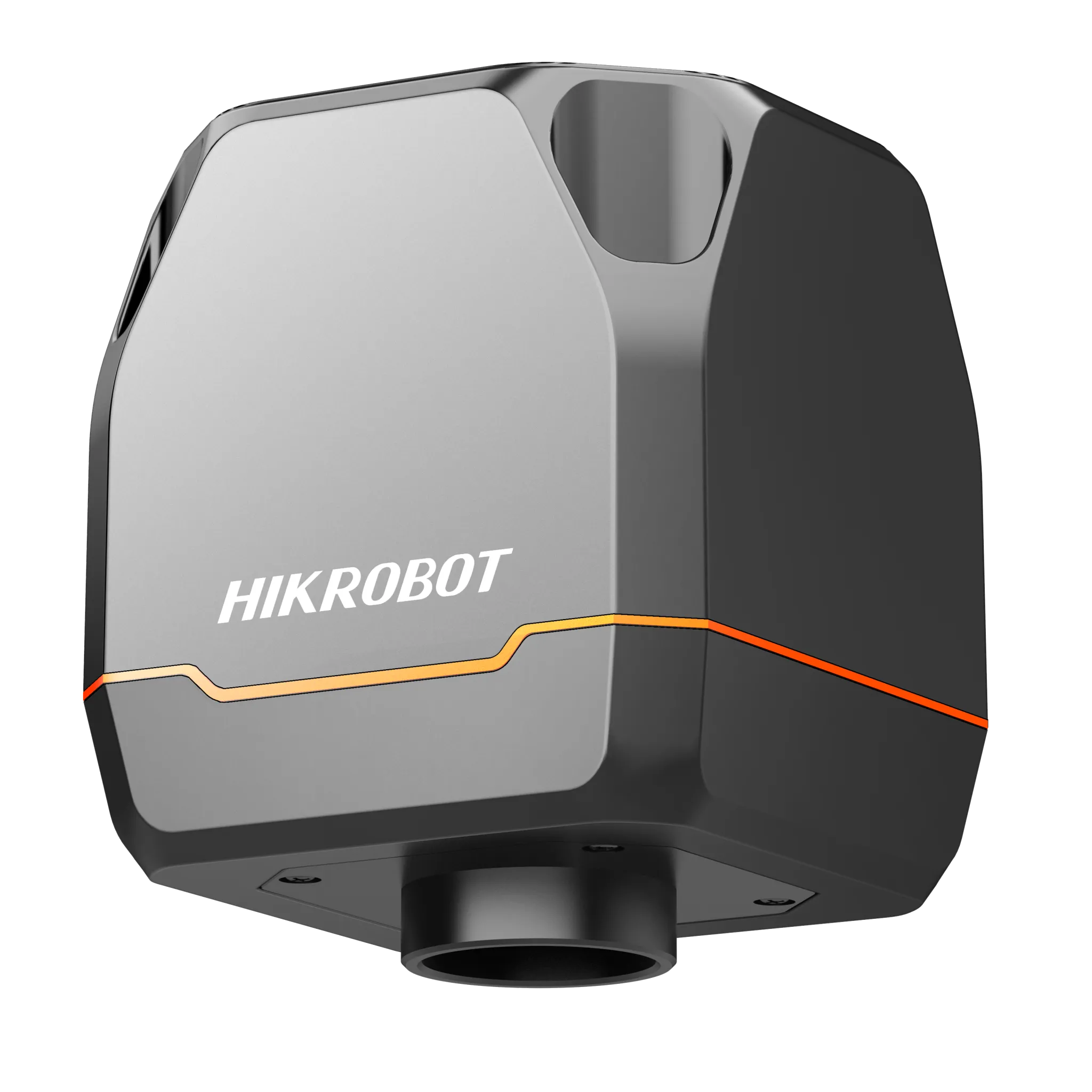

HDMI Camera, 4MP, with Measurement
Supports 4 MP high-quality image and 30 fps frame rate.
- 4 MP high-quality images at 30 fps.

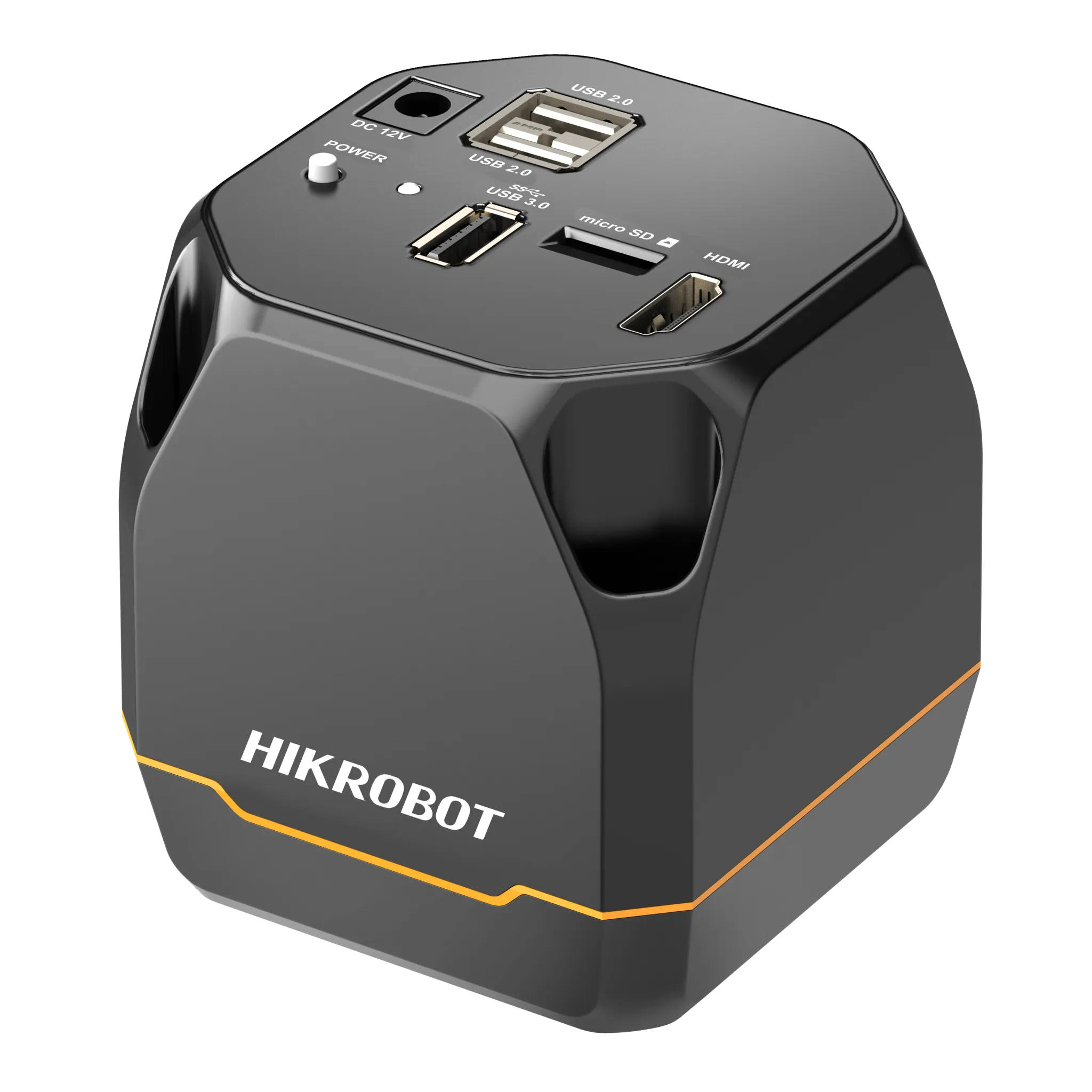

- HDMI interface for direct monitor connection.
- USB interface for connecting a mouse or USB flash drive.
- USB 3.0 interface connects to a PC for client-software operation.
- Supports image storage and image-parameter adjustment.
- Measurement functions with report generation.
Camera Solutions
HDMI Camera, 4MP, with Measurement is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CM3040C-1H. Key data: resolution 2560 × 1440, sensor type CMOS, rolling shutter, max frame rate 30 fps. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
HDMI interface for direct monitor connection. USB interface for connecting a mouse or USB flash drive. USB 3.0 interface connects to a PC for client-software operation. Supports image storage and image-parameter adjustment. Measurement functions with report generation.
Product Highlights
4 MP high-quality images at 30 fps. — HDMI interface for direct monitor connection. — USB interface for connecting a mouse or USB flash drive. — USB 3.0 interface connects to a PC for client-software operation. — Supports image storage and image-parameter adjustment. — Measurement functions with report generation.
Specifications
| Product Model | MV-CM3040C-1H |
|---|---|
| Type | HDMI Camera, 4MP, with Measurement |
| Sensor Type | CMOS, rolling shutter |
| Pixel Size | 2.9 μm × 2.9 μm |
| Sensor Size | 1/1.88" |
| Resolution | 2560 × 1440 |
| Max Frame Rate | 30 fps |
| Gain | 0 dB to 18 dB |
| Exposure Time | 300 μs to 100 ms |
| Exposure Mode | Auto/manual |
| Mono Color | Color |
| Control Interface | USB 2.0 × 2, USB 3.0 × 1, micro SD card interface × 1 |
| Power Supply | 12 VDC to 24 VDC, independent power supply required |
| Lens Mount | C-mount |
| Dimension | 75 mm × 75 mm × 86.9 mm (3.0" × 3.0" × 3.4") |
| Weight | Approx. 430 g (0.9 lb.) |
| Ingress Protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, RoHS |
| Power Consumption 2 | Typ. 3.6 W @ 12 VDC |
| Transmission Interface | HDMI |
| Vision Tool | Image process: White balance, brightness, sharpness, contrast, saturation, digital gain, Gamma correction, digital WDR, noise reduction. Auxiliary functions: Image reverse, cross line, grid line, ruler, scale, image freezing, capture, recording, storage. Measurement: Report export, calibration, point measurement, line measurement, circle measurement, angle measurement, polygon measurement, polyline measurement, curve measurement, line/circle auto measurement. |
