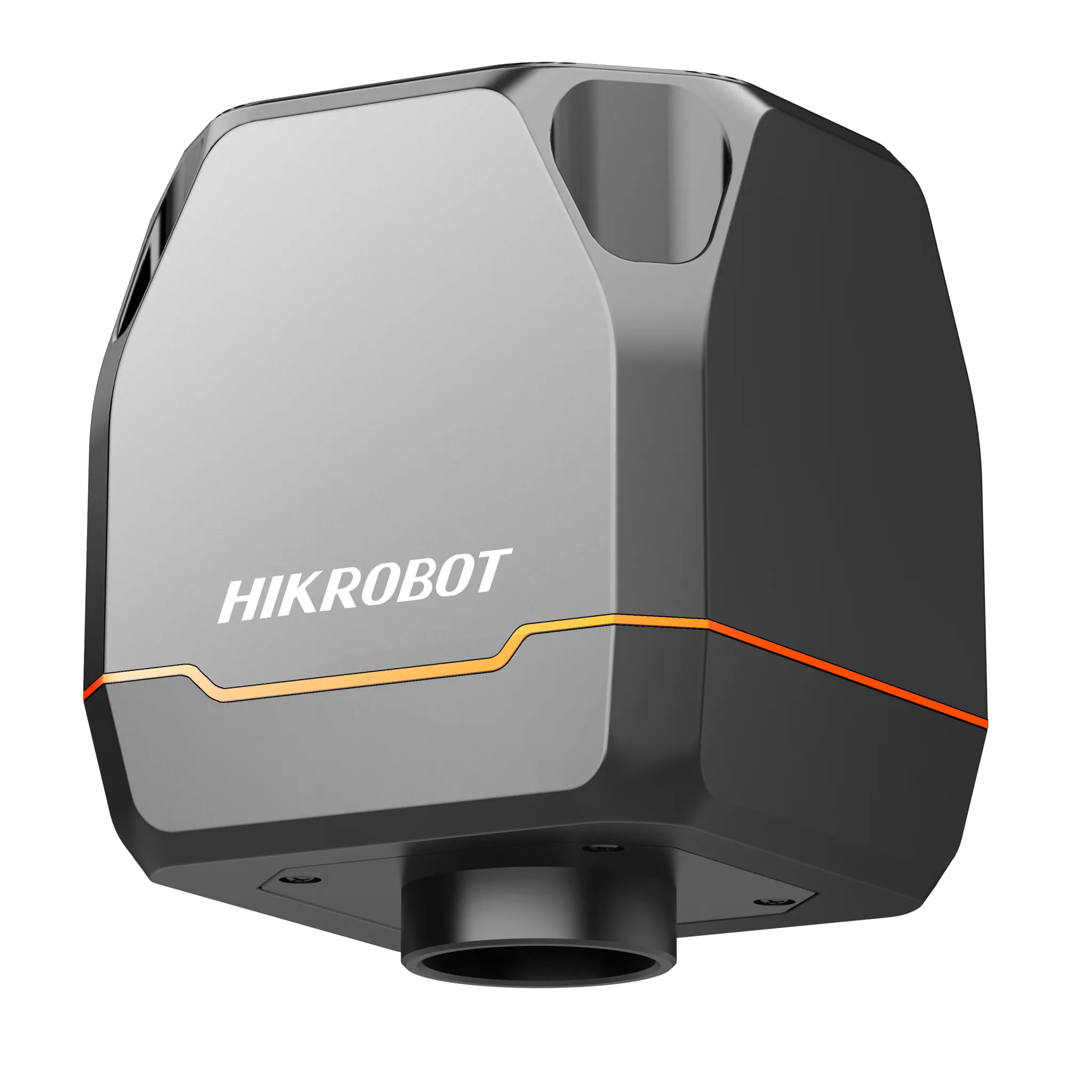

HDMI Camera, 4MP Measurement, with Micro Software Dongle
Supports 4 MP high-quality image and 30 fps frame rate.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
HDMI interface for direct monitor connection. USB interface for connecting a mouse or USB flash drive. USB 3.0 interface connects to a PC for client-software operation. Supports image storage and image-parameter adjustment. Measurement functions with report generation.
Product Highlights
4 MP high-quality images at 30 fps. — HDMI interface for direct monitor connection. — USB interface for connecting a mouse or USB flash drive. — USB 3.0 interface connects to a PC for client-software operation. — Supports image storage and image-parameter adjustment. — Measurement functions with report generation.
Specifications
| Product Model | MV-CM3040C-1H(MSD) |
|---|---|
| Type | HDMI Camera, 4MP Measurement, with Micro Software Dongle |
| Sensor Type | CMOS, rolling shutter |
| Pixel Size | 2.9 μm × 2.9 μm |
| Sensor Size | 1/1.88" |
| Resolution | 2560 × 1440 |
| Max Frame Rate | 30 fps |
| Gain | 0 dB to 18 dB |
| Exposure Time | 300 μs to 100 ms |
| Exposure Mode | Auto/manual |
| Mono Color | Color |

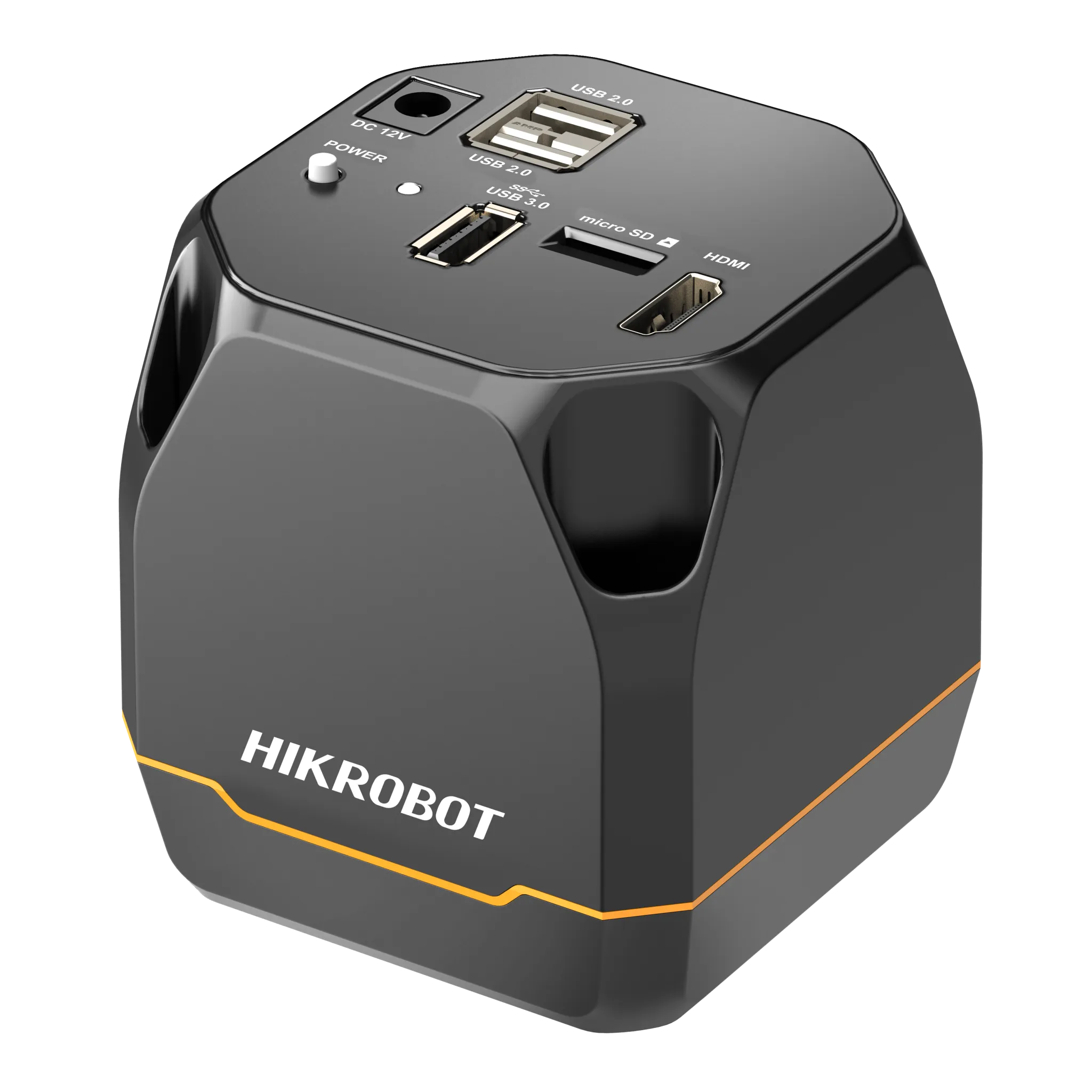

| Control Interface | USB 2.0 × 2, USB 3.0 × 1, micro SD card interface × 1 |
| Power Supply | 12 VDC to 24 VDC, independent power supply required |
| Lens Mount | C-mount |
| Dimension | 75 mm × 75 mm × 86.9 mm (3.0" × 3.0" × 3.4") |
| Weight | Approx. 430 g (0.9 lb.) |
| Ingress Protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, RoHS |
| Power Consumption 2 | Typ. 3.6 W @ 12 VDC |
| Transmission Interface | HDMI |
| Vision Tool | Image process: White balance, brightness, sharpness, contrast, saturation, digital gain, Gamma correction, digital WDR, noise reduction. Auxiliary functions: Image reverse, cross line, grid line, ruler, scale, image freezing, capture, recording, storage. Measurement: Report export, calibration, point measurement, line measurement, circle measurement, angle measurement, polygon measurement, polyline measurement, curve measurement, line/circle auto measurement. |
