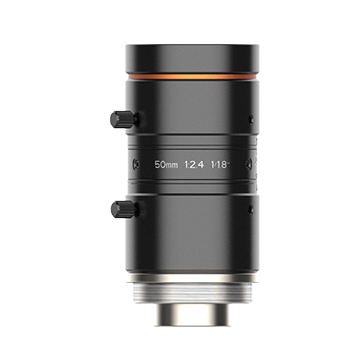

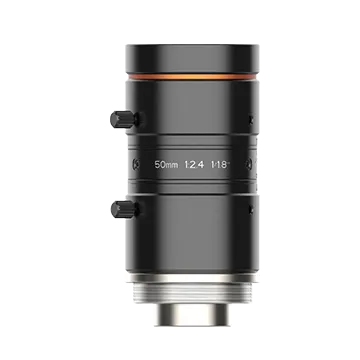

C-Mount Lens, 50mm, F2.4, 1/1.8″, 10MP
Ultra high resolution and consistency of image clarity
Camera Solutions
Beschreibung
Larger aperture, lower distortion, and higher relative illumination. Achromatic optical design improves imaging on colour cameras. Excellent vibration resistance, with optical-axis shift kept within one pixel. Stable performance at both high and low temperatures. Multi-layer broadband coating suits visible and near-infrared applications.
Product Highlights
Ultra-high resolution with consistent image clarity. — Larger aperture, lower distortion, and higher relative illumination. — Achromatic optical design improves imaging on colour cameras. — Excellent vibration resistance, with optical-axis shift kept within one pixel. — Stable performance at both high and low temperatures. — Multi-layer broadband coating suits visible and near-infrared applications.
Specifications
| Product Model | MVL-HF5024M-10MP |
|---|---|
| Type | C-Mount Lens, 50mm, F2.4, 1/1.8″, 10MP |
| Focal Length | 50 mm |
| F Number | F2.4 to F16 |
| Image Size | Ø9 mm (1/1.8") |
| Distortion | 0.03% |
| Minimum Object Distance | 0.3 m |
| Field Of View | D (8.96 mm): 9.10° H (7.38 mm): 7.48° V (4.92 mm): 5.00° |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M27 × 0.5 |
| Mount | C-mount |
| Flange Back Length | 17.526 mm |
| Dimension | Ø29.5 mm × 52 mm (Ø1.2" x 2.0") |
| Weight | 85.9 g (0.2 lb.) |
| Temperature | –10°C to 50°C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
