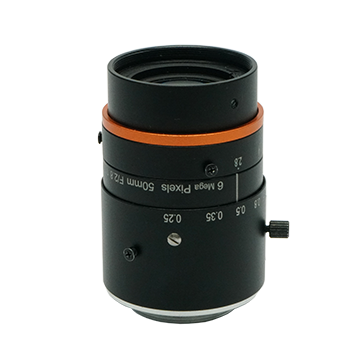

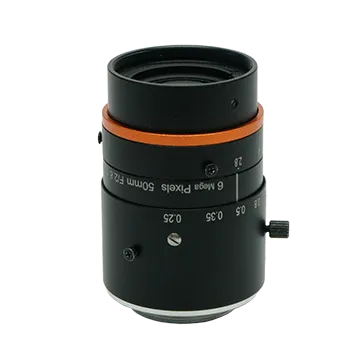

C-Mount Lens, 50mm, F2.8, 1/1.8″, 6MP
High image clarity and consistency
Highlights
- High image clarity and consistency.
- Ultra-low distortion.
- Ultra-high peripheral brightness ratio.
- Good optical performance across various object distances.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
C-Mount Lens, 50mm, F2.8, 1/1.8″, 6MP is a machine vision lens from HIKROBOT, supplied in the DACH region by EQ Vision under article number MVL-HF5028M-6MPE. Key data: focal length 50 mm, f number F2.8 to F16, mount C-mount, image size Ø9 mm (1/1.8''). Typical use is imaging onto industrial camera sensors. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Ultra-low distortion. Ultra-high peripheral brightness ratio. Good optical performance across various object distances.
C-Mount Lens, 50mm, F2.8, 1/1.8″, 6MP (MVL-HF5028M-6MPE) at a glance: 50 mm focal length, F2.8 to F16, Ø9 mm (1/1.8'') image size, C-mount, 0.25 m minimum object distance, M30.5 × 0.5 filter thread and weighs 102 g (0.2 lb.). The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.
Product Highlights
High image clarity and consistency. — Ultra-low distortion. — Ultra-high peripheral brightness ratio. — Good optical performance across various object distances.
Specifications
| Product Model | MVL-HF5028M-6MPE |
|---|---|
| Type | C-Mount Lens, 50mm, F2.8, 1/1.8″, 6MP |
| Focal Length | 50 mm |
| F Number | F2.8 to F16 |
| Image Size | Ø9 mm (1/1.8'') |
| Distortion | 0.03% |
| Minimum Object Distance | 0.25 m |
| Field Of View | D (8.96 mm): 9.72° H (7.38 mm): 7.84° V (4.92 mm): 5.24° |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M30.5 × 0.5 |
| Mount | C-mount |
| Flange Back Length | 17.526 mm |
| Dimension | Ø37 mm × 51.7 mm (Ø1.5" x 2.0") |
| Weight | 102 g (0.2 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
