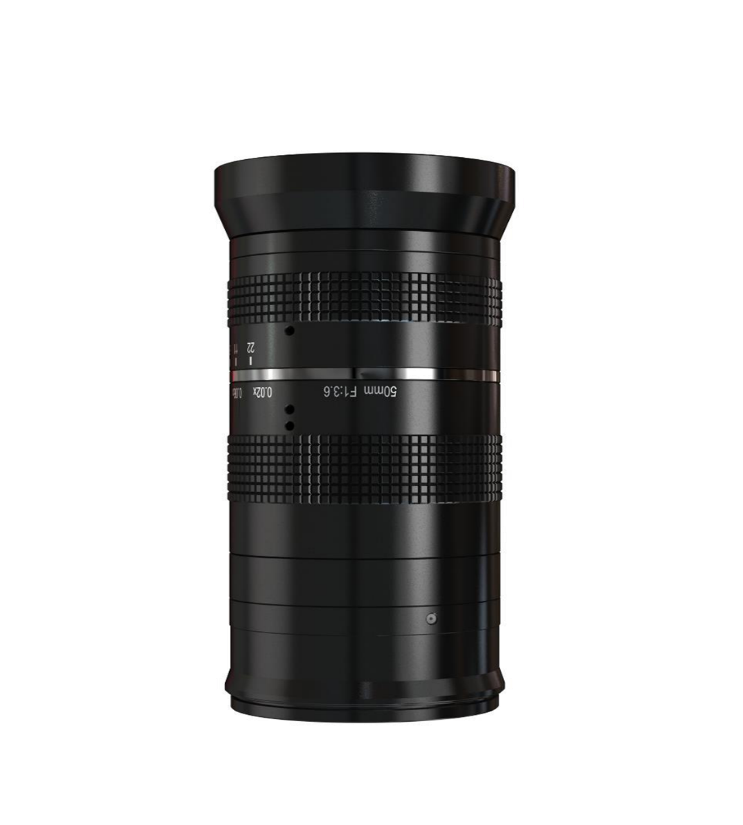

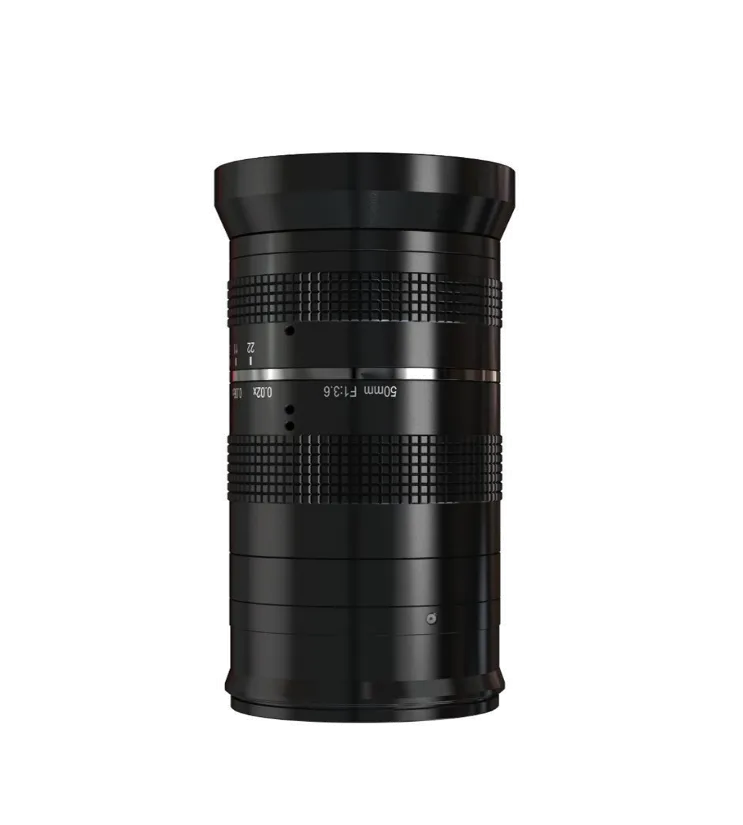

M58-Mount Lens, 50mm, F3.6, Full Frame φ46mm, 65MP
Adopts high-precision lens for 65MP area scan cameras.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Excellent image-clarity consistency and low distortion. Maximum image size Ø46 mm.
Product Highlights
High-precision lens designed for 65 MP area-scan cameras. — Excellent image-clarity consistency and low distortion. — Maximum image size Ø46 mm.
Specifications
| Product Model | MVL-LF5036M-M58-65MP |
|---|---|
| Type | M58-Mount Lens, 50mm, F3.6, Full Frame φ46mm, 65MP |
| Focal Length | 50 mm |
| F Number | F3.6 to F22 |
| Image Size | Ø46 mm |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M62 × P0.75 |
| Mount | M58 × P0.75 |
| Flange Back Length | 11.48 mm |
| Dimension | Ø65 mm × 132.5 mm to 153.2 mm (Ø2.6" × 5.2" to 6.0") |
| Weight | 715.49 g (1.6 lb) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Optical Distortion | 0.3% |
| Magnification Range | 0.02x to 0.5x |
| Working Distance Range | 80 mm to 2500 mm (tolerance: ±5 mm) |
