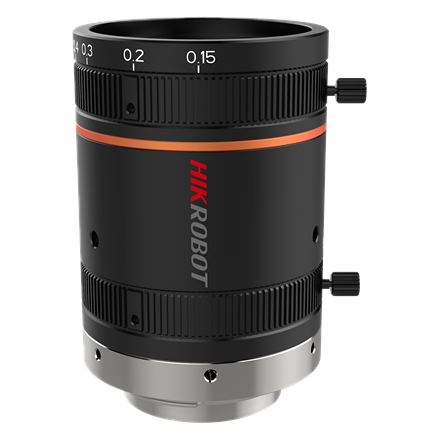

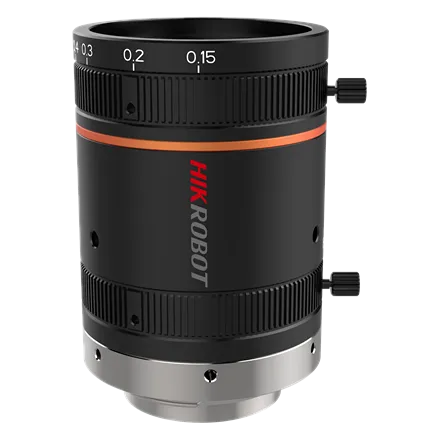

F-Mount Lens, 50mm, F4.0, Full Frame φ43.2mm, 100MP
Ultra high central image clarity, up to 3.1µm resolution
- Ultra-high central image clarity with up to 3.1 µm resolution.
- Low distortion and high relative illumination.
- Image size Ø56 mm; supports large-target area-scan cameras and 8K 5 µm, 8K 7 µm, and 16K 3.5 µm line-scan cameras.
- Optical design optimised for different magnifications.
Camera Solutions
F-Mount Lens, 50mm, F4.0, Full Frame φ43.2mm, 100MP is a machine vision lens from HIKROBOT, supplied in the DACH region by EQ Vision under article number MVL-LF5040M-F. Key data: focal length 50 mm, f number F4.0 to F22, mount F-mount, image size Ø56 mm. Typical use is imaging onto industrial camera sensors. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Low distortion and high relative illumination. Image size Ø56 mm; supports large-target area-scan cameras and 8K 5 µm, 8K 7 µm, and 16K 3.5 µm line-scan cameras. Optical design optimised for different magnifications.
Product Highlights
Ultra-high central image clarity with up to 3.1 µm resolution. — Low distortion and high relative illumination. — Image size Ø56 mm; supports large-target area-scan cameras and 8K 5 µm, 8K 7 µm, and 16K 3.5 µm line-scan cameras. — Optical design optimised for different magnifications.
Specifications
| Product Model | MVL-LF5040M-F |
|---|---|
| Type | F-Mount Lens, 50mm, F4.0, Full Frame φ43.2mm, 100MP |
| Focal Length | 50 mm |
| F Number | F4.0 to F22 |
| Image Size | Ø56 mm |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M52 × 0.75 |
| Mount | F-mount |
| Flange Back Length | 46.5 mm |
| Dimension | Ø59 mm × 98.2 mm (Ø2.32'' × 3.87'') |
| Weight | 601.5 g (1.33 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Optical Distortion | 0.41% |
| Magnification Range | 0.33 x to 0.01 x |
| Working Distance Range | 150 mm to inf mm |
