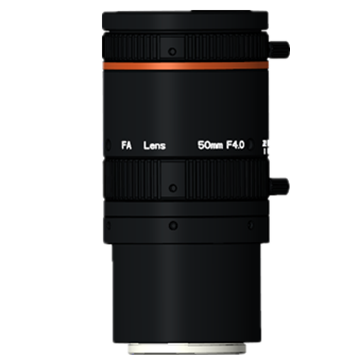

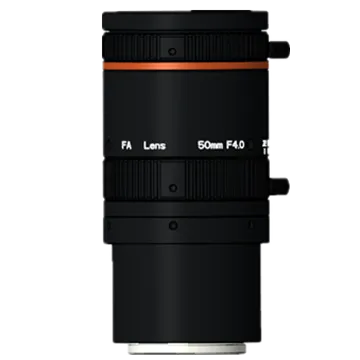

M42-Mount Lens, 50mm, F4.0, Image Size φ37mm, Recommended Magnification 0.01~0.323X
Provides ultra-high image resolution and compatible with 3.1 μm resolution.
- Ultra-high image resolution compatible with 3.1 µm pixels.
- Excellent image-clarity consistency with large aperture, low distortion, low chromatic aberration, and high relative illumination.
- Maximum image size Ø37 mm; suits APS-C area-scan and 4K 7 µm line-scan cameras.
Camera Solutions
M42-Mount Lens, 50mm, F4.0, Image Size φ37mm, Recommended Magnification 0.01~0.323X is a machine vision lens from HIKROBOT, supplied in the DACH region by EQ Vision under article number MVL-AF5040M-M42. Key data: focal length 50 mm, f number F4 to F22, mount M42 × P1, image size Φ37 mm. Typical use is imaging onto industrial camera sensors. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Excellent image-clarity consistency with large aperture, low distortion, low chromatic aberration, and high relative illumination. Maximum image size Ø37 mm; suits APS-C area-scan and 4K 7 µm line-scan cameras.
Product Highlights
Ultra-high image resolution compatible with 3.1 µm pixels. — Excellent image-clarity consistency with large aperture, low distortion, low chromatic aberration, and high relative illumination. — Maximum image size Ø37 mm; suits APS-C area-scan and 4K 7 µm line-scan cameras.
Specifications
| Product Model | MVL-AF5040M-M42 |
|---|---|
| Type | M42-Mount Lens, 50mm, F4.0, Image Size φ37mm, Recommended Magnification 0.01~0.323X |
| Focal Length | 50 mm |
| F Number | F4 to F22 |
| Image Size | Φ37 mm |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M52 × 0.75 |
| Mount | M42 × P1 |
| Flange Back Length | 12 mm |
| Dimension | Φ59 mm × 133.2 mm (Φ2.3" × 5.2") |
| Weight | 615 g (1.4 Ib.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Optical Distortion | 0.21% |
| Magnification Range | 0.323 x to 0.01 x |
| Working Distance Range | 150 mm to inf mm |
