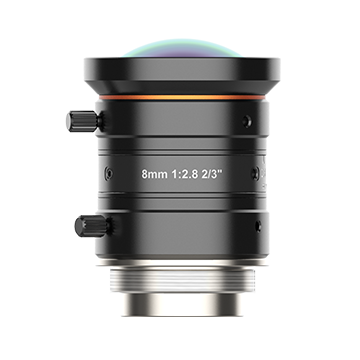

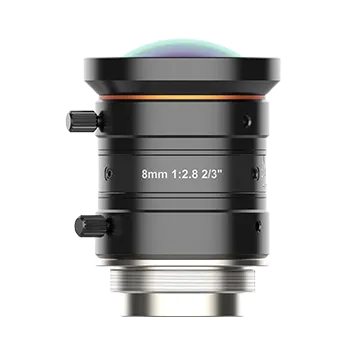

C-Mount Lens, 8mm, F2.8, 2/3″, 8MP
Ultra-high resolution and consistency of image clarity
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Ultra-low distortion and higher relative illumination. Achromatic optical design improves imaging on colour cameras. Good optical performance at ultra-short working distances. Compact design with excellent vibration resistance and stable performance at high and low temperatures.
Product Highlights
Ultra-high resolution with consistent image clarity. — Ultra-low distortion and higher relative illumination. — Achromatic optical design improves imaging on colour cameras. — Good optical performance at ultra-short working distances. — Compact design with excellent vibration resistance and stable performance at high and low temperatures.
Specifications
| Product Model | MVL-MF0828M-8MP |
|---|---|
| Type | C-Mount Lens, 8mm, F2.8, 2/3″, 8MP |
| Focal Length | 8 mm |
| F Number | F2.8 to F16 |
| Image Size | Ø11 mm (2/3") |
| Distortion | 0.28% |
| Minimum Object Distance | 0.1 m |
| Field Of View | D (11.1 mm): 68.46° H (8.45 mm): 54.97° V (7.07 mm): 47.06° |
| Iris Control | Manual |
| Focus Control | Manual |
| Mount | C-mount |
| Flange Back Length | 17.526 mm |
| Dimension | Ø35 mm × 40.27 mm (Ø1.4" × 1.6") |
| Weight | 80.7 g (0.2 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
