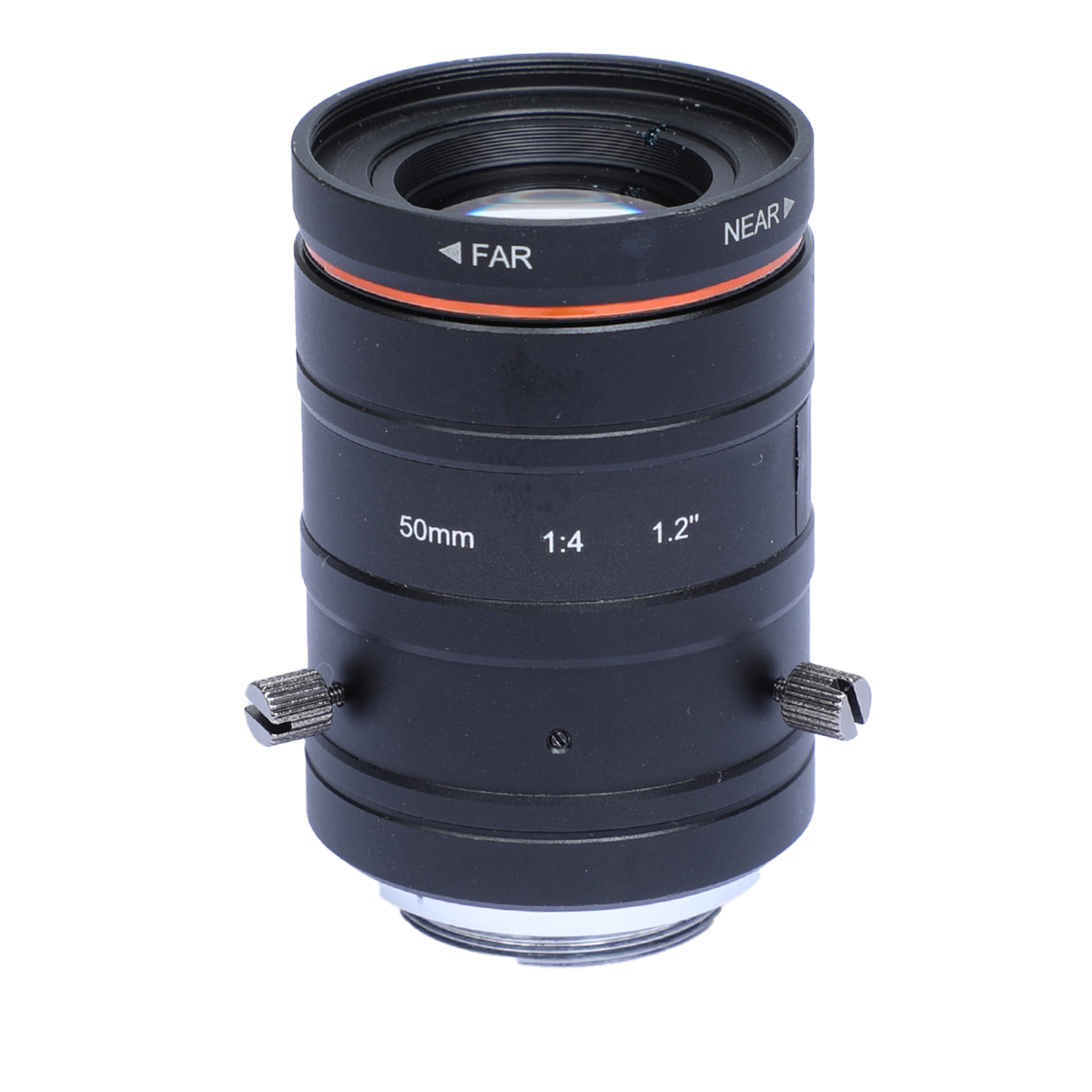

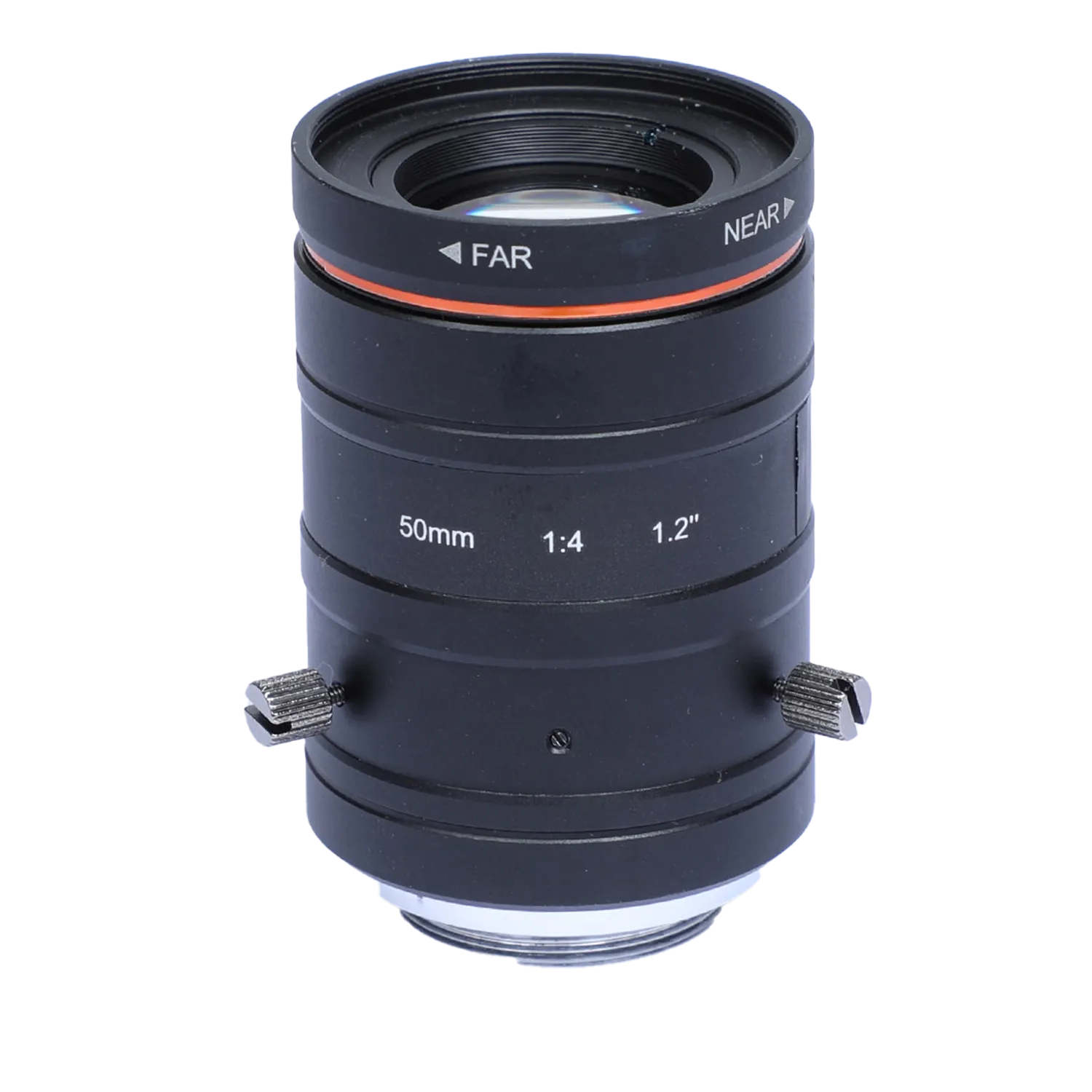

C-Mount Lens, 50mm, Fixed Iris F4, 1.2″, 25MP
Ultra high resolution, high consistency in image center and edge clarity
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
1.2″ image circle, F4 fixed iris, structurally stable. Ultra-low distortion and high relative illumination. Maintains excellent optical properties across different object distances. Excellent resistance to vibration, impact, and both high and low temperatures.
Product Highlights
Ultra-high resolution with consistent image clarity across centre and edge. — 1.2″ image circle, F4 fixed iris, structurally stable. — Ultra-low distortion and high relative illumination. — Maintains excellent optical properties across different object distances. — Excellent resistance to vibration, impact, and both high and low temperatures.
Specifications
| Product Model | MVL-KF5040-25MP |
|---|---|
| Type | C-Mount Lens, 50mm, Fixed Iris F4, 1.2″, 25MP |
| Focal Length | 50 mm |
| F Number | F4.0 |
| Image Size | Ø19.3 mm (1.2'') |
| Distortion | 0.05% |
| Minimum Object Distance | 0.15 m |
| Field Of View | D (19.3 mm): 20.6° H (14.6 mm): 15.7° V (12.63 mm): 13.6° |
| Iris Control | Fixed |
| Focus Control | Manual |
| Filter Thread | M35.5 × P0.5 |
| Mount | C-mount |
| Flange Back Length | 17.526 mm |
| Dimension | Ø38 mm × 56.53 mm to 67.95 mm (Ø1.5'' × 2.23'' to 2.68'') |
| Weight | 187 g (0.412 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
