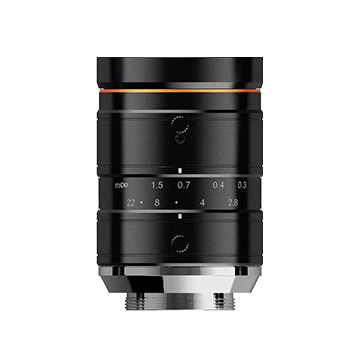

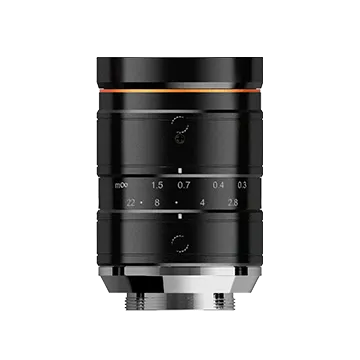

C-Mount Lens, 50mm, F2.8, 1.1″, 12MP
Ultra high resolution and consistency of image clarity
- Ultra-high resolution with consistent image clarity.
- Low distortion.
- High peripheral brightness ratio.
- Optical properties are maintained across different object distances.
Camera Solutions
C-Mount Lens, 50mm, F2.8, 1.1″, 12MP is a machine vision lens from HIKROBOT, supplied in the DACH region by EQ Vision under article number MVL-KF5028M-12MPE. Key data: focal length 50 mm, f number F2.8 to F22, mount C-mount, image size Ø17.6 mm (1.1"). Typical use is imaging onto industrial camera sensors. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Low distortion. High peripheral brightness ratio. Optical properties are maintained across different object distances.
Product Highlights
Ultra-high resolution with consistent image clarity. — Low distortion. — High peripheral brightness ratio. — Optical properties are maintained across different object distances.
Specifications
| Product Model | MVL-KF5028M-12MPE |
|---|---|
| Type | C-Mount Lens, 50mm, F2.8, 1.1″, 12MP |
| Focal Length | 50 mm |
| F Number | F2.8 to F22 |
| Image Size | Ø17.6 mm (1.1") |
| Distortion | 0.04% |
| Minimum Object Distance | 0.3 m |
| Field Of View | D (17.52 mm): 19.9° H (14.14 mm): 15.9° V (10.35 mm): 11.9° |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M35.5 × 0.5 |
| Mount | C-mount |
| Flange Back Length | 17.526 mm |
| Dimension | Ø38 mm × 53.9 mm (Ø1.5" x 2.1") |
| Weight | 121 g (0.3 lb.) |
| Temperature | –10°C to 50°C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
