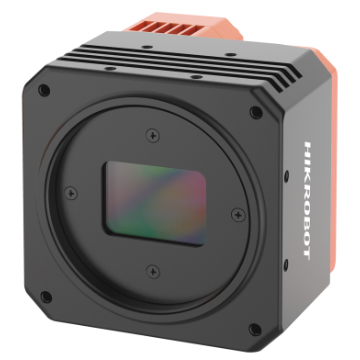

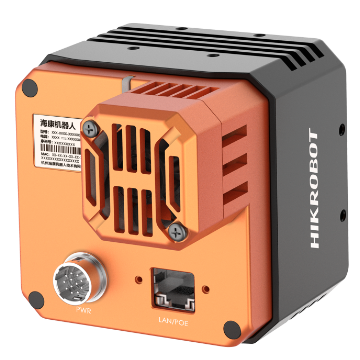

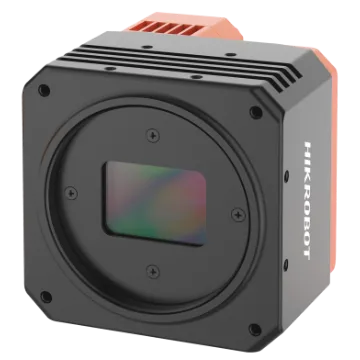

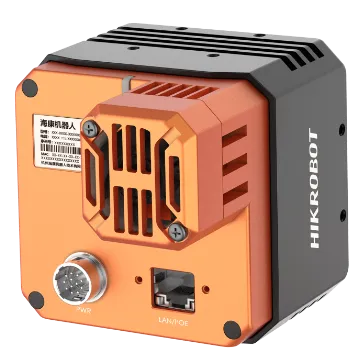

Area Scan Camera, 50MP, 10GigE, GMAX, Color, M58-mount, with fan
Resolution of 7008 × 7000, pixel size of 3.2 μm × 3.2 μm.
Camera Solutions
Beschreibung
Offers auto or manual white balance and exposure, plus manual gain, gamma correction, and LUT. Connects via 10 GigE, compatible with standard GigE networks. Compact body with panel mounting holes for flexible setup. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
Resolution of 7008 × 7000 with 3.2 µm × 3.2 µm pixels. — Offers auto or manual white balance and exposure, plus manual gain, gamma correction, and LUT. — Connects via 10 GigE, compatible with standard GigE networks. — Compact body with panel mounting holes for flexible setup. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CH500-90TC-M58S-NF V2 |
|---|---|
| Type | Area Scan Camera, 50MP, 10GigE, GMAX, Color, M58-mount, with fan |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Gpixel GMAX |
| Pixel Size | 3.2 μm × 3.2 μm |
| Sensor Size | 22.4 mm × 22.4 mm |
| Resolution | 7008 × 7000 |
| Max Frame Rate | 23.3 fps @ 7008 × 7000 Bayer BG 8 |
| Dynamic Range | 65 dB |
| SNR | 40 dB |
| Gain | 1.25 × to 6 × |
| Exposure Time | 18 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/12, Bayer BG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
| Mono Color | Color |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1. |
| Power Supply | 9 VDC to 24 VDC |
| Lens Mount | M58*0.75, flange back length 11.48 mm |
| Dimension | M58-mount with fan: 74 mm × 74 mm × 78.8 mm (2.9" × 2.9" × 3.1") |
| Weight | M58-mount with fan: Approx. 550 g (1.2 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 13.2 W @ 12 VDC |
