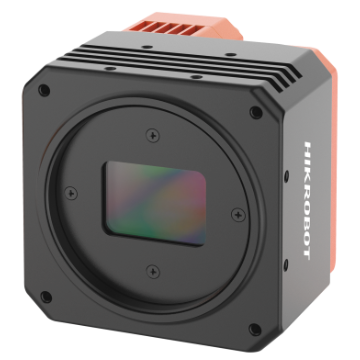

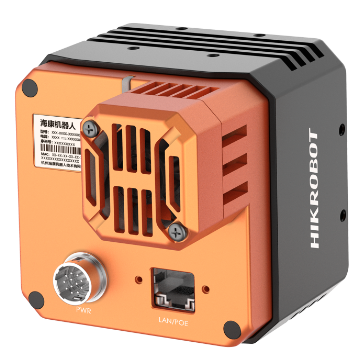

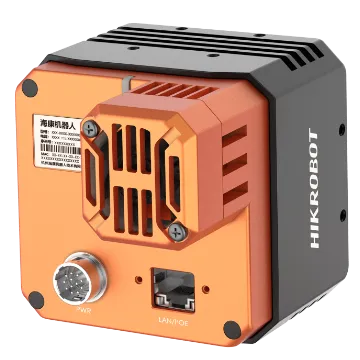

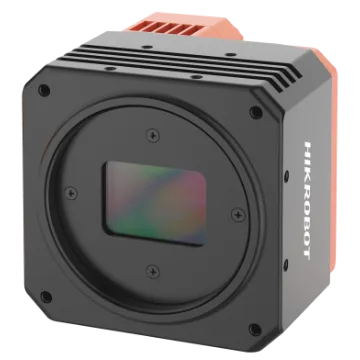

Area Scan Camera, 50MP, 10GigE, GMAX, Mono, F-mount, with fan
Resolution of 7008 × 7000, pixel size of 3.2 μm × 3.2 μm.
Camera Solutions
Beschreibung
Offers auto or manual gain and exposure, plus manual gamma correction and LUT. Connects via 10 GigE, with cable runs up to 100 m and no repeater required. Compact body with panel mounting holes for flexible setup. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
Resolution of 7008 × 7000 with 3.2 µm × 3.2 µm pixels. — Offers auto or manual gain and exposure, plus manual gamma correction and LUT. — Connects via 10 GigE, with cable runs up to 100 m and no repeater required. — Compact body with panel mounting holes for flexible setup. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CH500-90TM-F-NF |
|---|---|
| Type | Area Scan Camera, 50MP, 10GigE, GMAX, Mono, F-mount, with fan |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Gpixel® GMAX |
| Pixel Size | 3.2 μm × 3.2 μm |
| Sensor Size | 22.4 mm × 22.4 mm |
| Resolution | 7008 × 7000 |
| Max Frame Rate | 15.5 fps @ 7008 × 7000 Mono 8 |
| Dynamic Range | 66 dB |
| SNR | 40 dB |
| Gain | 1.25 × to 6 × |
| Exposure Time | 15 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/10Packed/12/12Packed |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1 |
| Power Supply | 9 VDC to 24 VDC |
| Lens Mount | F-mount, flange back length 46.5 mm |
| Dimension | 74 mm × 74 mm × 84.8 mm (2.9" × 2.9" × 3.3") |
| Weight | Approx. 600 g (1.3 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 11 W @ 12 VDC |
