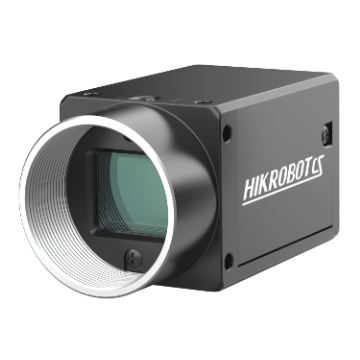

Area Scan Camera, 5MP, GigE, 2nd Generation, Color
Adopts brand new design to reduce power consumption.
Camera Solutions
Beschreibung
Offers auto or manual gain, exposure, white balance, LUT, and gamma correction, plus a Sequencer function. ISP functions including CCM, Super Palette, and Super Bayer deliver high-quality images. Compact body with panel mounting holes on four sides for flexible setup. Connects via GigE, with cable runs up to 100 m and no repeater required. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
Redesigned for lower power consumption. — Offers auto or manual gain, exposure, white balance, LUT, and gamma correction, plus a Sequencer function. — ISP functions including CCM, Super Palette, and Super Bayer deliver high-quality images. — Compact body with panel mounting holes on four sides for flexible setup. — Connects via GigE, with cable runs up to 100 m and no repeater required. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CS050-60GC |
|---|---|
| Type | Area Scan Camera, 5MP, GigE, 2nd Generation, Color |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Stacked BSI |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 2/3" |
| Resolution | 2448 × 2048 |
| Max Frame Rate | 23 fps @ 2448 × 2048 Bayer GR 8 |
| Dynamic Range | 73.9 dB |
| SNR | 42.4 dB |
| Gain | 0 dB to 24 dB |
| Exposure Time | High full well capacity: 30 μs to 10 sec High sensitivity: 5 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/12, Bayer GR 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
| Mono Color | Color |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |

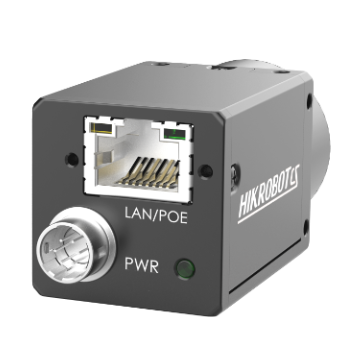

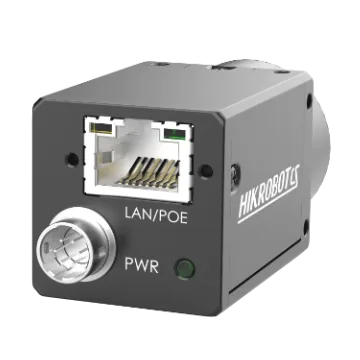

| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports PoE |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenICam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 2.5 W @ 12 VDC |
