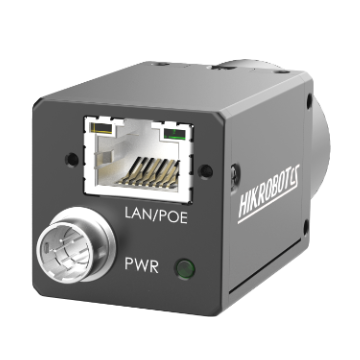

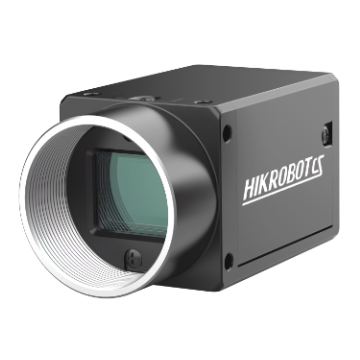

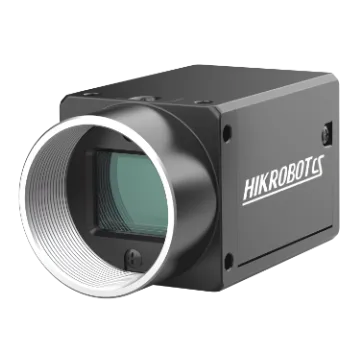

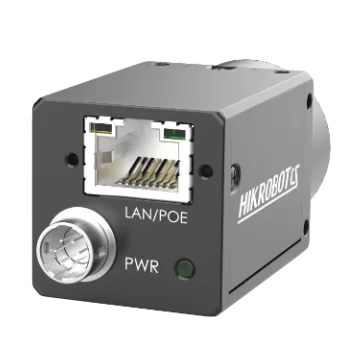

Area Scan Camera, 5MP, GigE, 2nd Generation, NIR enhanced

Name: Area Scan Camera, 5MP, GigE, 2nd Generation, NIR enhanced
Brand: HIKROBOT
SKU: MV-CS050-60GN

Adopts brand new design to reduce power consumption.

Send inquiry

Download datasheet (PDF)

Highlights

Redesigned for lower power consumption.
Offers auto or manual gain, exposure, white balance, LUT, and gamma correction, plus a Sequencer function.
ISP functions including CCM, Super Palette, and Super Bayer deliver high-quality images.
Compact body with panel mounting holes on four sides for flexible setup.
Connects via GigE, with cable runs up to 100 m and no repeater required.
Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-CS050-60GN Category: Area & Line Scan Cameras

Area Scan Camera, 5MP, GigE, 2nd Generation, NIR enhanced is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CS050-60GN. Key data: resolution 2448 × 2048, sensor type CMOS, global shutter, max frame rate 23 fps @ 2448 × 2048 Mono 8. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

Offers auto or manual gain, exposure, white balance, LUT, and gamma correction, plus a Sequencer function. ISP functions including CCM, Super Palette, and Super Bayer deliver high-quality images. Compact body with panel mounting holes on four sides for flexible setup. Connects via GigE, with cable runs up to 100 m and no repeater required. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.

Area Scan Camera, 5MP, GigE, 2nd Generation, NIR enhanced (MV-CS050-60GN) at a glance: 2448 × 2048 resolution, Stacked BSI sensor, 2/3" sensor format, 3.45 μm × 3.45 μm pixel size, up to 23 fps, Near IR output, Gigabit Ethernet (1000 Mbit/s) interface and C-mount lens mount. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

Redesigned for lower power consumption. — Offers auto or manual gain, exposure, white balance, LUT, and gamma correction, plus a Sequencer function. — ISP functions including CCM, Super Palette, and Super Bayer deliver high-quality images. — Compact body with panel mounting holes on four sides for flexible setup. — Connects via GigE, with cable runs up to 100 m and no repeater required. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.

Specifications

Product Model	MV-CS050-60GN
Type	Area Scan Camera, 5MP, GigE, 2nd Generation, NIR enhanced
Sensor Type	CMOS, global shutter
Sensor Model	Stacked BSI
Pixel Size	3.45 μm × 3.45 μm
Sensor Size	2/3"
Resolution	2448 × 2048
Max Frame Rate	23 fps @ 2448 × 2048 Mono 8
Dynamic Range	73.9 dB
SNR	42.4 dB
Gain	0 dB to 24 dB
Exposure Time	High full well capacity: 30 μs to 10 sec High sensitivity: 5 μs to 10 sec
Exposure Mode	Off/Once/Continuous exposure mode
Pixel Format	Mono 8/10/10Packed/12/12Packed
Mono Color	Near IR
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2, 4 × 4
Reverse Image	Supports horizontal and vertical reverse image output
Data Interface	Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power Supply	9 VDC to 24 VDC, supports PoE
Lens Mount	C-mount
Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
Weight	Approx. 100 g (0.2 lb.)
Ingress Protection	IP40 (under proper lens installation and wiring)
Temperature	Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% RH to 95% RH (no condensation)
Client Software	MVS or third-party software meeting with GigE Vision Protocol
Operating System	32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
Compatibility	GigE Vision V2.0, GenICam
Certification	CE, RoHS, KC
Power Consumption 2	Typ. 2.3 W @ 12 VDC
