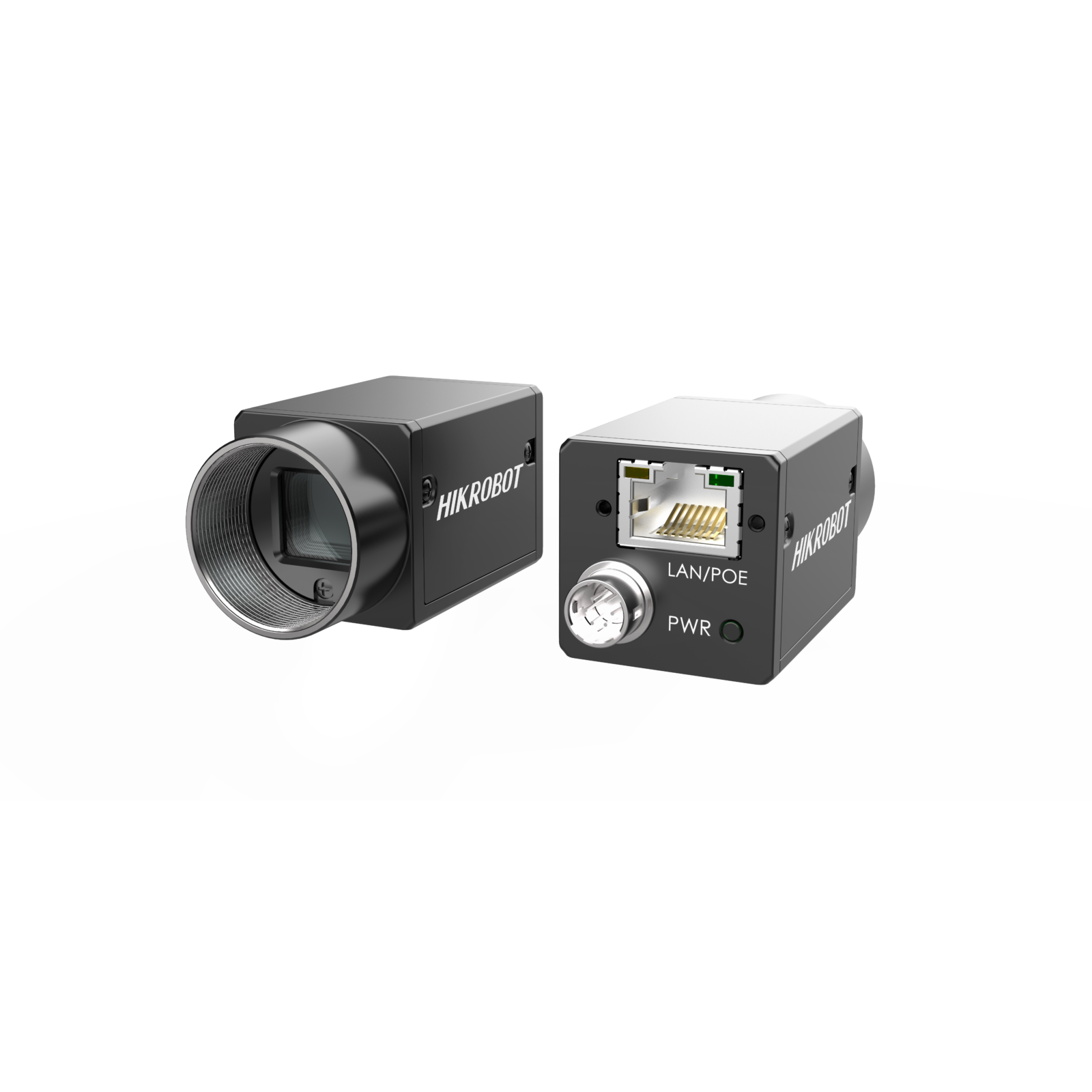

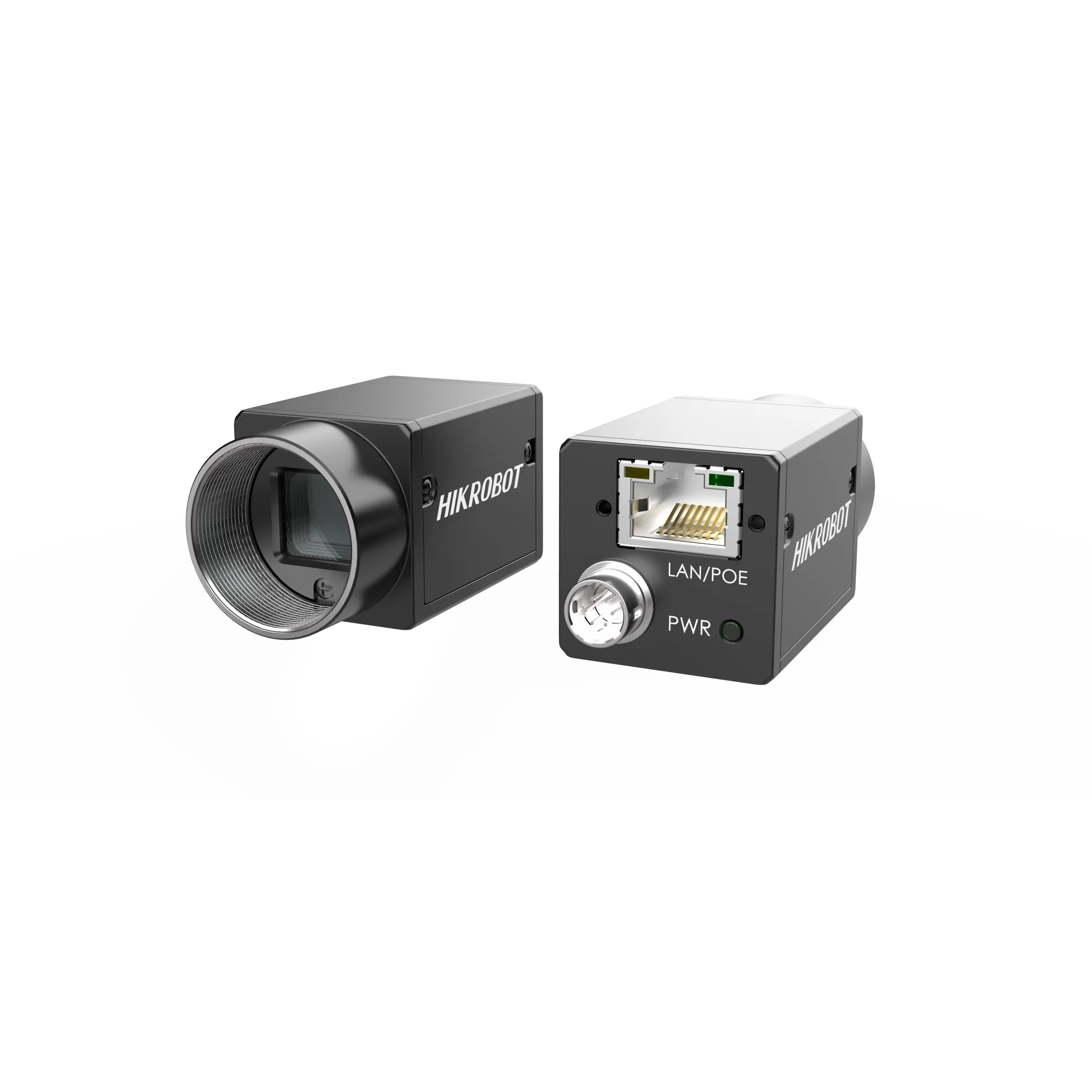

Area Scan Camera, 5MP, GigE, AR0521, Color
Adopts GigE interface and max. transmission distance of 100 meters without relay.
- Connects via GigE, with cable runs up to 100 m and no repeater required.
- Up to 128 MB of onboard memory supports burst transmission and retransmission.
- Offers auto exposure control, LUT, and gamma correction.
- Supports hardware and software triggering, among other modes.
- Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Camera Solutions
Area Scan Camera, 5MP, GigE, AR0521, Color is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CE050-31GC. Key data: resolution 2592 × 1944, sensor type CMOS, rolling shutter, max frame rate 24 fps @ 2592 × 1944. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Up to 128 MB of onboard memory supports burst transmission and retransmission. Offers auto exposure control, LUT, and gamma correction. Supports hardware and software triggering, among other modes. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
Connects via GigE, with cable runs up to 100 m and no repeater required. — Up to 128 MB of onboard memory supports burst transmission and retransmission. — Offers auto exposure control, LUT, and gamma correction. — Supports hardware and software triggering, among other modes. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CE050-31GC |
|---|---|
| Type | Area Scan Camera, 5MP, GigE, AR0521, Color |
| Sensor Type | CMOS, rolling shutter |
| Sensor Model | Aptina AR0521 |
| Pixel Size | 2.2 μm × 2.2 μm |
| Sensor Size | 1/2.5" |
| Resolution | 2592 × 1944 |
| Max Frame Rate | 24 fps @ 2592 × 1944 |
| Dynamic Range | 63 dB |
| SNR | 37 dB |
| Gain | 0 dB to 23 dB |
| Exposure Time | 21 μs to 1 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/12, Bayer GB 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, BGR 8, RGB 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet, compatible with Fast Ethernet |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports PoE |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 68 g (0.15 lb.) |
| Ingress Protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Mono | Color |
| Power Consumption 2 | Typ. 2.4 W @ 12 VDC |
| Image Buffer | 128 MB |
