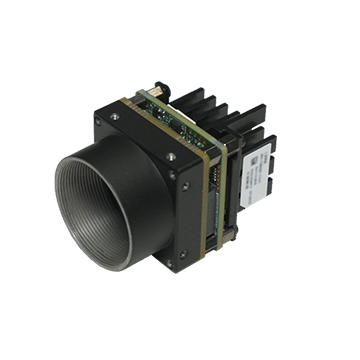

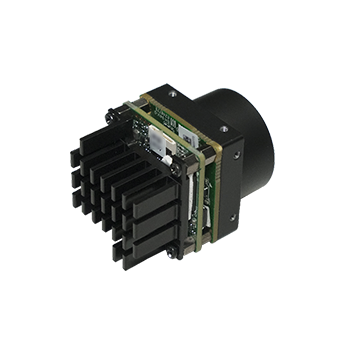

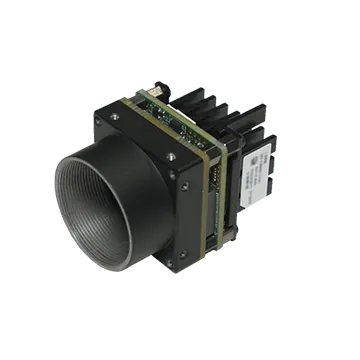

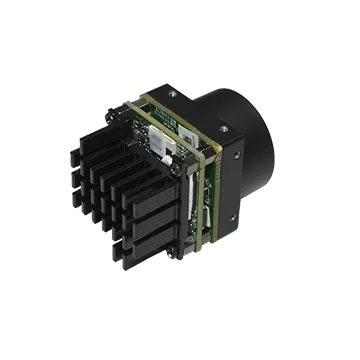

Board Level Camera, 5MP, USB3.0, FPC interface, Color, C-mount

Name: Board Level Camera, 5MP, USB3.0, FPC interface, Color, C-mount
Brand: HIKROBOT
SKU: MV-CB050-11UC-C

USB3.0 supports FPC connection to meet limited spatial requirements.

Send inquiry

Download datasheet (PDF)

Highlights

USB 3.0 FPC connection for space-constrained installations.
Sensor-mainboard separation for complex spatial installations.
Offers auto or manual gain, exposure, white balance, LUT, and gamma correction.
Image interpolation algorithm for accurate colour reproduction.
Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-CB050-11UC-C Category: Area & Line Scan Cameras

Board Level Camera, 5MP, USB3.0, FPC interface, Color, C-mount is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CB050-11UC-C. Key data: resolution 2448 × 2048, sensor type CMOS, global shutter, max frame rate 60 fps @ 2448 × 2048, data interface USB3.0, compatible with USB2.0. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

Sensor-mainboard separation for complex spatial installations. Offers auto or manual gain, exposure, white balance, LUT, and gamma correction. Image interpolation algorithm for accurate colour reproduction. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.

Board Level Camera, 5MP, USB3.0, FPC interface, Color, C-mount (MV-CB050-11UC-C) at a glance: 2448 × 2048 resolution, Sony® IMX264 sensor, 2/3" sensor format, 3.45 μm × 3.45 μm pixel size, up to 60 fps, USB3.0, compatible with USB2.0 interface, C-mount lens mount and 29 mm × 29 mm × 31.3 mm (1.1" × 1.1" × 1.2") housing. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

USB 3.0 FPC connection for space-constrained installations. — Sensor-mainboard separation for complex spatial installations. — Offers auto or manual gain, exposure, white balance, LUT, and gamma correction. — Image interpolation algorithm for accurate colour reproduction. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.

Specifications

Product Model	MV-CB050-11UC-C
Type	Board Level Camera, 5MP, USB3.0, FPC interface, Color, C-mount
Sensor Type	CMOS, global shutter
Sensor Model	Sony® IMX264
Pixel Size	3.45 μm × 3.45 μm
Sensor Size	2/3"
Resolution	2448 × 2048
Max Frame Rate	60 fps @ 2448 × 2048
Dynamic Range	72 dB
SNR	40.2 dB
Gain	0 dB to 24 dB
Exposure Time	UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec
Exposure Mode	Off/Once/Continuous exposure mode
Pixel Format	Mono 8/10/12, Bayer RG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Decimation	Supports 1 × 1, 2 × 2
Reverse Image	Supports horizontal and vertical reverse image output
Data Interface	USB3.0, compatible with USB2.0
Digital I/O	Bi-directional non-isolated I/O × 2 (Line 2, Line 5)
Power Supply	5 VDC (USB3.0 provides power supply)
Lens Mount	C-mount
Dimension	29 mm × 29 mm × 31.3 mm (1.1" × 1.1" × 1.2")
Weight	Approx. 37 g (0.08 lb.)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 80% RH (no condensation)
Client Software	MVS or third-party software meeting with USB3 Vision Protocol
Operating System	32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
Compatibility	USB3 Vision, GenlCam
Certification	CE, RoHS, KC
Mono	Color
Power Consumption 2	Typ. 2.8 W @ 5 VDC (USB3.0 provides power supply)
