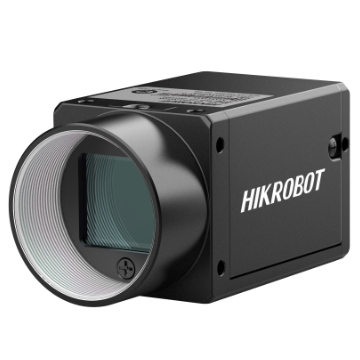

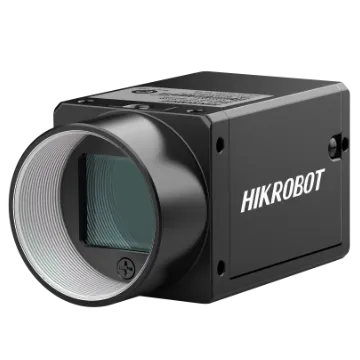

Area Scan Camera, 5MP SWIR, IMX992, 1link CXP-12, fanless
Adopts InGaAs sensor and supports spectral imaging of 0.4 μm to 1.7 μm.
- InGaAs sensor supports spectral imaging from 0.4 µm to 1.7 µm.
- ISP functions including digital noise reduction and contrast adjustment.
- Compact structure meets tight spatial requirements.
- Transmits data over a CXP-12 interface.
- Works with the CoaXPress protocol, the GenICam standard, and compatible third-party software.
Camera Solutions
Area Scan Camera, 5MP SWIR, IMX992, 1link CXP-12, fanless is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CI050-Y1S-NN. Key data: resolution 2592 × 2056, sensor type InGaAs, global shutter, max frame rate 120 fps @ 2592 × 2056 Mono 8, data interface CoaXPress with Micro-BNC interface. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 0.3MP, GigE, PYTHON300, Color (MV-CA003-20GC)
- Area Scan Camera, 0.3MP, GigE, PYTHON300, Color (MV-CA003-21UC)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Color, BASE (MV-CT0CG0004/G/NN/NN)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Color, MAX (MV-CT2CG0004/G/NN/NN)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Color, PRO (MV-CT1CG0004/G/NN/NN)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Mono, BASE (MV-CT0MG0004/G/NN/NN)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Mono, MAX (MV-CT2MG0004/G/NN/NN)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Mono, PRO (MV-CT1MG0004/G/NN/NN)
Description
ISP functions including digital noise reduction and contrast adjustment. Compact structure meets tight spatial requirements. Transmits data over a CXP-12 interface. Works with the CoaXPress protocol, the GenICam standard, and compatible third-party software.
Product Highlights
InGaAs sensor supports spectral imaging from 0.4 µm to 1.7 µm. — ISP functions including digital noise reduction and contrast adjustment. — Compact structure meets tight spatial requirements. — Transmits data over a CXP-12 interface. — Works with the CoaXPress protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CI050-Y1S-NN |
|---|---|
| Type | Area Scan Camera, 5MP SWIR, IMX992, 1link CXP-12, fanless |
| Sensor Type | InGaAs, global shutter |
| Sensor Model | Sony® IMX992 |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1/1.4" |
| Resolution | 2592 × 2056 |
| Max Frame Rate | 120 fps @ 2592 × 2056 Mono 8 |
| Dynamic Range | 50.6 dB |
| SNR | 47.7 dB |
| Gain | 0 dB to 18 dB |
| Exposure Time | UltraShort exposure mode: 8 μs to 14 μs SuperShort exposure mode: 15 μs to 22 μs Standard exposure mode: 23 μs to 100 ms |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/12 |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 2 × 2, 3 × 3, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |

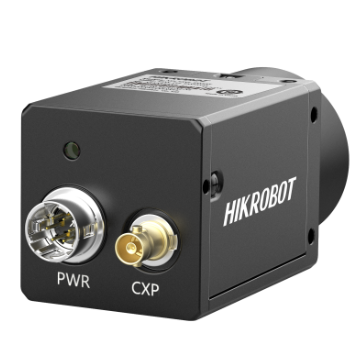

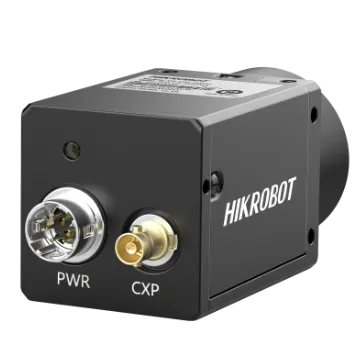

| Data Interface | CoaXPress with Micro-BNC interface |
| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports PoCXP |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 90 g (0.2 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 40 °C (14 °F to 104 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or frame grabber software meeting with CoaXPress Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 4.2 W @ 12 VDC |
