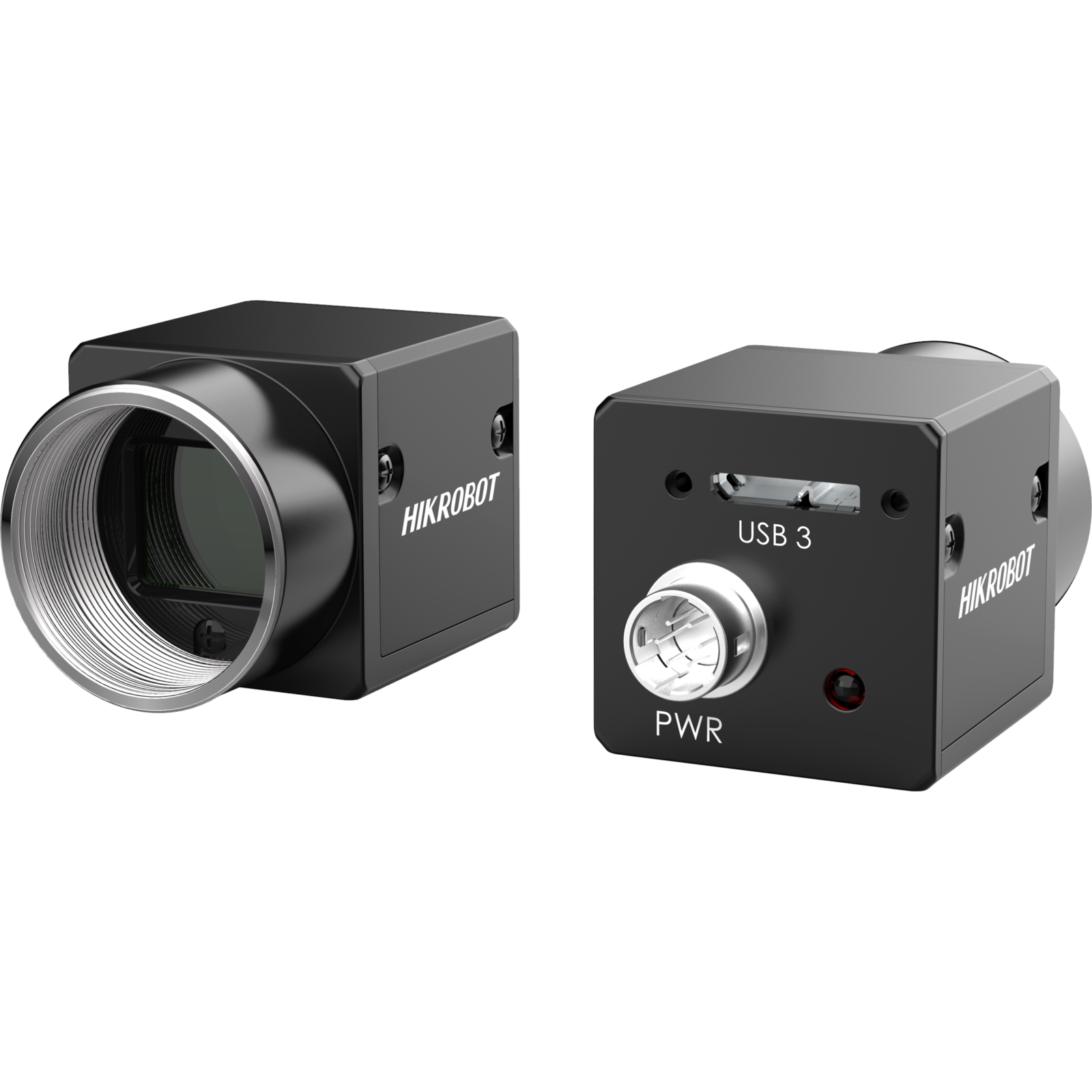

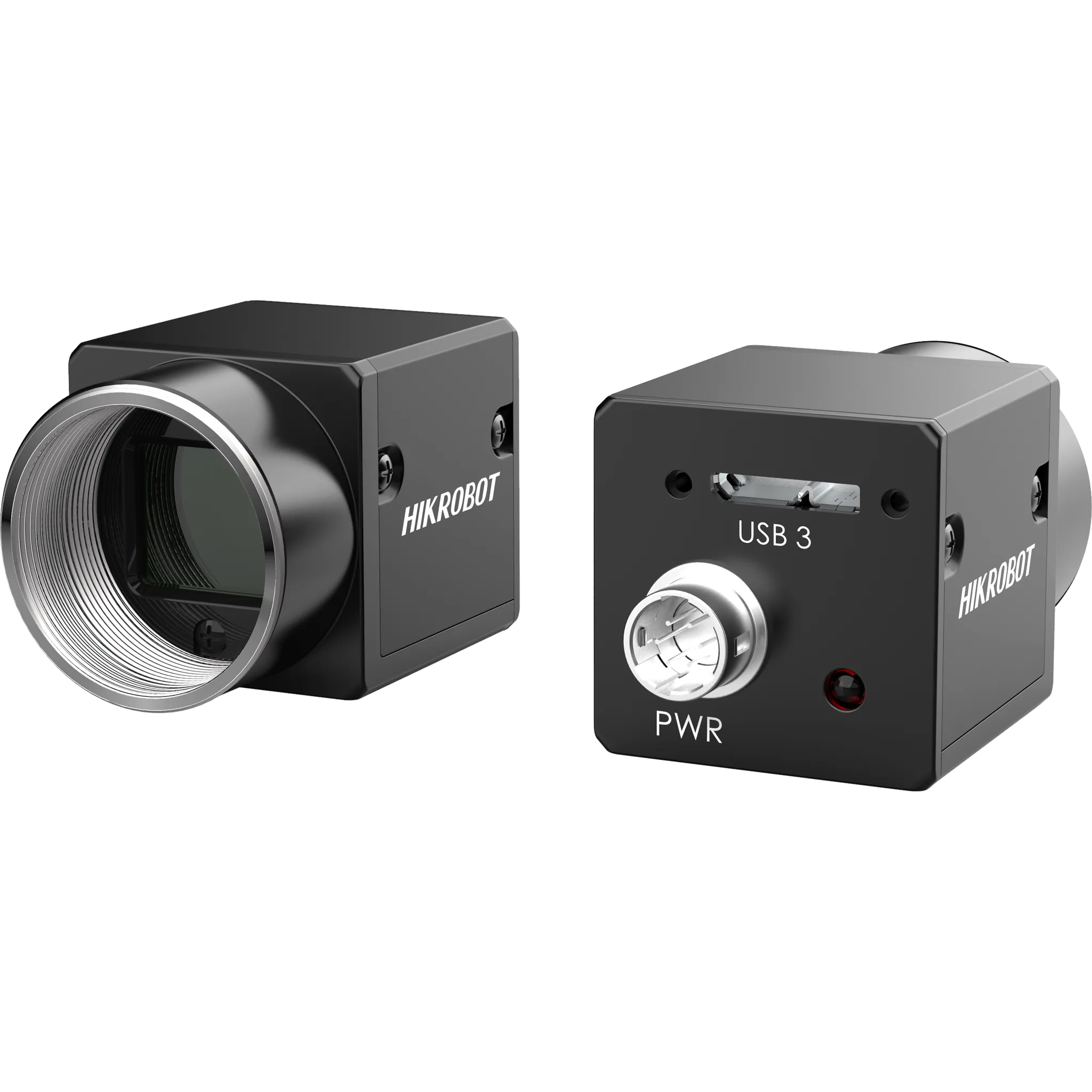

Area Scan Camera, 6 MP 1/1.8″ CMOS USB3.0
Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
- Offers auto and manual control of gain, exposure, LUT, and gamma correction.
- Supports hardware triggering, software triggering, and free-run mode.
- M2 screw holes lock down the USB3.0 cable.
- Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Camera Solutions
Area Scan Camera, 6 MP 1/1.8″ CMOS USB3.0 is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CS060-RC. Key data: resolution 3072 × 2048, sensor type CMOS, rolling shutter, max frame rate 42.7 fps @3072 × 2048, data interface USB3.0. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 6MP, GigE, IMX178, Color, PRO (MV-CS060-10GC-PRO)
- Area Scan Camera, 6MP, GigE, IMX178, Mono, Basic (MV-CS060-10GM)
- Area Scan Camera, 6MP, GigE, V5, Mono (MV-CS060-10GM V5)
- Area Scan Camera, 6MP, GigE, IMX178, Mono, PRO (MV-CS060-10GM-PRO)
- Area Scan Camera, 6MP, USB3.0, IMX178, Color (MV-CS060-10UC)
- Area Scan Camera, 6MP, USB3.0, IMX178, Color, PRO (MV-CS060-10UC-PRO)
- Area Scan Camera, 6MP, USB3.0, IMX178, Mono (MV-CS060-10UM)
- Area Scan Camera, 6MP, USB3.0, IMX178, Mono, PRO (MV-CS060-10UM-PRO)
Description
Supports hardware triggering, software triggering, and free-run mode. M2 screw holes lock down the USB3.0 cable. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Offers auto and manual control of gain, exposure, LUT, and gamma correction. — Supports hardware triggering, software triggering, and free-run mode. — M2 screw holes lock down the USB3.0 cable. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CS060-RC |
|---|---|
| Type | Area Scan Camera, 6 MP 1/1.8″ CMOS USB3.0 |
| Sensor Type | CMOS, rolling shutter |
| Sensor Model | IMX178 |
| Pixel Size | 2.4 µm × 2.4 µm |
| Sensor Size | 1/1.8" |
| Resolution | 3072 × 2048 |
| Max Frame Rate | 42.7 fps @3072 × 2048 |
| Dynamic Range | 71.3 dB |
| SNR | 41.3 dB |
| Gain | 0 dB to 20 dB |
| Exposure Time | 24 μs to 1 sec |
| Exposure Mode | Off/Once/Continuous exposure mode, supports Global Reset, Trigger Rolling, and Rolling |
| Pixel Format | Mono 8/10/12, Bayer RG 8/10/10p/12/12p,<br/>YUV422_YUYV_Packed, YUV 422 Packed, RGB8, BGR8 |
| Mono Color | Color |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Not support |
| Reverse Image | Supports horizontal reverse image output |
| Data Interface | USB3.0 |
| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1<br/>(Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2) |
| Power Supply | 12 VDC, supports USB3.0 power supply |
| Lens Mount | C-Mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 56 g (0.12 lb.) |
| Ingress Protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F)<br/>Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 80% RH, non-condensing |
| Client Software | MVS or third-party software meeting with USB3.0 Vision Protocol |
| Operating System | 32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, FCC, RoHS, KC |
| Power Consumption 2 | Typ. 2.7 W@5 VDC (USB3.0 provides power supply) |
| Image Buffer | 128 MB |
