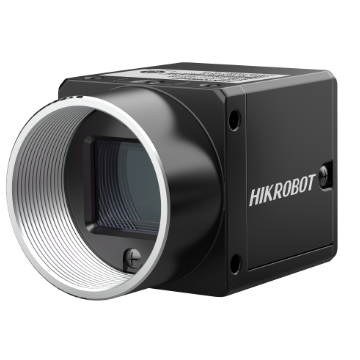

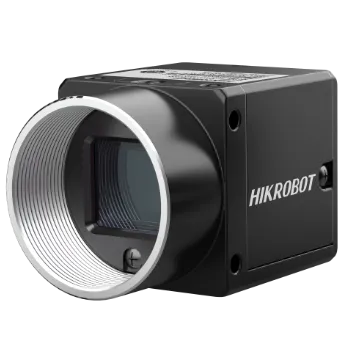

Area Scan Camera, 6MP, USB3.0, IMX178, Color, PRO
Adopts brand new design to reduce power consumption.
- Redesigned for lower power consumption.
- Compact body with panel mounting holes on four sides for flexible setup.
- Sony® IMX178 sensor delivers high sensitivity, wide dynamic range, and low noise.
- Supports image compression and noise reduction.
- Active-alignment assembly for precision optical performance.
- Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Camera Solutions
Area Scan Camera, 6MP, USB3.0, IMX178, Color, PRO is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CS060-10UC-PRO. Key data: resolution 3072 × 2048, sensor type CMOS, rolling shutter, max frame rate 59.6fps @ 3072 × 2048, data interface USB3.0, compatible with USB2.0. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 6MP, GigE, IMX178, Color, PRO (MV-CS060-10GC-PRO)
- Area Scan Camera, 6MP, GigE, IMX178, Mono, Basic (MV-CS060-10GM)
- Area Scan Camera, 6MP, GigE, V5, Mono (MV-CS060-10GM V5)
- Area Scan Camera, 6MP, GigE, IMX178, Mono, PRO (MV-CS060-10GM-PRO)
- Area Scan Camera, 6MP, USB3.0, IMX178, Color (MV-CS060-10UC)
- Area Scan Camera, 6MP, USB3.0, IMX178, Mono (MV-CS060-10UM)
- Area Scan Camera, 6MP, USB3.0, IMX178, Mono, PRO (MV-CS060-10UM-PRO)
- Area Scan Camera, 6 MP 1/1.8″ CMOS USB3.0 (MV-CS060-RC)
Description
Compact body with panel mounting holes on four sides for flexible setup. Sony® IMX178 sensor delivers high sensitivity, wide dynamic range, and low noise. Supports image compression and noise reduction. Active-alignment assembly for precision optical performance. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Redesigned for lower power consumption. — Compact body with panel mounting holes on four sides for flexible setup. — Sony® IMX178 sensor delivers high sensitivity, wide dynamic range, and low noise. — Supports image compression and noise reduction. — Active-alignment assembly for precision optical performance. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CS060-10UC-PRO |
|---|---|
| Type | Area Scan Camera, 6MP, USB3.0, IMX178, Color, PRO |
| Sensor Type | CMOS, rolling shutter |
| Sensor Model | Sony® IMX178 |
| Pixel Size | 2.4 μm × 2.4 μm |
| Sensor Size | 1/1.8" |
| Resolution | 3072 × 2048 |
| Max Frame Rate | 59.6fps @ 3072 × 2048 |
| Dynamic Range | / |
| SNR | 41.3 dB |
| Gain | 0 dB to 24 dB |
| Exposure Time | 32 us to 1 sec |
| Exposure Mode | Off/Once/Continuous exposure mode, supports Global Reset, Trigger Rolling, and Rolling |
| Pixel Format | Mono 8/10/10p/12/12p |
| Binning | Supports 1 × 1, 2 × 2 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB3.0, compatible with USB2.0 |

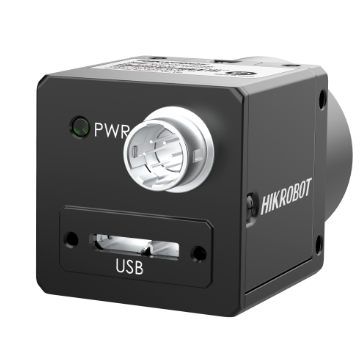

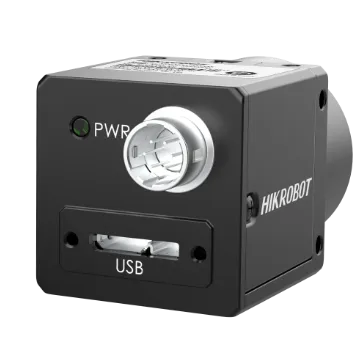

| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2). |
| Power Supply | 9 VDC to 24 VDC, supports USB3.0 power supply |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2") |
| Weight | Approx. 80 g (0.18 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with USB3.0 Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Mono | Mono |
| Power Consumption 2 | Typ. 2.5 W@5 VDC (USB3.0 provides power supply) |
| Quantum Efficiency | / |
| Dark Noise | / |
| Signal To Noise Ratio | / |
| Saturation Capacity | / |
