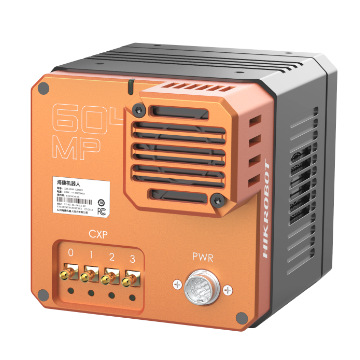

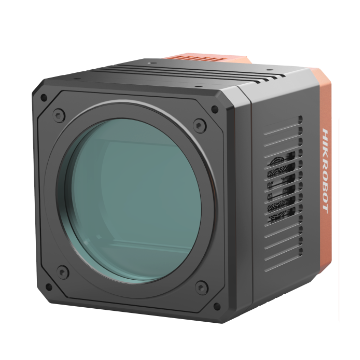

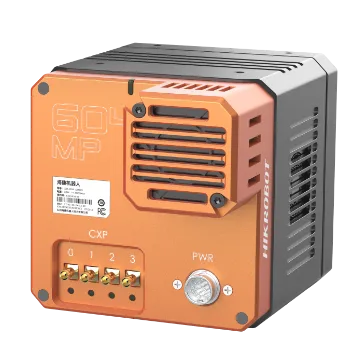

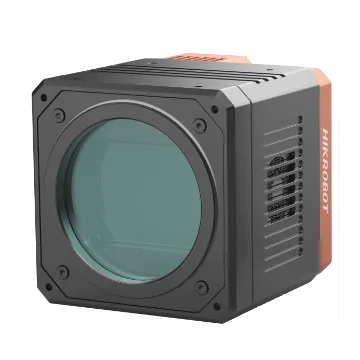

Area Scan Camera, 604MP, CXP-6, Mono
Resolution of 28416 × 21280, pixel size of 3.76 µm × 3.76 µm.
- Resolution of 28416 × 21280 with 3.76 µm × 3.76 µm pixels.
- ISP algorithms deliver improved image quality.
- A rolling-shutter CMOS sensor delivers high dynamic range.
- FFC correction, LSC correction, and 16-bit ADC output.
- Transmits data over a CXP-6 interface.
- Works with the CoaXPress protocol, the GenICam standard, and compatible third-party software.
Camera Solutions
Area Scan Camera, 604MP, CXP-6, Mono is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH6040-10XM-M72-NF. Key data: resolution 28416 × 21280, sensor type CMOS, rolling shutter, max frame rate 1.45 fps @ 28416 × 21280 Mono 8, data interface CoaXPress with DIN interface. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Area Scan Camera, 0.3MP, GigE, PYTHON300, Color (MV-CA003-20GC)
- Area Scan Camera, 0.3MP, GigE, PYTHON300, Color (MV-CA003-21UC)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Color, BASE (MV-CT0CG0004/G/NN/NN)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Color, MAX (MV-CT2CG0004/G/NN/NN)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Color, PRO (MV-CT1CG0004/G/NN/NN)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Mono, BASE (MV-CT0MG0004/G/NN/NN)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Mono, MAX (MV-CT2MG0004/G/NN/NN)
- Area Scan Camera, 0.4MP, 3rd Gen., GigE, Mono, PRO (MV-CT1MG0004/G/NN/NN)
Description
ISP algorithms deliver improved image quality. A rolling-shutter CMOS sensor delivers high dynamic range. FFC correction, LSC correction, and 16-bit ADC output. Transmits data over a CXP-6 interface. Works with the CoaXPress protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Resolution of 28416 × 21280 with 3.76 µm × 3.76 µm pixels. — ISP algorithms deliver improved image quality. — A rolling-shutter CMOS sensor delivers high dynamic range. — FFC correction, LSC correction, and 16-bit ADC output. — Transmits data over a CXP-6 interface. — Works with the CoaXPress protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CH6040-10XM-M72-NF |
|---|---|
| Type | Area Scan Camera, 604MP, CXP-6, Mono |
| Sensor Type | CMOS, rolling shutter |
| Sensor Model | Sony® IMX411 |
| Pixel Size | 3.76 μm × 3.76 μm |
| Sensor Size | 66.7 mm |
| Resolution | 28416 × 21280 |
| Max Frame Rate | 1.45 fps @ 28416 × 21280 Mono 8 |
| Dynamic Range | 78.7 dB |
| SNR | 46.4 dB |
| Gain | 0 dB to 40 dB |
| Exposure Time | 15 μs to 1 sec (604 MP) |
| Exposure Mode | Off/Once/Continuous exposure mode, supports Rolling and Global Reset |
| Pixel Format | Mono 8/10/12/16 |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Not support |
| Reverse Image | Supports horizontal reverse image output |
| Data Interface | CoaXPress with DIN interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1 |
| Power Supply | 24 VDC |
| Lens Mount | M72*0.75, back focal length 19.55 mm |
| Dimension | 100 mm × 100 mm × 128.5 mm (3.9" × 3.9" × 5.1") |
| Weight | Approx. 1.4 kg (3.1 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Performance temperature: 20 °C to 35 °C (68 °F to 95 °F) Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | Frame grabber software meeting with CoaXPress Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11 with 16 GB memory or above |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 15 W @ 24 VDC |
