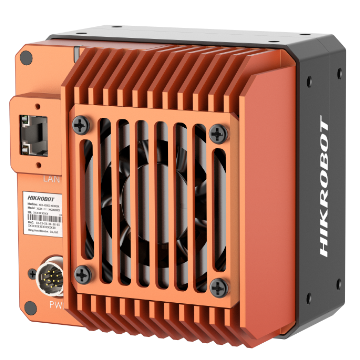

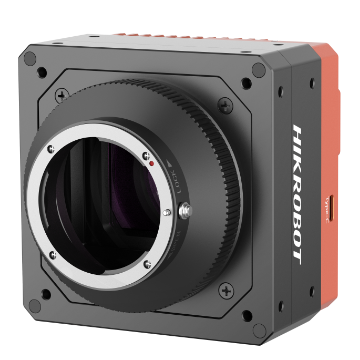

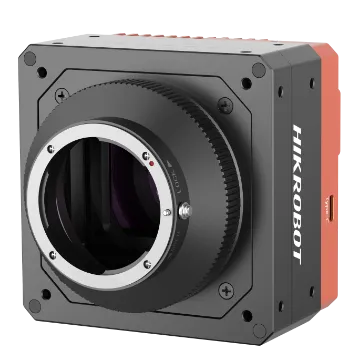

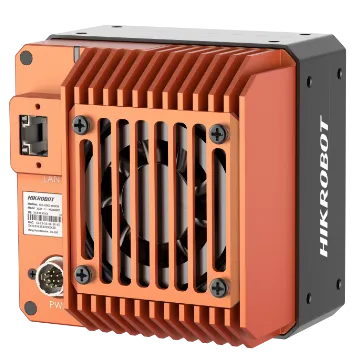

Area Scan Camera, 61MP, IMX455, 10GigE, mono, F-mount, with TEC
Provides highly-integrated hardware platform, and supports low power consumption and high cooling efficiency.
- Highly integrated hardware platform with low power consumption and efficient cooling.
- New design with a detachable lens mount.
- Connects via 10 GigE, with cable runs up to 100 m and no repeater required.
- TEC lowers sensor temperature for high-quality images during long-exposure shots.
- 16-bit ADC output delivers high-precision sampling and wide dynamic range.
- Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.
Camera Solutions
Area Scan Camera, 61MP, IMX455, 10GigE, mono, F-mount, with TEC is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CH610-10TM-F-TF. Key data: resolution 9568 × 6380, sensor type CMOS, rolling shutter, max frame rate 17.9 fps @ 9568 × 6380 Mono 8. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
New design with a detachable lens mount. Connects via 10 GigE, with cable runs up to 100 m and no repeater required. TEC lowers sensor temperature for high-quality images during long-exposure shots. 16-bit ADC output delivers high-precision sampling and wide dynamic range. Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.
Product Highlights
Highly integrated hardware platform with low power consumption and efficient cooling. — New design with a detachable lens mount. — Connects via 10 GigE, with cable runs up to 100 m and no repeater required. — TEC lowers sensor temperature for high-quality images during long-exposure shots. — 16-bit ADC output delivers high-precision sampling and wide dynamic range. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and protocol-compliant third-party software.
Specifications
| Product Model | MV-CH610-10TM-F-TF |
|---|---|
| Type | Area Scan Camera, 61MP, IMX455, 10GigE, mono, F-mount, with TEC |
| Sensor Type | CMOS, rolling shutter |
| Sensor Model | Sony® IMX455 |
| Pixel Size | 3.76 μm × 3.76 μm |
| Sensor Size | 36 mm × 24 mm |
| Resolution | 9568 × 6380 |
| Max Frame Rate | 17.9 fps @ 9568 × 6380 Mono 8 |
| Dynamic Range | 75.3 dB |
| SNR | 46.8 dB |
| Gain | 0 dB to 36 dB |
| Exposure Time | 9 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode, supports Global Reset |
| Pixel Format | Mono 8/10/10Packed/12/12Packed/16 |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal reverse image output |
| Data Interface | 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. |
| Power Supply | 24 VDC |
| Lens Mount | F-mount, flange back length 46.5 mm |
| Dimension | 100 mm × 100 mm × 82 mm (3.9" × 3.9" × 3.2") |
| Weight | Approx. 1090 g (2.4 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | GigE Vision V2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 14.4 W @ 24 VDC (non-TEC mode) Typ. 27.6 W @ 24 VDC (TEC mode) |
