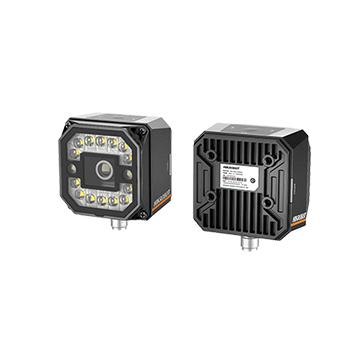

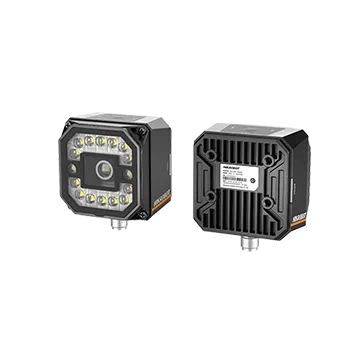

Compact Industrial Code Reader, 6mm focal length 1.3MP
Adopts built-in deep learning algorithm to read codes with good robustness.
Camera Solutions
Beschreibung
A global-shutter CMOS sensor delivers high-quality images. Multiple IO interfaces carry input and output signals. 14 LED lamps supply the light source. Polarised and non-polarised modes. Two LED aiming lamps for easy installation and code alignment. On-device indicators show status and code-reading results.
Product Highlights
A built-in deep-learning algorithm reads codes robustly. — A global-shutter CMOS sensor delivers high-quality images. — Multiple IO interfaces carry input and output signals. — 14 LED lamps supply the light source. — Polarised and non-polarised modes. — Two LED aiming lamps for easy installation and code alignment. — On-device indicators show status and code-reading results.
Specifications
| Product Model | MV-ID3013PM-06M-WBN |
|---|---|
| Type | Compact Industrial Code Reader, 6mm focal length 1.3MP |
| Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11 and Industrial 25 2-dimensional codes: QR Code, Data Matrix Stack codes: PDF 417 |
| Max Frame Rate | 60 fps |
| Max Reading Speed | 84 codes/sec |
| Sensor Type | CMOS, global shutter |
| Pixel Size | 4 μm × 4 μm |
| Sensor Size | 1/2.7" |
| Resolution | 1280 × 1024 |
| Exposure Time | 35 μs to 1 sec |
| Gain | 0 dB to 15 dB |
| Mono Color | Mono |
| Communication Protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP |
| Data Interface | Fast Ethernet |
| Digital I/O | 17-pin M12 connector provides power and I/O, including non-isolated input (LineIn 0/1/2) × 3, non-isolated output (LineOut 0/1/2) × 3, RS-232 input × 1, RS-232 output × 1. Device trigger via pressing button on top supported. |
| Power Supply | 24 VDC |
| Max Power Consumption | Approx. 20 W@24 VDC (light source enabled) |
| Focal Length | 6 mm (0.2") |
| Lens Mount | M12-mount, mechanical autofocus supported. |
| Light Source | White light by default. Red/blue/IR light is optional. |
| Indicator | Power indicator (PWR), network indicator (LNK), status indicator (STS), result indicator (OK/NG) |
| Dimension | 65.2 mm × 65.2 mm × 47 mm (2.6" × 2.6" × 1.9") |
| Weight | Approx. 280 g (0.6 lb.) |
| Ingress Protection | IP67 (under proper installation of waterproof lens cap) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Humidity | 20% to 95% RH, non-condensing |
| Client Software | IDMVS |
| Certification | CE, RoHS |
| Lens Cap | Half polarized front cover by default. Polarized and transparent ones are optional. |
