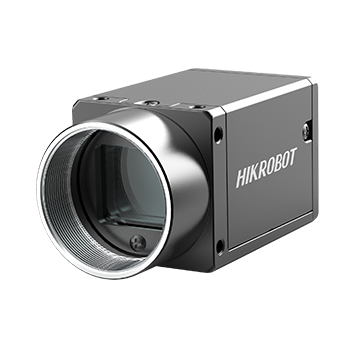

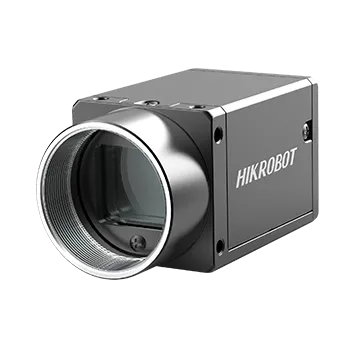

Area Scan Camera, 8.9MP, GigE, V5, Color
Compact design with mounting holes on panels for flexible mounting from 4 sides.
Camera Solutions
Beschreibung
Offers auto or manual gain and exposure, plus LUT and gamma correction. Supports LSC, Sequencer, and passive transmission. Colour functions including Bayer interpolation, white balance, CCM, Super Palette, and Super Bayer deliver high-quality images. Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Product Highlights
Compact body with panel mounting holes on four sides for flexible setup. — Offers auto or manual gain and exposure, plus LUT and gamma correction. — Supports LSC, Sequencer, and passive transmission. — Colour functions including Bayer interpolation, white balance, CCM, Super Palette, and Super Bayer deliver high-quality images. — Works with the GigE Vision V2.0 protocol, the GenICam standard, and any third-party software that supports them.
Specifications
| Product Model | MV-CH089-60GC V5 |
|---|---|
| Type | Area Scan Camera, 8.9MP, GigE, V5, Color |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Stacked BSI |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1" |
| Resolution | 4096 × 2160 |
| Max Frame Rate | 13.9 fps @ 4096 × 2160 Bayer GB 8 |
| Dynamic Range | 67.2 dB |
| SNR | 44.1 dB |
| Gain | 0 dB to 12 dB |
| Exposure Time | UltraShort exposure mode: 10 μs to 19 μs Standard exposure mode: 20 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode, supports TriggerWidth |
| Pixel Format | Mono 8, Bayer GB 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |

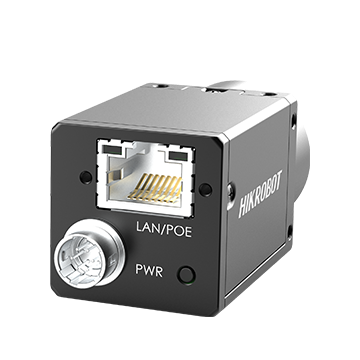

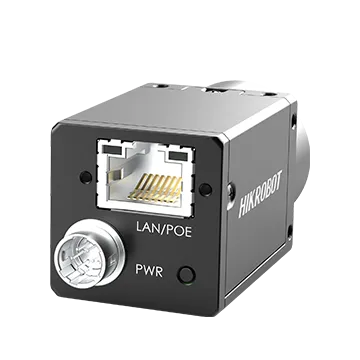

| Digital I/O | 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2) |
| Power Supply | 9 VDC to 24 VDC, supports PoE |
| Lens Mount | C-mount |
| Dimension | 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress Protection | IP 40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating System | 32/64-bit Windows 7/10/11, 32/64-bit Linux |
| Compatibility | GigE Vision 2.0, GenlCam |
| Certification | CE, RoHS, KC |
| Mono | Mono / Color |
| Power Consumption 2 | Typ. 1.8 W @ 12 VDC |
