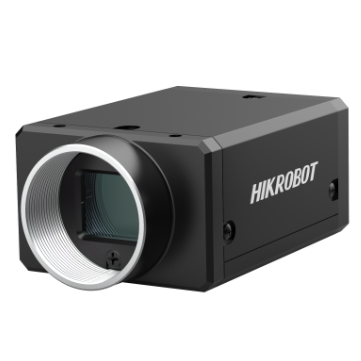

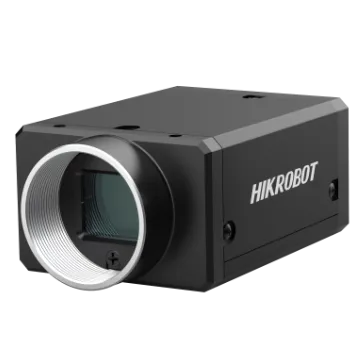

Area Scan Camera, 8.9MP, USB3, IMX267, Color
Supports auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Supports hardware triggering, software triggering, and free-run mode. M2 screw holes lock down the USB3.0 cable. Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Product Highlights
Offers auto and manual control of gain, exposure, LUT, and gamma correction. — Supports hardware triggering, software triggering, and free-run mode. — M2 screw holes lock down the USB3.0 cable. — Works with the USB3 Vision protocol, the GenICam standard, and compatible third-party software.
Specifications
| Product Model | MV-CH089-10UC |
|---|---|
| Type | Area Scan Camera, 8.9MP, USB3, IMX267, Color |
| Sensor Type | CMOS, global shutter |
| Sensor Model | Sony® IMX267 |
| Pixel Size | 3.45 μm × 3.45 μm |
| Sensor Size | 1" |
| Resolution | 4096 × 2160 |
| Max Frame Rate | 32 fps @ 4096 × 2160 Mono 8 32 fps @ 4096 × 2160 Bayer GR 8 |
| Dynamic Range | 72.5 dB |
| SNR | 40.1 dB |
| Gain | 0 dB to 20 dB |
| Exposure Time | UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec |
| Exposure Mode | Off/Once/Continuous exposure mode |
| Pixel Format | Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8 |
| Binning | Supports 1 × 1, 2 × 2, 4 × 4 |
| Decimation | Supports 1 × 1, 2 × 2, 4 × 4 |
| Reverse Image | Supports horizontal and vertical reverse image output |
| Data Interface | USB 3.0, compatible with USB 2.0 |

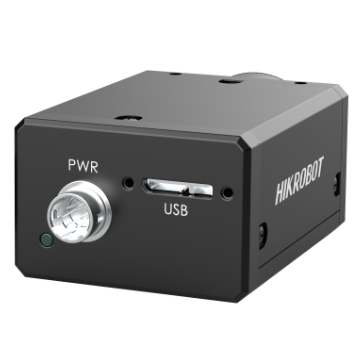

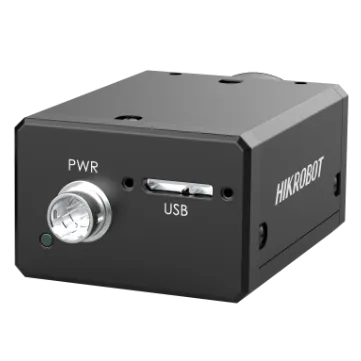

| Digital I/O | 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), and bi-directional non-isolated I/O × 1 (Line 2) |
| Power Supply | 12 VDC, supports USB 3.0 power supply |
| Lens Mount | C-mount |
| Dimension | 44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3") |
| Weight | Approx. 100 g (0.2 lb.) |
| Ingress Protection | IP30 (under proper lens installation and wiring) |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
| Humidity | 20% RH to 80% RH (no condensation) |
| Client Software | MVS or third-party software meeting with USB3.0 Vision Protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux |
| Compatibility | USB3 Vision, GenlCam |
| Certification | CE, RoHS, KC |
| Mono | Color |
| Power Consumption 2 | Typ. 3.27 W @ 5 VDC (USB 3.0 provides power supply) |
