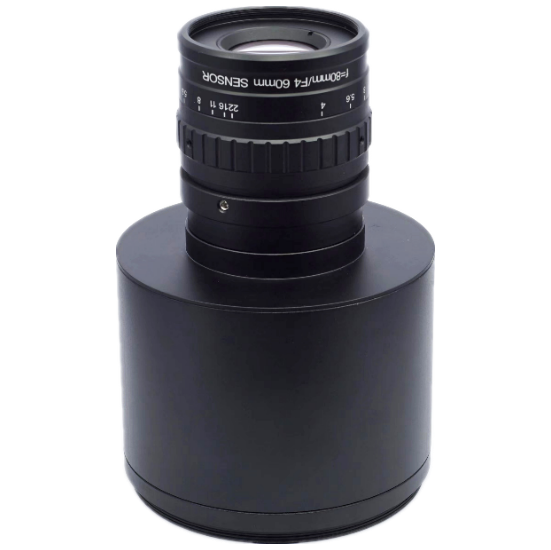

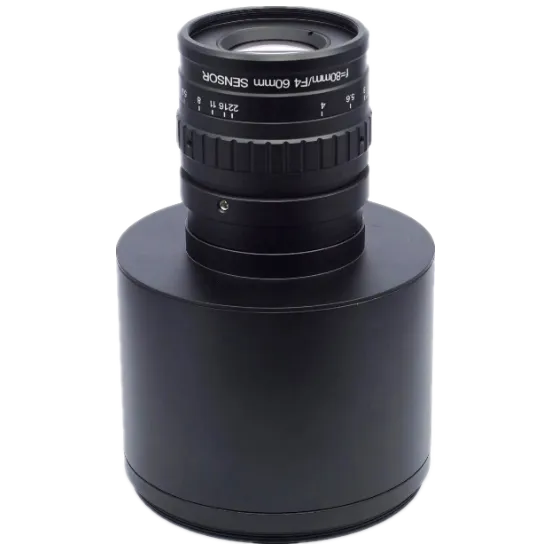

M72-Mount Lens, 80mm, F4.0, Image Size φ60mm, Recommended Magnification 0.12~0.31X
High precision lens for 8K7U line array cameras
- High-precision lens for 8K 7 µm line-scan cameras.
- Excellent image-sharpness consistency.
- Superior resolution at the maximum aperture of F4.
- Maximum image size Ø60 mm.
Camera Solutions
M72-Mount Lens, 80mm, F4.0, Image Size φ60mm, Recommended Magnification 0.12~0.31X is a machine vision lens from HIKROBOT, supplied in the DACH region by EQ Vision under article number MVL-LF8040M-021V-M72. Key data: focal length 80 mm, f number F4.0 to F22, mount M72 × P0.75, image size Ø60 mm. Typical use is imaging onto industrial camera sensors. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Excellent image-sharpness consistency. Superior resolution at the maximum aperture of F4. Maximum image size Ø60 mm.
Product Highlights
High-precision lens for 8K 7 µm line-scan cameras. — Excellent image-sharpness consistency. — Superior resolution at the maximum aperture of F4. — Maximum image size Ø60 mm.
Specifications
| Product Model | MVL-LF8040M-021V-M72 |
|---|---|
| Type | M72-Mount Lens, 80mm, F4.0, Image Size φ60mm, Recommended Magnification 0.12~0.31X |
| Focal Length | 80 mm |
| F Number | F4.0 to F22 |
| Image Size | Ø60 mm |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M39 × 0.5 |
| Mount | M72 × P0.75 |
| Flange Back Length | 12 mm |
| Dimension | Ø45 mm × 108.28 mm to 116.28 mm (Ø1.77'' × 4.26'' to 4.58'') |
| Weight | 321.2 g (0.708 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Optical Distortion | –0.11% |
| Magnification Range | 0.12x to 0.21x to 0.31x |
| Working Distance Range | 750 mm to 450 mm to 325 mm ± 9 mm |
