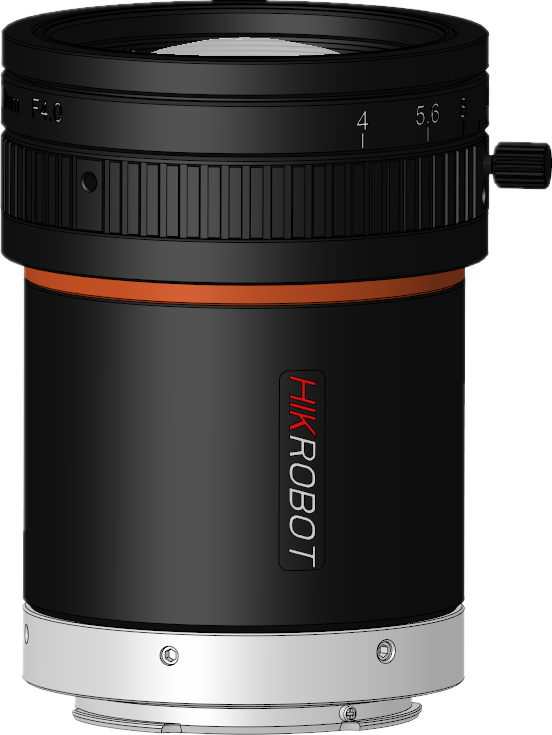

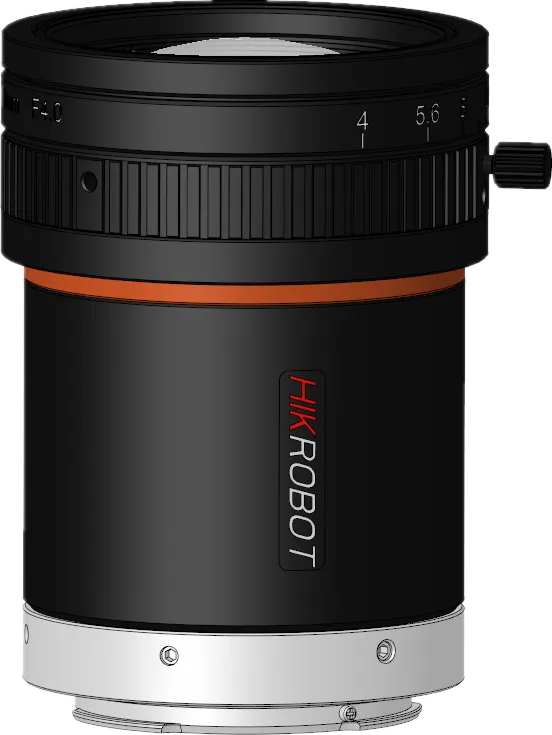

F-Mount Lens, 80mm, F4.0, Full Frame φ43.2mm, 100MP
Ultra-high central image clarity, up to 3.1µm resolution
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Low distortion and high relative illumination. Image size Ø56 mm; supports large-target area-scan cameras and 8K 5 µm, 8K 7 µm, and 16K 3.5 µm line-scan cameras. Optical design optimised for different magnifications.
Product Highlights
Ultra-high central image clarity with up to 3.1 µm resolution. — Low distortion and high relative illumination. — Image size Ø56 mm; supports large-target area-scan cameras and 8K 5 µm, 8K 7 µm, and 16K 3.5 µm line-scan cameras. — Optical design optimised for different magnifications.
Specifications
| Product Model | MVL-LF8040M-F |
|---|---|
| Type | F-Mount Lens, 80mm, F4.0, Full Frame φ43.2mm, 100MP |
| Focal Length | 80 mm |
| F Number | F4.0 to F22 |
| Image Size | Ø56 mm |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | M52 × 0.75 |
| Mount | F-moun |
| Flange Back Length | 46.5 mm |
| Dimension | Ø63 mm × 120.5 mm (Ø2.48'' × 44.74'') |
| Weight | 601.0 g (1.32 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
| Optical Distortion | 0.12% |
| Magnification Range | 0.4x to 0.01x |
| Working Distance Range | 235 mm to inf mm |
