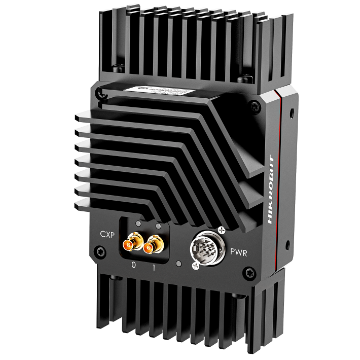

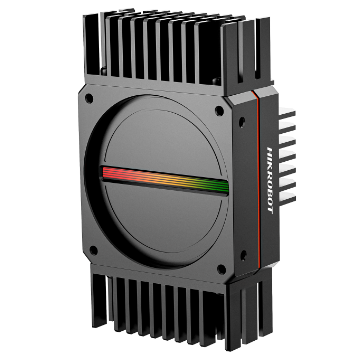

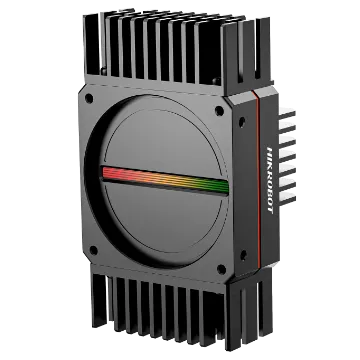

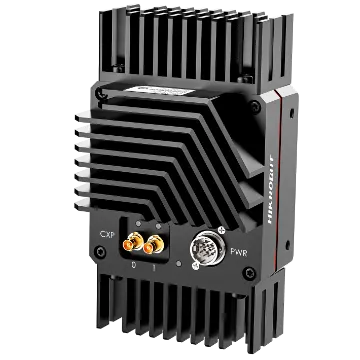

Line Scan Camera, 8k 7μm, CXP-10 2link, mono
Supports multi-light control, multi-exposure, TDI, etc.
- Multi-light control, multi-exposure, and TDI modes.
- ISP functions including gamma correction, flat-field correction, LUT, and black-level offset.
- Transmits data via CXP-10 interfaces.
- Multiple exposure and acquisition methods.
- Compact design for flexible installation.
Camera Solutions
Line Scan Camera, 8k 7μm, CXP-10 2link, mono is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CL084-91Y2M(V2.0). Key data: resolution 8192 ×4, sensor type CMOS, data interface CXP-10 with two Micro-BNC interfaces. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
ISP functions including gamma correction, flat-field correction, LUT, and black-level offset. Transmits data via CXP-10 interfaces. Multiple exposure and acquisition methods. Compact design for flexible installation.
Product Highlights
Multi-light control, multi-exposure, and TDI modes. — ISP functions including gamma correction, flat-field correction, LUT, and black-level offset. — Transmits data via CXP-10 interfaces. — Multiple exposure and acquisition methods. — Compact design for flexible installation.
Specifications
| Product Model | MV-CL084-91Y2M(V2.0) |
|---|---|
| Type | Line Scan Camera, 8k 7μm, CXP-10 2link, mono |
| Sensor Type | CMOS |
| Pixel Size | 7 μm × 7 μm |
| Resolution | 8192 ×4 |
| Dynamic Range | 63.4 dB |
| SNR | 40.8 dB |
| Gain | 1.0 × |
| Exposure Time | 3 μs to 10 ms |
| Exposure Mode | Off/Once/Continuous exposure mode, and supports trigger-width exposure |
| Pixel Format | Mono 8/10/12 |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal reverse image output |
| Data Interface | CXP-10 with two Micro-BNC interfaces |
| Digital I/O | 12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4), and single-ended/differential is supported. |
| Power Supply | 12 VDC to 24 VDC, CXP-0 and CXP-1 support PoCXP |
| Lens Mount | M72*0.75, flange back length 12 mm, applicable to F-mount lens via adapter ring |
| Dimension | 132 mm × 76 mm × 51.4 mm (5.2" × 3.0" × 2.0") |
| Weight | Approx. 520 g (1.1 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 50 °C (–4 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Client Software | MVS or other frame grabber softwares corresponding to CoaXPress protocol |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux |
| Compatibility | CoaXPress, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 15.5 W @ 24 VDC |
| Max Line Rate | 1-light mode: 200 kHz (1-Line), 100 kHz (2-TDI), 50 kHz (4-TDI) 2-light mode: 52 kHz (1-Line), 26 kHz (2-TDI) 3-light mode: 34.6 kHz (1-Line) 4-light mode: 26 kHz (1-Line) |
| Trigger Mode | External trigger, internal trigger |
| External Trigger Mode | Line trigger, frame trigger, line + frame trigger |
| Image Mode | Supports multi-light control: 1/2/3/4 light(s) Supports 1-Line, 2-TDI, and 4-TDI |
