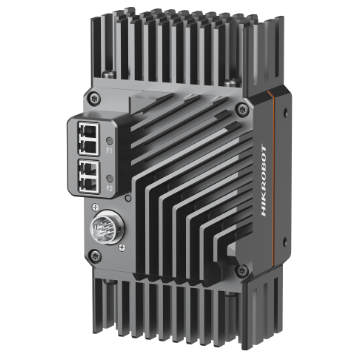

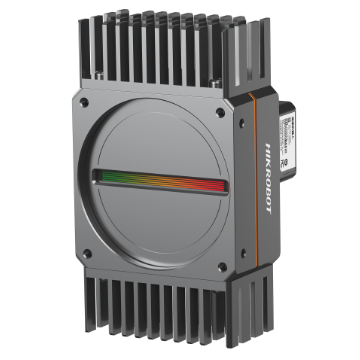

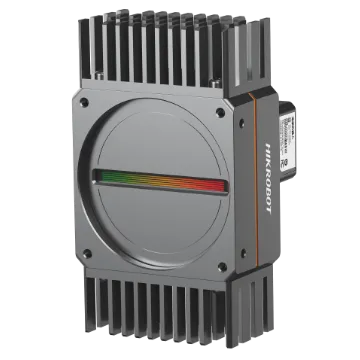

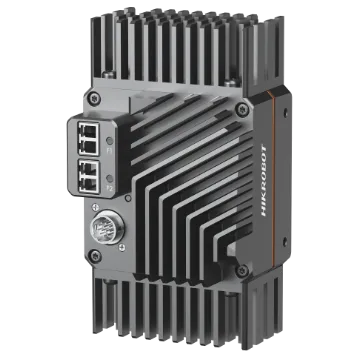

Line Scan Camera, 8K7 XoF 4-line(2 SFP+) mono
Supports multi-light control, multi-exposure, TDI, etc.
- Multi-light control, multi-exposure, and TDI modes.
- ISP functions including gamma correction and flat-field correction deliver high-quality images.
- Dual XoF fibre ports for high-speed data transfer.
- Bi-directional configurable I/O hardware design.
- Compact design for flexible installation.
Camera Solutions
Line Scan Camera, 8K7 XoF 4-line(2 SFP+) mono is a industrial camera from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-CL084-91F2M(2.0). Key data: resolution 8192 × 4, sensor type CMOS, data interface 2LC fiber connector. Typical use is automated inspection, measurement and robot guidance. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
ISP functions including gamma correction and flat-field correction deliver high-quality images. Dual XoF fibre ports for high-speed data transfer. Bi-directional configurable I/O hardware design. Compact design for flexible installation.
Product Highlights
Multi-light control, multi-exposure, and TDI modes. — ISP functions including gamma correction and flat-field correction deliver high-quality images. — Dual XoF fibre ports for high-speed data transfer. — Bi-directional configurable I/O hardware design. — Compact design for flexible installation.
Specifications
| Product Model | MV-CL084-91F2M(2.0) |
|---|---|
| Type | Line Scan Camera, 8K7 XoF 4-line(2 SFP+) mono |
| Sensor Type | CMOS |
| Pixel Size | 7 μm × 7 μm |
| Resolution | 8192 × 4 |
| Dynamic Range | 63.4 dB |
| SNR | 40.8 dB |
| Gain | 1.0 × |
| Exposure Time | 3 μs to 10 ms |
| Exposure Mode | Off/Once/Continuous exposure mode, and supports trigger-width exposure |
| Pixel Format | Mono 8/10/12 |
| Mono Color | Mono |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 |
| Reverse Image | Supports horizontal reverse image output |
| Data Interface | 2LC fiber connector |
| Digital I/O | 12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported. |
| Power Supply | 12 VDC to 24 VDC |
| Lens Mount | M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter |
| Dimension | 132 mm × 76 mm × 57.4 mm (5.2" × 3.0" × 2.3") |
| Weight | Approx. 600 g (1.3 lb.) |
| Ingress Protection | IP40 (under proper lens installation and wiring) |
| Temperature | Working temperature: –20 °C to 50 °C (–4 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 5% RH to 90% RH (no condensation) |
| Client Software | MVS |
| Operating System | 32/64-bit Windows 7/10, 64-bit Windows 11 |
| Compatibility | XoFLink, GenlCam |
| Certification | CE, RoHS, KC |
| Power Consumption 2 | Typ. 15.4 W @ 24 VDC |
| Max Line Rate | 1-light mode: 200 kHz (1-Line), 100 kHz (2-TDI), 50 kHz (4-TDI) 2-light mode: 52 kHz (1-Line), 26 kHz (2-TDI) 3-light mode: 34.6 kHz (1-Line) 4-light mode: 26 kHz (1-Line) |
| Trigger Mode | External trigger, internal trigger |
| External Trigger Mode | Line trigger, frame trigger, line + frame trigger |
| Image Mode | Supports multi-light control: 1/2/3/4 light(s) Supports 1-Line, 2-TDI, 4-TDI |
