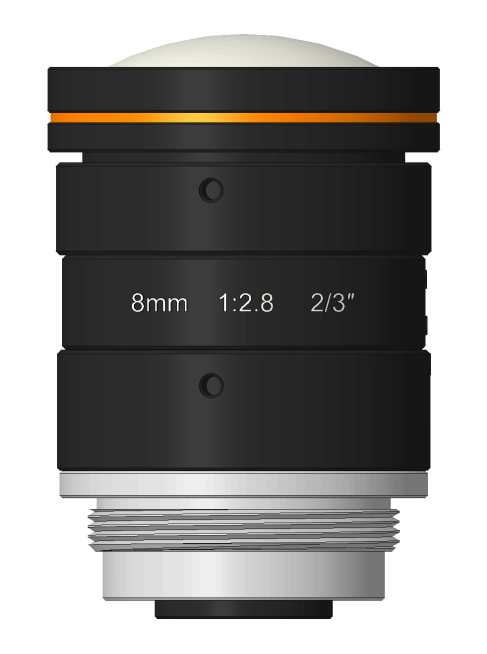

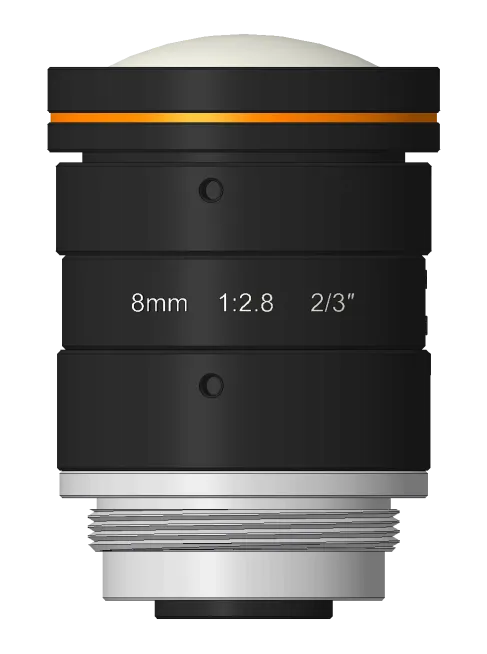

C-Mount Lens, 8mm, F2.8, 2/3″, 10MP
High resolution and consistency of image clarity
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Lower distortion and higher relative illumination. Excellent performance at both high and low temperatures. Good optical performance at short working distances.
Product Highlights
High resolution with consistent image clarity. — Lower distortion and higher relative illumination. — Excellent performance at both high and low temperatures. — Good optical performance at short working distances.
Specifications
| Product Model | MVL-MF0828M-10MPE |
|---|---|
| Type | C-Mount Lens, 8mm, F2.8, 2/3″, 10MP |
| Focal Length | 8 mm |
| F Number | F2.8 to F16 |
| Image Size | Ø11.2 mm (2/3") |
| Distortion | –0.42% |
| Minimum Object Distance | 0.1 m |
| Field Of View | D (11.01 mm): 67.07° H (8.45 mm): 54.06° V (7.07 mm): 46.21° |
| Iris Control | Manual |
| Focus Control | Manual |
| Filter Thread | / |
| Mount | C-mount |
| Flange Back Length | 17.526 mm |
| Dimension | Ø32 mm × 37.48 mm to 40.41 mm (Ø1.3" × 1.5" to 1.6") |
| Weight | 70 g (0.2 lb.) |
| Temperature | –10 °C to 50 °C (14 °F to 122 °F) |
| Certification | RoHS 2.0 |
