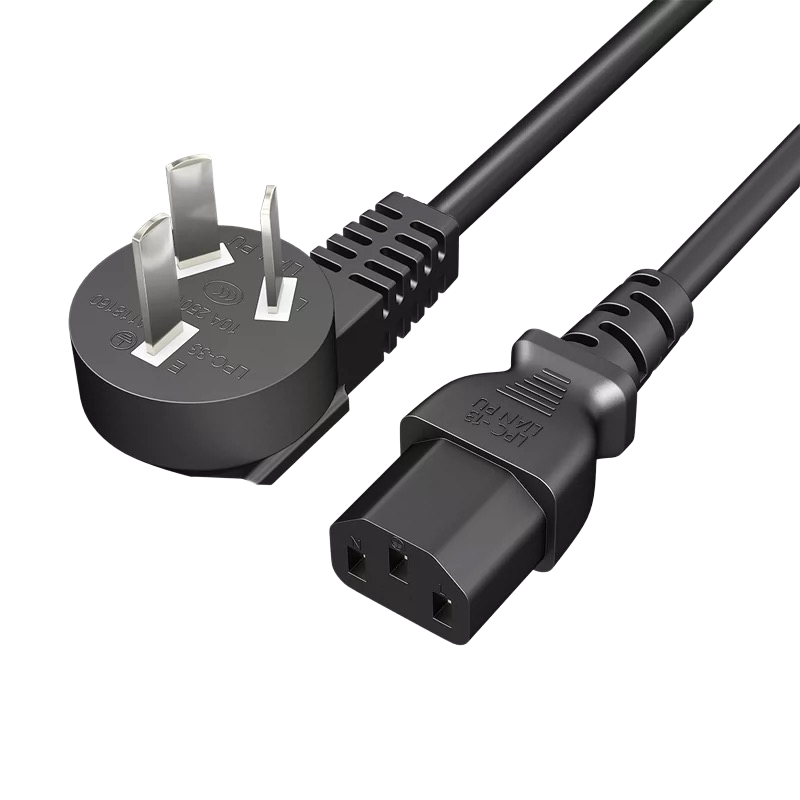

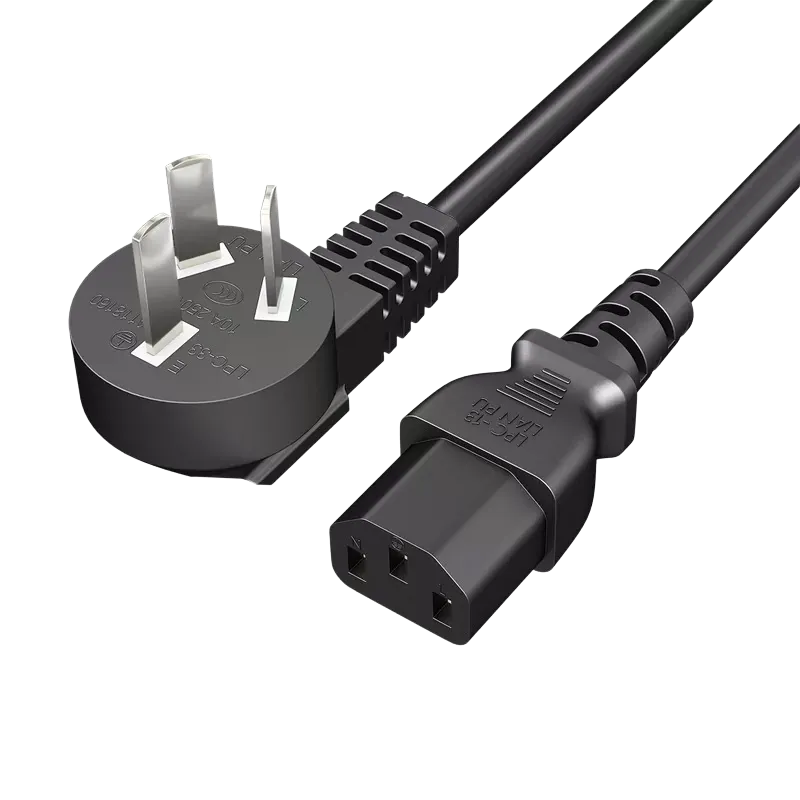

AC Power Cable, E3p (GBP) to C13 plug, 1.5 m
The AC power cables can be used to provide AC power to the device with the power adapter, and is available in a variety of specifications.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Product Highlights
AC power cables supply power via the included adapter and are available in multiple specifications.
Specifications
| Product Model | AC power cables_GBP_E3p_C13_1.5m |
|---|---|
| Type | AC Power Cable, E3p (GBP) to C13 plug, 1.5 m |
| End A Connector | E3p (GBP) |
| End B Connector | C13 plug |
| Cable Diameter | 6.6 mm |
| Length | 1.5 m |
| Cable Mechanical | H05VV-F 3G0.75mm2 |
| Jacket | PVC |
| Cable Color | Black |
| Connector Durability | 3,000 cycles |
| Applicable Scenario | Static scenes |
| Max Voltage | 250 VAC |
| Working Temperature | –20°C to 70°C (–4 °F to 158 °F) |
| Certification | BSI |
| Packaging | Individual package |
| Max 90 Bending Cycles | -- |
| Max 45 Bending Cycles | 10 thousand times |
| Max 60 Bending Cycles | -- |
| Max Current | 10 A |
