AC Power Cable, E3p (IND) to C13 plug, 1.5 m
The AC power cables can be used to provide AC power to the device with the power adapter, and is available in a variety of specifications.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
AC Power Cable, E3p (IND) to C13 plug, 1.5 m is a vision component from HIKROBOT, supplied in the DACH region by EQ Vision under article number AC power cables_IND_E3p_C13_1.5m. Key data: certification BIS. Typical use is connecting and powering machine vision systems. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- AC Power Cable, S3p (ARG) to C13 plug, 1.5 m (AC power cables_ARG_S3p_C13_1.5m)
- AC Power Cable, S3p (BRA) to C13 plug, 1.5 m (AC power cables_BRA_S3p_C13_1.5m)
- AC Power Cable, E2p (EUR) to C13 plug, 1.5 m (AC power cables_EUR_E2p_C13_1.5)
- AC Power Cable, E3p (GBP) to C13 plug, 1.5 m (AC power cables_GBP_E3p_C13_1.5m)
- AC Power Cable, E3p (ISR) to C13 plug, 1.5 m (AC power cables_ISR_E3p_C13_1.5m)
- AC Power Cable, S3p (ITA) to C13 plug, 1.5 m (AC power cables_ITA_S3p_C13_1.5m)
- AC Power Cable, S2p (JPN) to C13 plug, 1.5 m (AC power cables_JPN_S2p_C13_1.5m)
- AC Power Cable, S2p (KOR) to C13 plug, 1.5 m (AC power cables_KOR_S2p_C13_1.5m)
Product Highlights
AC power cables supply power via the included adapter and are available in multiple specifications.
Specifications
| Product Model | AC power cables_IND_E3p_C13_1.5m |
|---|---|
| Type | AC Power Cable, E3p (IND) to C13 plug, 1.5 m |
| End A Connector | E3p (IND) |
| End B Connector | C13 plug |
| Cable Diameter | 6.9 mm |
| Length | 1.5 m |
| Cable Mechanical | IS694 3X0.75mm2 |
| Jacket | PVC |
| Cable Color | Black |
| Connector Durability | 3,000 cycles |
| Applicable Scenario | Static scenes |
| Max Voltage | 250 VAC |
| Working Temperature | –20°C to 70°C (–4 °F to 158 °F) |
| Certification | BIS |
| Packaging | Individual package |
| Max 90 Bending Cycles | -- |
| Max 45 Bending Cycles | 10 thousand times |
| Max 60 Bending Cycles | -- |
| Max Current | 10 A |
Related products
-
USB3.0 Cable, Micro-B male (with screw), Angle (down) to A male, 0.5 m
MV-ACU3-MBMs(down)-AM-ST-0.5m -

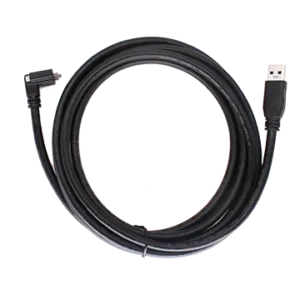

USB3.0 Cable, Micro-B male (with screw), Angle (down) to A male, 2 m
