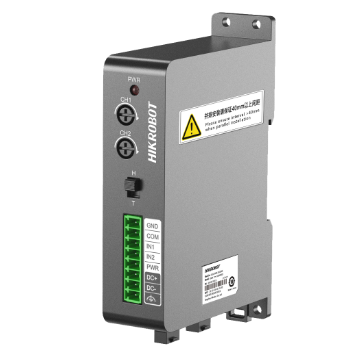

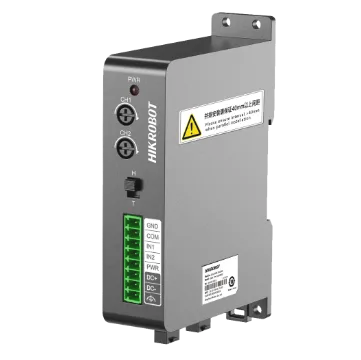

Analog Light Controller，2 channel， 24W/24V
Adopts constant voltage control and supports infinitely variable brightness.
- Constant-voltage control with continuously variable brightness.
- Knob control on the panel with plug-and-play setup.
- Multi-channel opto-isolated inputs.
- Mounts via slide rail or screw holes.
- Protects against overcurrent, overload, and short circuits.
Camera Solutions
Analog Light Controller, 2 channel, 24W/24V is a machine vision light from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-LE100-24W24-2. Typical use is creating stable, repeatable illumination. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Analog Light Controller, 4 channel, 120W/24V (MV-LE100-120W24-4)
- Analog Light Controller, 2 channel, 200W/24V (MV-LE100-200W24-2BD)
- Analog Light Controller, 2 channel, 48W/24V (MV-LE100-48W24-2)
- Analog Light Controller, 1 channel, 500W/24V (MV-LE100-500W24-1ED)
- Analog Light Controller, 4 channel, 60W/24V (MV-LE100-60W24-4D)
Description
Knob control on the panel with plug-and-play setup. Multi-channel opto-isolated inputs. Mounts via slide rail or screw holes. Protects against overcurrent, overload, and short circuits.
Product Highlights
Constant-voltage control with continuously variable brightness. — Knob control on the panel with plug-and-play setup. — Multi-channel opto-isolated inputs. — Mounts via slide rail or screw holes. — Protects against overcurrent, overload, and short circuits.
Specifications
| Product Model | MV-LE100-24W24-2 |
|---|---|
| Type | Analog Light Controller，2 channel， 24W/24V |
| Dimension | 24 mm × 70 mm × 106 mm (0.9" × 2.8" × 4.2") |
| Weight | Approx. 162 g (0.4 lb.) |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Dimming Mode | Control panel (knob) |
| Trigger Mode | External trigger |
| Output Current For Each Channel | Max. 0.5 A |
| Channel | 2-channel |
| Power Supply Interface | 3.5 mm × 2 terminal block |
| Digital I/O | Opto-isolated input × 2 |
| Shell Material | Plastic |
| Ingress Protection | IP30 |
| Certification | CE, KC |
