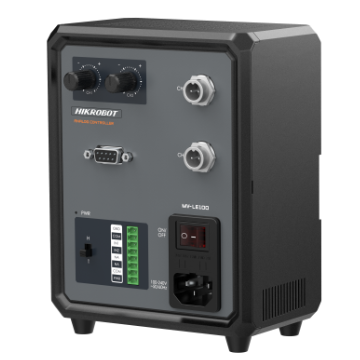

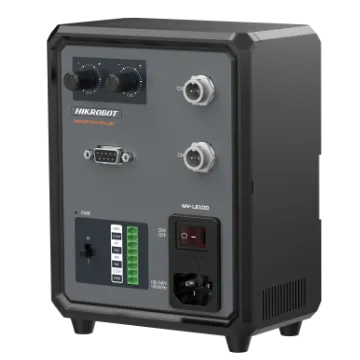

Analog Light Controller，2 channel，200W/24V
Adopts constant voltage control and supports infinitely variable brightness.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Knob control on the panel with plug-and-play setup. Multi-channel opto-isolated inputs. Mounts via slide rail or screw holes. Protects against overcurrent, overload, and short circuits.
Product Highlights
Constant-voltage control with continuously variable brightness. — Knob control on the panel with plug-and-play setup. — Multi-channel opto-isolated inputs. — Mounts via slide rail or screw holes. — Protects against overcurrent, overload, and short circuits.
Specifications
| Product Model | MV-LE100-200W24-2BD |
|---|---|
| Type | Analog Light Controller，2 channel，200W/24V |
| Dimension | 130 mm × 92.9 mm × 169.5 mm (5.1" × 3.7" × 6.7") |
| Weight | Approx. 820 g (1.8 lb.) |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Dimming Mode | Control panel (knob), software (serial port) |
| Trigger Mode | External trigger |
| Output Current For Each Channel | Max. 6 A |
| Channel | 2-channel |
| Power Supply Interface | C13 220 VAC interface |
| Digital I/O | Opto-isolated input × 2 |
| Shell Material | Plastic |
| Ingress Protection | IP30 |
| Certification | CE, KC |
