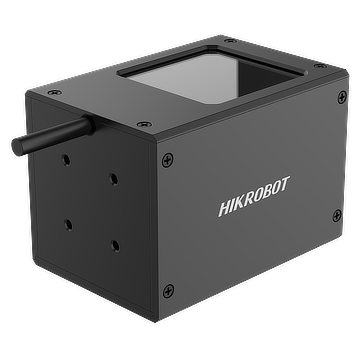

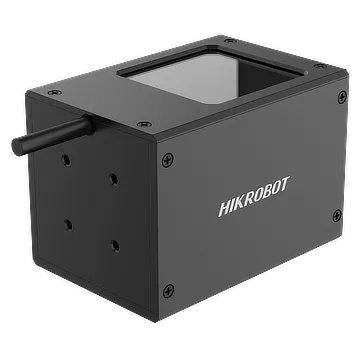

Coaxial lighting，50*50，blue color
Features special beam splitter design and improved light efficiency.
Highlights
- Beam-splitter design improves light efficiency.
- Efficient heat dissipation extends service life.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
Coaxial lighting, 50*50, blue color is a machine vision light from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-LCDS-H-50-50-B. Key data: emitting area dimension 50 mm × 50 mm, color Blue, power 7 W. Typical use is creating stable, repeatable illumination. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Coaxial lighting, 30*30, white color (MV-LCDS-H-30-30-W)
- Coaxial lighting, 40*40, blue color (MV-LCDS-H-40-40-B)
- Coaxial lighting, 40*40, red color (MV-LCDS-H-40-40-R)
- Coaxial lighting, 40*40, white color (MV-LCDS-H-40-40-W)
- Coaxial lighting, 50*50, red color (MV-LCDS-H-50-50-R)
- Coaxial lighting, 50*50, white color (MV-LCDS-H-50-50-W)
- Coaxial lighting, 60*60, blue color (MV-LCDS-H-60-60-B)
- Coaxial lighting, 60*60, red color (MV-LCDS-H-60-60-R)
Description
Efficient heat dissipation extends service life.
Coaxial lighting，50*50，blue color (MV-LCDS-H-50-50-B) at a glance: Blue light, 465 nm wavelength, 7 W power, 50 mm × 50 mm emitting area, 79 mm × 59.7 mm × 56 mm outer dimensions, SMR-03V-B connector, 1 m cable and weighs 250 g. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.
Product Highlights
Beam-splitter design improves light efficiency. — Efficient heat dissipation extends service life.
Specifications
| Product Model | MV-LCDS-H-50-50-B |
|---|---|
| Type | Coaxial lighting，50*50，blue color |
| Color | Blue |
| Wavelength | 465 nm |
| Color Temperature | / |
| Power | 7 W |
| Connector Type | SMR-03V-B |
| Dimension | 79 mm × 59.7 mm × 56 mm |
| Weight | 250 g |
| Cable Length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse Plate Included | Included |
| Emitting Area Dimension | 50 mm × 50 mm |
| Safety Class | RG1 |
| Safety Distance | 0.50 m |
