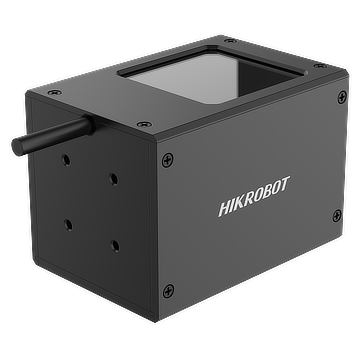

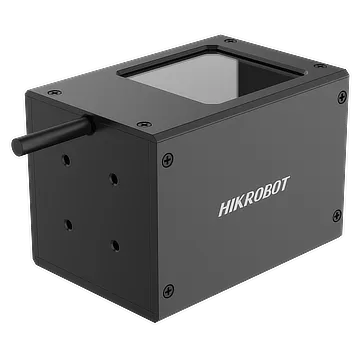

Coaxial lighting，40*40，red color
Features special beam splitter design and improved light efficiency.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Efficient heat dissipation extends service life.
Product Highlights
Beam-splitter design improves light efficiency. — Efficient heat dissipation extends service life.
Specifications
| Product Model | MV-LCDS-H-40-40-R |
|---|---|
| Type | Coaxial lighting，40*40，red color |
| Color | Red |
| Wavelength | 625 nm |
| Color Temperature | / |
| Power | 4.1 W |
| Connector Type | SMR-03V-B |
| Dimension | 69 mm × 45.7 mm × 46 mm |
| Weight | 167 g |
| Cable Length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse Plate Included | Included |
| Emitting Area Dimension | 40 mm × 40 mm |
| Safety Class | No danger |
| Safety Distance | / |
