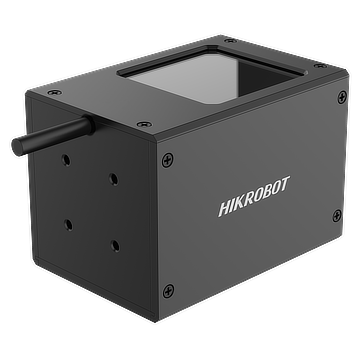

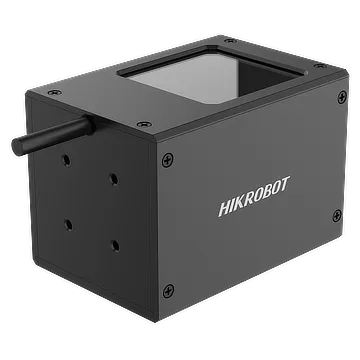

Coaxial lighting，60*60，white color
Features special beam splitter design and improved light efficiency.
Highlights
- Beam-splitter design improves light efficiency.
- Efficient heat dissipation extends service life.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
Coaxial lighting, 60*60, white color is a machine vision light from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-LCDS-H-60-60-W. Key data: emitting area dimension 60 mm × 60 mm, color White, power 9.6 W. Typical use is creating stable, repeatable illumination. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
- Coaxial lighting, 40*40, white color (MV-LCDS-H-40-40-W)
- Coaxial lighting, 50*50, blue color (MV-LCDS-H-50-50-B)
- Coaxial lighting, 50*50, red color (MV-LCDS-H-50-50-R)
- Coaxial lighting, 50*50, white color (MV-LCDS-H-50-50-W)
- Coaxial lighting, 60*60, blue color (MV-LCDS-H-60-60-B)
- Coaxial lighting, 60*60, red color (MV-LCDS-H-60-60-R)
- Coaxial lighting, 70*70, IR850 (MV-LCDS-H-70-70-IR850)
- Coaxial lighting, 70*70, white color (MV-LCDS-H-70-70-W)
Description
Efficient heat dissipation extends service life.
Coaxial lighting，60*60，white color (MV-LCDS-H-60-60-W) at a glance: White light, 9.6 W power, 60 mm × 60 mm emitting area, 89 mm × 67.3 mm × 66 mm outer dimensions, SMR-03V-B connector, 1 m cable and weighs 320 g. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.
Product Highlights
Beam-splitter design improves light efficiency. — Efficient heat dissipation extends service life.
Specifications
| Product Model | MV-LCDS-H-60-60-W |
|---|---|
| Type | Coaxial lighting，60*60，white color |
| Color | White |
| Wavelength | / |
| Color Temperature | 6000K to 7000K |
| Power | 9.6 W |
| Connector Type | SMR-03V-B |
| Dimension | 89 mm × 67.3 mm × 66 mm |
| Weight | 320 g |
| Cable Length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse Plate Included | Included |
| Emitting Area Dimension | 60 mm × 60 mm |
| Safety Class | No danger |
| Safety Distance | / |
