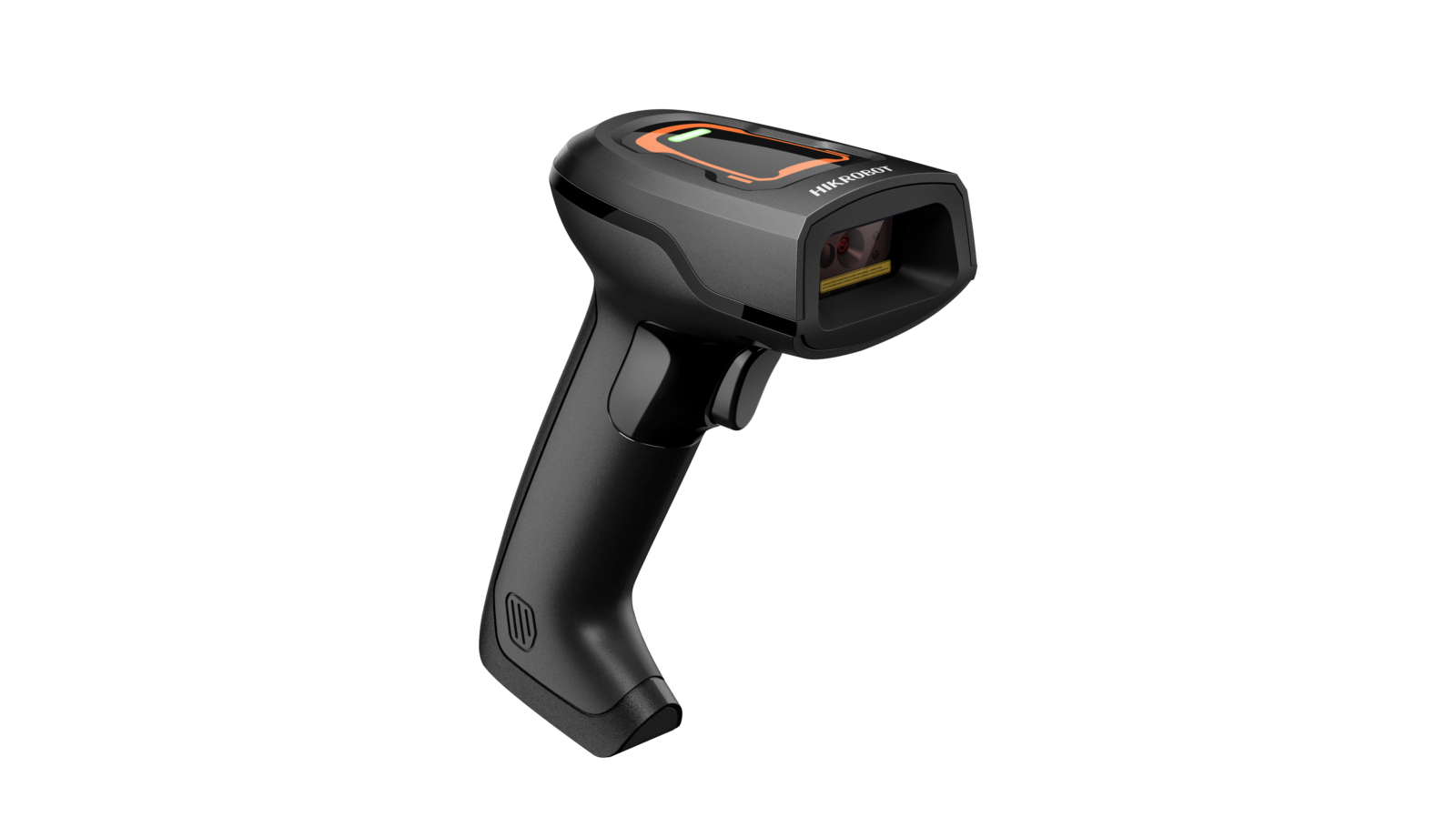

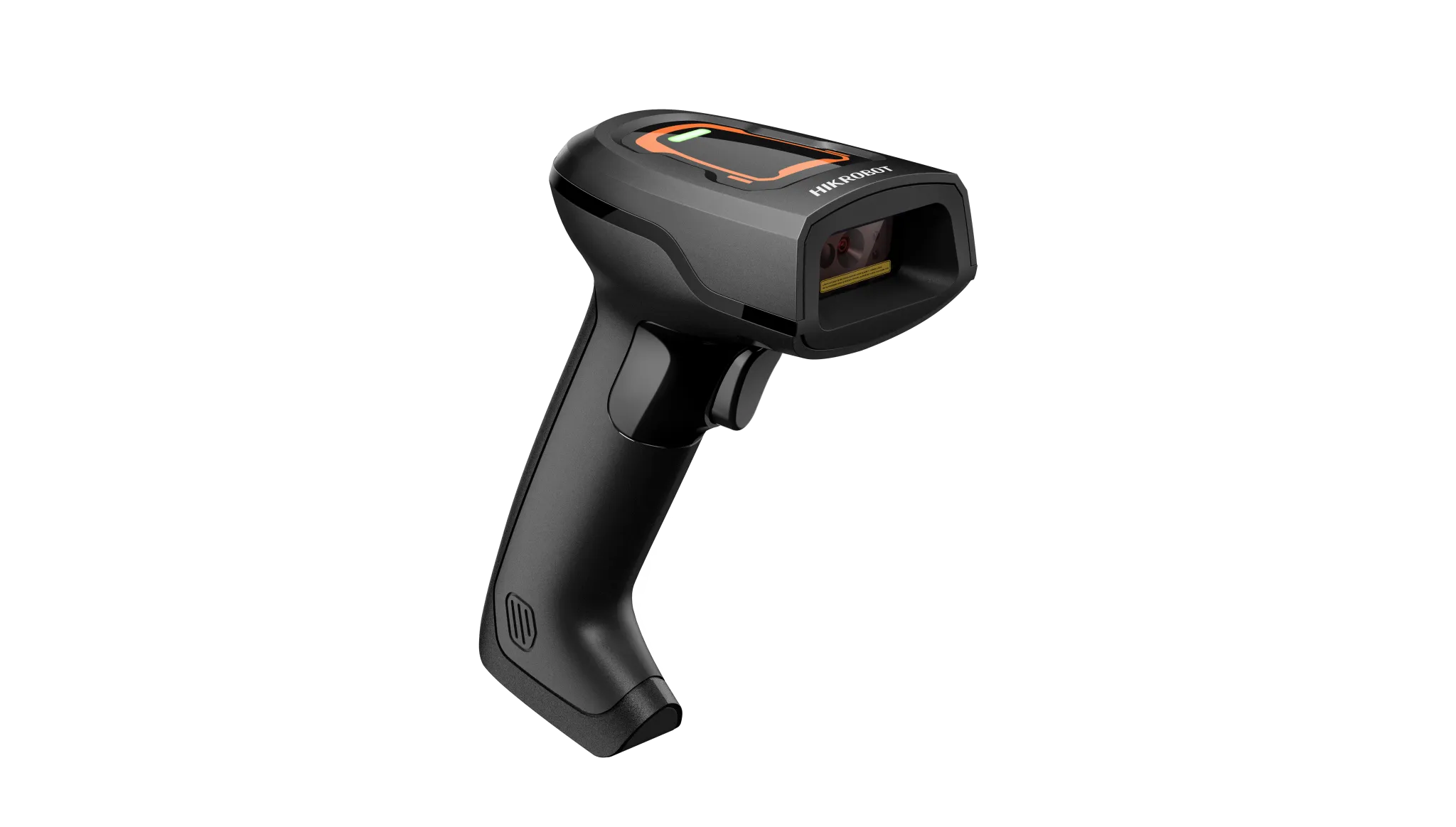

Compact wireless Industial Handheld Code Reader
Built-in code reading algorithm for decoding different types of 1D codes and 2D codes.
- A built-in algorithm decodes a range of 1D and 2D codes.
- Reads reliably even with spots, defects, or low contrast.
- Continuous and batch reading modes raise throughput.
- 2.4 GHz wireless communication with a stable, reliable signal.
- A 2700 mAh battery gives long standby time.
- Rated IP52 and survives a 1.5 m drop.
Camera Solutions
Compact wireless Industial Handheld Code Reader is a handheld code reader from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-IDH2000RF/13NR/05WN. Key data: min accuracy 1D codes: 2 mil 2D codes: 4 mil, ingress protection Code reader: IP52 Smart base: IP40, battery 2700 mAh, chargeable lithium battery. Typical use is manual scanning in production, warehouse and service. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Reads reliably even with spots, defects, or low contrast. Continuous and batch reading modes raise throughput. 2.4 GHz wireless communication with a stable, reliable signal. A 2700 mAh battery gives long standby time. Rated IP52 and survives a 1.5 m drop.
Product Highlights
A built-in algorithm decodes a range of 1D and 2D codes. — Reads reliably even with spots, defects, or low contrast. — Continuous and batch reading modes raise throughput. — 2.4 GHz wireless communication with a stable, reliable signal. — A 2700 mAh battery gives long standby time. — Rated IP52 and survives a 1.5 m drop.
Specifications
| Product Model | MV-IDH2000RF/13NR/05WN |
|---|---|
| Type | Compact wireless Industial Handheld Code Reader |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec, Han Xin Stacked codes: PDF417 |
| Min Accuracy | 1D codes: 2 mil 2D codes: 4 mil |
| Sensor Type | CMOS, global shutter |
| Resolution | 1280 × 1024 |
| Depth Of Field | Code 128 (3 mil): 30 mm to 110 mm Code 128 (10 mil): 20 mm to 205 mm Data Matrix (5 mil): 40 mm to 85 mm QR Code (10 mil): 20 mm to 140 mm QR Code (20 mil): 20 mm to 200 mm |
| Field Of View | Horizontal 39°, vertical 29° |
| Detection Angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Symbol Contrast | 20% |
| Communication Protocol | SmartSDK, USB, 2.4 G |
| Data Interface | Code reader: USB 2.0 (Type B) Smart base: USB 2.0 (Type B), USB 2.0 (Type A) |
| Power Supply | 5 VDC |
| Focal Length | 4.9 mm |
| Ambient Illumination | 0 lux to 100000 lux |
| Light Source | White LED |
| Aiming System | Cross laser aiming |
| Prompt | LED indicator, buzzer |
| Dimension | Code reader: 66.5 mm × 94 mm × 169.5 mm (2.6" × 3.7" × 6.7") Smart base: 82.6 mm × 121.8 mm × 76.1 mm (3.3" × 4.8" × 3.0") |
| Weight | Code reader: Approx. 160 g (0.4 lb.) Smart base: Approx. 120 g (0.3 lb.) |
| Ingress Protection | Code reader: IP52 Smart base: IP40 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Humidity | 5% RH to 95% RH (no condensation) |
| Laser Safety Class | Laser 2 |
| Wavelength | 650 nm |
| Pulse Width | 8 ms |
| Maximum Power | 1 mW |
| Client Software | IDMVS |
| Certification | CE, KC |
| Wireless Range | 80 m (open range) |
| Battery | 2700 mAh, chargeable lithium battery |
| Charging Time | 6 h |
| Endurance | 12 h (interval scanning, once in 2 seconds) |
| Max Frame Rate | 50 fps |
| Pixel Size | 2.7 μm × 2.7 μm |
| Sensor Size | 1/4" |
| Radio Frequency | 2.4 G |
| Max Power Consumption | 6 W @ 5 VDC |
| Lens Mount | M5.0-mount |
| Beam Divergence Angle | 14.5° |
| Repetitive Frequency | 50 Hz |
