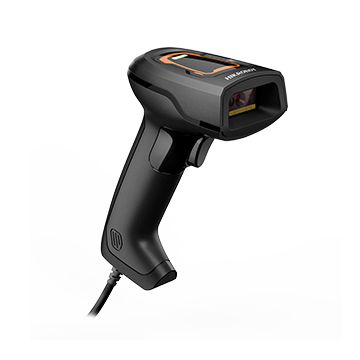

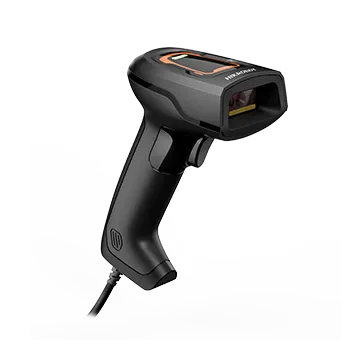

Compact Industrial Wired Handheld Code Reader（USB）

Name: Compact Industrial Wired Handheld Code Reader (USB)
Brand: HIKROBOT
SKU: MV-IDH2000/13SR/05WP/U/PM

Built-in code reading algorithm for decoding different types of 1D codes and 2D codes.

Send inquiry

Download datasheet (PDF)

Highlights

A built-in algorithm decodes a range of 1D and 2D codes.
Reads reliably even with spots, defects, or low contrast.
Multiple output modes including USB-HID, USB-CDC, and RS-232.
Components are easy to replace.
Rated IP42 and survives a 1.8 m drop.
Buzzer and indicator display device status.

Not found what you are looking for?

Markus Berger

Sales & Business Development Manager
Camera Solutions

markus.berger@eqphotonics.de Send inquiry

SKU: MV-IDH2000/13SR/05WP/U/PM Category: Handheld Code Reader

Compact Industrial Wired Handheld Code Reader（USB） is a handheld code reader from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-IDH2000/13SR/05WP/U/PM. Key data: ingress protection IP42. Typical use is manual scanning in production, warehouse and service. Send us the article number with your application and we will confirm availability, datasheet and integration details.

Further variants in this product family

Description

Description

Reads reliably even with spots, defects, or low contrast. Multiple output modes including USB-HID, USB-CDC, and RS-232. Components are easy to replace. Rated IP42 and survives a 1.8 m drop. Buzzer and indicator display device status.

Compact Industrial Wired Handheld Code Reader（USB） (MV-IDH2000/13SR/05WP/U/PM) at a glance: 640 × 480 resolution, IP42 protection and weighs 160 g (0.4 lb.). The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.

Product Highlights

A built-in algorithm decodes a range of 1D and 2D codes. — Reads reliably even with spots, defects, or low contrast. — Multiple output modes including USB-HID, USB-CDC, and RS-232. — Components are easy to replace. — Rated IP42 and survives a 1.8 m drop. — Buzzer and indicator display device status.

Specifications

Product Model	MV-IDH2000/13SR/05WP/U/PM
Type	Compact Industrial Wired Handheld Code Reader（USB）
Symbologies	1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec Stacked code: PDF417
Min Accuracy	4 mil 1D codes: 3 mil 2D codes: 4 mil 1D codes: 3 mil 2D codes: 5 mil 1D codes: 4 mil 2D codes: 5 mil
Sensor Type	CMOS
Resolution	640 × 480 1280 × 1024
Depth Of Field	EAN 13 (13 mil): 30 mm to 240 mm Code 39 (5 mil): 50 mm to 100 mm Code 128 (10 mil): 30 mm to 240 mm Data Matrix (10 mil): 40 mm to 130 mm QR Code (15 mil): 15 mm to 205 mm Code 128 (3 mil): 30 mm to 110 mm Code 128 (10 mil): 20 mm to 205 mm Data Matrix (5 mil): 40 mm to 85 mm QR Code (10 mil): 20 mm to 140 mm QR Code (20 mil): 20 mm to 200 mm Code 128 (3 mil): 70 mm to 160 mm Code 128 (10 mil): 30 mm to 440 mm QR Code (10 mil): 45 mm to 235 mm QR Code (15 mil): 20 mm to 360 mm QR Code (20 mil): 20 mm to 460 mm Code 39 (5 mil): 45 mm to 175 mm Code 128 (10 mil): 10 mm to 415 mm QR Code (10 mil): 35 mm to 220 mm QR Code (15 mil): 10 mm to 350 mm QR Code (20 mil): 10 mm to 415 mm
Field Of View	Horizontal 42°, vertical 32° Horizontal 39°, vertical 29° Horizontal 47°, vertical 39°
Detection Angle	Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° Tilt angle ± 65°, skew angle ± 65°, rotation angle 360°
Symbol Contrast	20%
Communication Protocol	SmartSDK, Serial, USB (HID/CDC)
Data Interface	USB 2.0
Power Supply	5 VDC
Current Consumption	0.9 A (max.), 0.5 A (typical)
Focal Length	3.1 mm 4.9 mm 3.9 mm
Ambient Illumination	0 lux to 100000 lux
Light Source	White LED
Aiming System	Orange LED Cross laser aiming
Prompt	LED indicator, buzzer, vibrator
Dimension	66.5 mm × 94 mm × 169.5 mm (2.6" × 3.7" × 6.7")
Weight	Approx. 160 g (0.4 lb.)
Ingress Protection	IP42
Temperature	Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity	5% RH to 95% RH (no condensation)
Laser Safety Class	Laser 2
Wavelength	650 nm
Pulse Width	8 ms
Maximum Power	1 mW
Client Software	IDMVS
Certification	CE, KC
