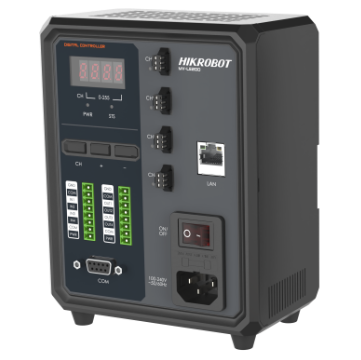

Digital Light Controller，4 channel，120W/24V
Supports different control modes of light source, including control panel and software.
- Light-source control via front panel or software.
- Serial port or network interface for parameter setting and device management.
- Multiple I/O interfaces for external triggering.
- Mounts via slide rail or screw holes.
- Protects against overcurrent, overload, and short circuits.
Camera Solutions
Digital Light Controller, 4 channel, 120W/24V is a machine vision light from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-LE200-120W24-4TD. Key data: input voltage 100 VAC to 240 VAC, 50 Hz/60 Hz. Typical use is creating stable, repeatable illumination. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Serial port or network interface for parameter setting and device management. Multiple I/O interfaces for external triggering. Mounts via slide rail or screw holes. Protects against overcurrent, overload, and short circuits.
Product Highlights
Light-source control via front panel or software. — Serial port or network interface for parameter setting and device management. — Multiple I/O interfaces for external triggering. — Mounts via slide rail or screw holes. — Protects against overcurrent, overload, and short circuits.
Specifications
| Product Model | MV-LE200-120W24-4TD |
|---|---|
| Type | Digital Light Controller，4 channel，120W/24V |
| Dimension | 130 mm × 83.8 mm × 169.5 mm (5.1" × 3.3" × 6.7") |
| Weight | Approx. 733 g (1.6 lb.) |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: -20 °C to 60 °C (-4 °F to 140 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Input Voltage | 100 VAC to 240 VAC, 50 Hz/60 Hz |
| Cooling Mode | Fan cooling |
| Dimming Mode | Control panel (via pressing button), software (serial port or network interface) |
| Trigger Mode | External trigger and internal trigger |
| Output Current For Each Channel | Max. 3 A |
| Channel | 4-channel |
| Power Supply Interface | C13 220 VAC interface |
| Digital I/O | Opto-isolated input × 4, opto-isolated output × 4 |
| Shell Material | Plastic |
| Ingress Protection | IP30 |
| Certification | CE, KC |
| Drive Mode | Digital, constant voltage |
| Lighting Mode | Continuous, strobe |
| PWM Frequency | 125 kHz |
| Strobe Overdrive | Not support |
| Brightness Level | 0 to 255 |
| Lighting Response Time | < 10 μs |
| Communication Protocol | UDP, Serial |
| Applicable Product | Ring light, bar light, flat light, coaxial light, etc. |
| Input Current | 2.1 A (115 VAC), 1.2 A (230 VAC) |
| Output Voltage | 24 VDC |
| Output Current | Max. 5 A |
| Output Power | Max. 120 W |
| Trigger In | High level 4.5 VDC to 24 VDC, low level 0 VDC to 2 VDC |
| Trigger Out | High level 10 VDC to 24 VDC, low level 0 VDC to 2 VDC |
| Console Interface | RJ45 network interface, DB9F serial port |
| Lighting Output Connector | SMR-03V-BC |
