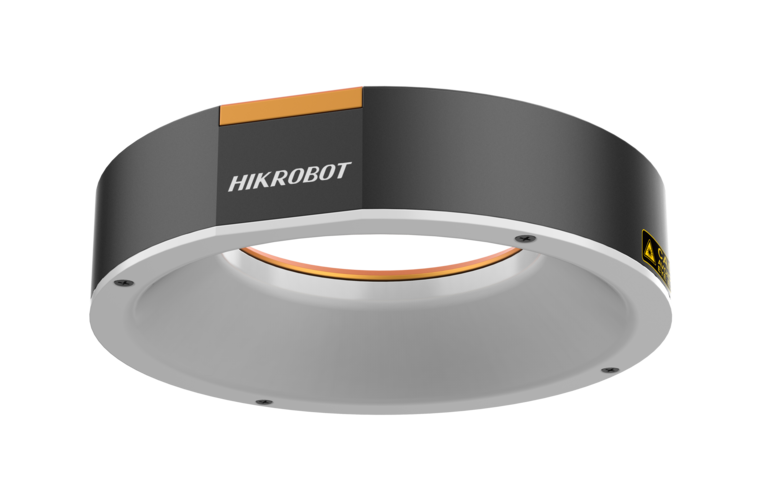

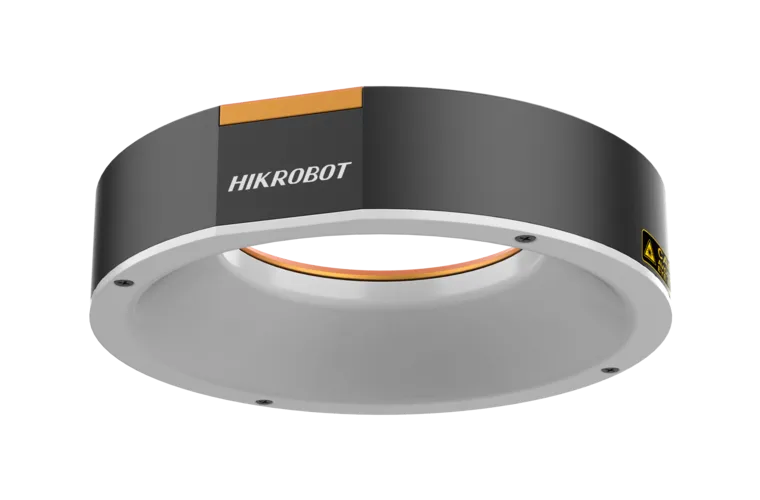

Multi-Angle Ring Light MV-LRSS-H-250-W
Provides high uniformity illumination.
Highlights
- High-uniformity illumination.
- Available in various outer-diameter sizes.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
Multi-Angle Ring Light MV-LRSS-H-250-W is a machine vision light from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-LRSS-H-250-W. Key data: color White, power 26.2 W. Typical use is creating stable, repeatable illumination. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Available in various outer-diameter sizes.
Multi-Angle Ring Light MV-LRSS-H-250-W (MV-LRSS-H-250-W) at a glance: White light, 26.2 W power, Φ250 mm × 34 mm outer dimensions, SMR-03V-B connector, 1 m cable and weighs 763 g. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.
Product Highlights
High-uniformity illumination. — Available in various outer-diameter sizes.
Specifications
| Product Model | MV-LRSS-H-250-W |
|---|---|
| Type | MV-LRSS-H-250-W |
| Color | White |
| Center Illuminance | ≥20000 Lux@WD=100 mm |
| Best Working Distance | 60~120 mm |
| Wavelength | / |
| Color Temperature | 6000 ~ 7000K |
| Power | 26.2 W |
| Connector Type | SMR-03V-B |
| Dimension | Φ250 mm × 34 mm |
| Bore Dimension | Φ190 mm |
| Emitting Area Length | Φ236 mm |
| LED Rows | 1 |
| Weight | 763 g |
| Cable Length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Diffuse Plate Included | PMMA |
