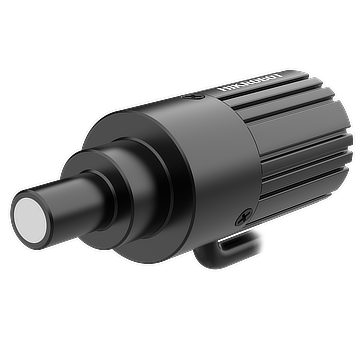

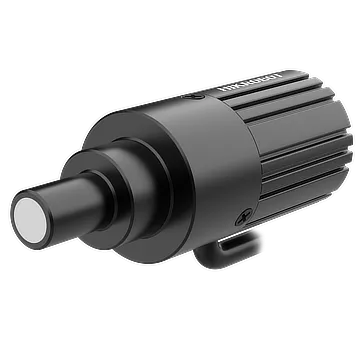

Dot lighting，standard，blue
The light outlet adopts efficient light-guiding design and highlight LED.
Highlights
- Efficient light-guide design and high-brightness LED at the light outlet.
- Compact, high-dissipation design.
- Compatible with telecentric-series lenses.
Not found what you are looking for?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Send inquiry
Camera Solutions
Dot lighting, standard, blue is a machine vision light from HIKROBOT, supplied in the DACH region by EQ Vision under article number MV-LDSS-H-8-3-B. Key data: color Blue, power 2.1 W. Typical use is creating stable, repeatable illumination. Send us the article number with your application and we will confirm availability, datasheet and integration details.
Further variants in this product family
Description
Compact, high-dissipation design. Compatible with telecentric-series lenses.
Dot lighting，standard，blue (MV-LDSS-H-8-3-B) at a glance: Blue light, 465 ~ 475 nm wavelength, 2.1 W power, 59 mm × Ø24 mm outer dimensions, SMR-03V-B connector, 1 m cable and weighs 75 g. The complete specification table is on this page; use the inquiry button for pricing, availability and application advice from EQ Vision.
Product Highlights
Efficient light-guide design and high-brightness LED at the light outlet. — Compact, high-dissipation design. — Compatible with telecentric-series lenses.
Specifications
| Product Model | MV-LDSS-H-8-3-B |
|---|---|
| Type | Dot lighting，standard，blue |
| Color | Blue |
| Best Working Distance | 65 ~ 200 mm |
| Wavelength | 465 ~ 475 nm |
| Color Temperature | / |
| Power | 2.1 W |
| Connector Type | SMR-03V-B |
| Dimension | 59 mm × Ø24 mm |
| Weight | 75 g |
| Cable Length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Safety Class | RG2 |
| Safety Distance | 0.55 m |
| Center Illuminance Irradiance | > 4K lux@WD=100 mm |
| Optical Outlet Diameter | Ø8 mm |
