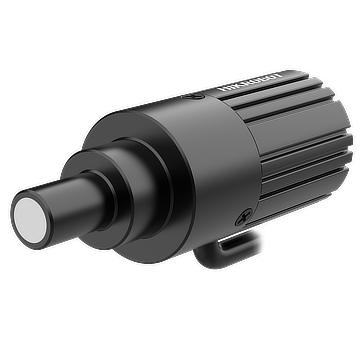

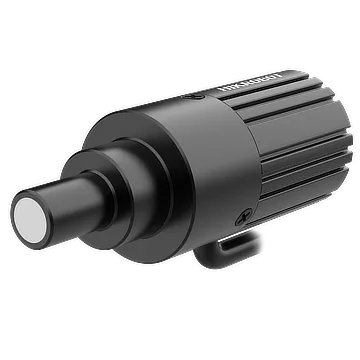

Dot lighting，standard，white
The light outlet adopts efficient light-guiding design and highlight LED.
Nicht gefunden was Sie suchen?
Markus Berger
Sales & Business Development Manager
Camera Solutions
markus.berger@eqphotonics.de
Anfrage stellen
Camera Solutions
Beschreibung
Compact, high-dissipation design. Compatible with telecentric-series lenses.
Product Highlights
Efficient light-guide design and high-brightness LED at the light outlet. — Compact, high-dissipation design. — Compatible with telecentric-series lenses.
Specifications
| Product Model | MV-LDSS-H-8-3-W |
|---|---|
| Type | Dot lighting，standard，white |
| Color | White |
| Best Working Distance | 65 ~ 200 mm |
| Wavelength | / |
| Color Temperature | 6000 ~ 7000K |
| Power | 2 W |
| Connector Type | SMR-03V-B |
| Dimension | 59 mm × Ø24 mm |
| Weight | 75 g |
| Cable Length | 1 m |
| Temperature | Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 20% RH to 90% RH (no condensation) |
| Safety Class | RG1 |
| Safety Distance | 0.45 m |
| Center Illuminance Irradiance | > 20K lux@WD=100 mm |
| Optical Outlet Diameter | Ø8 mm |
